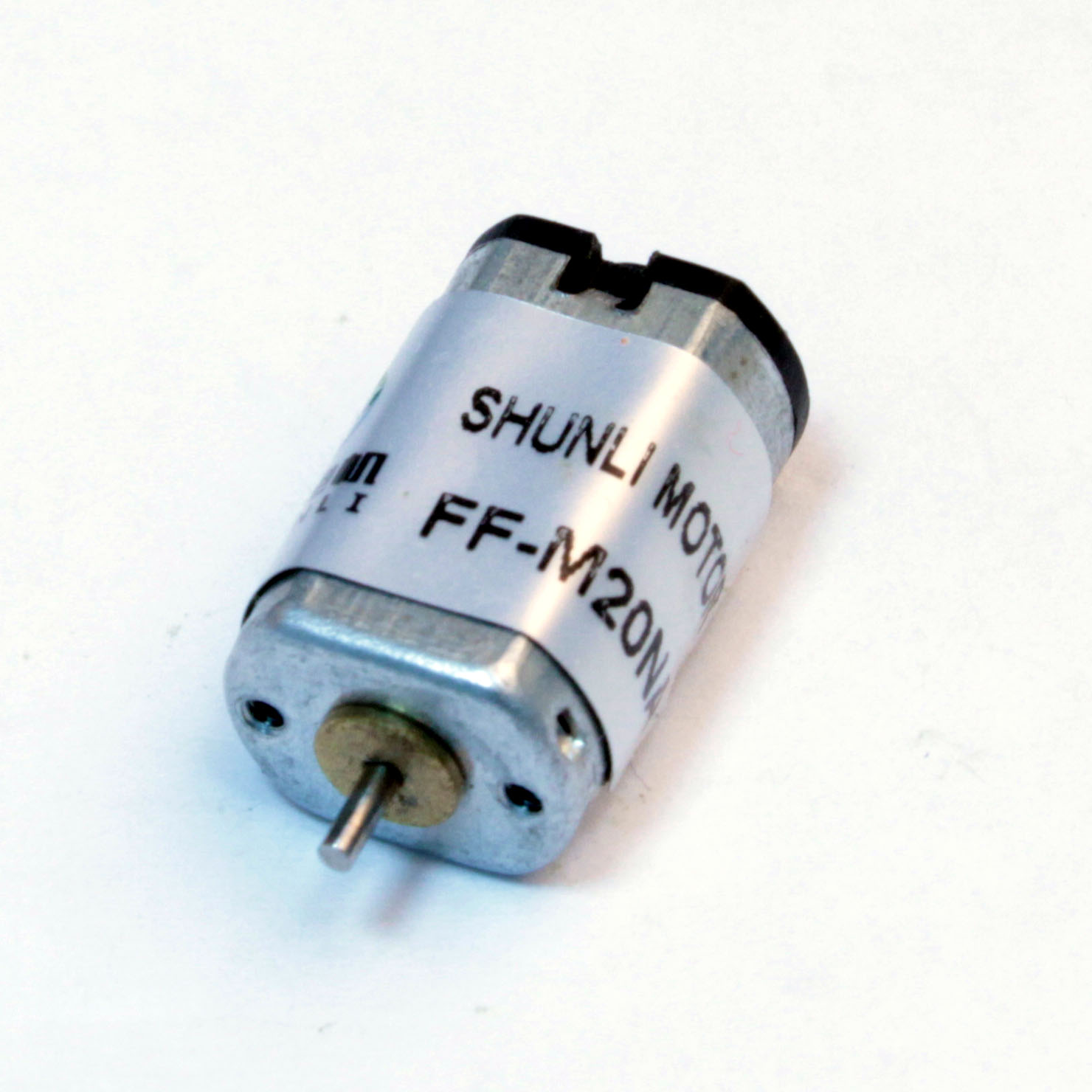

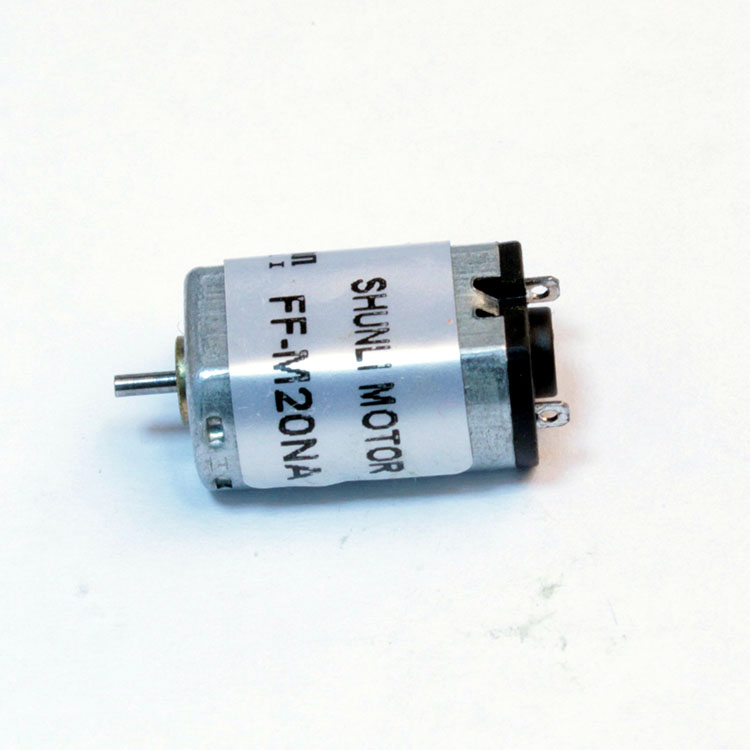

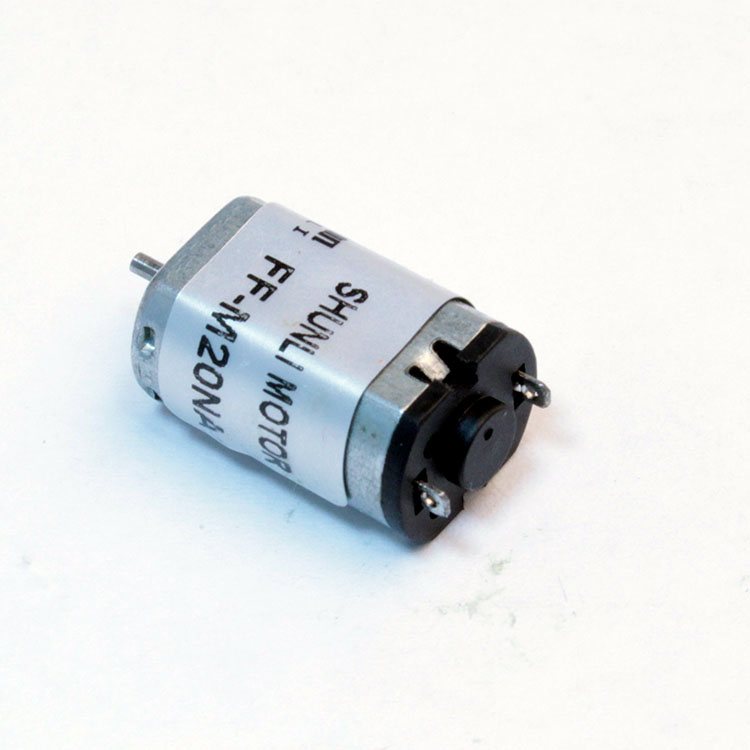

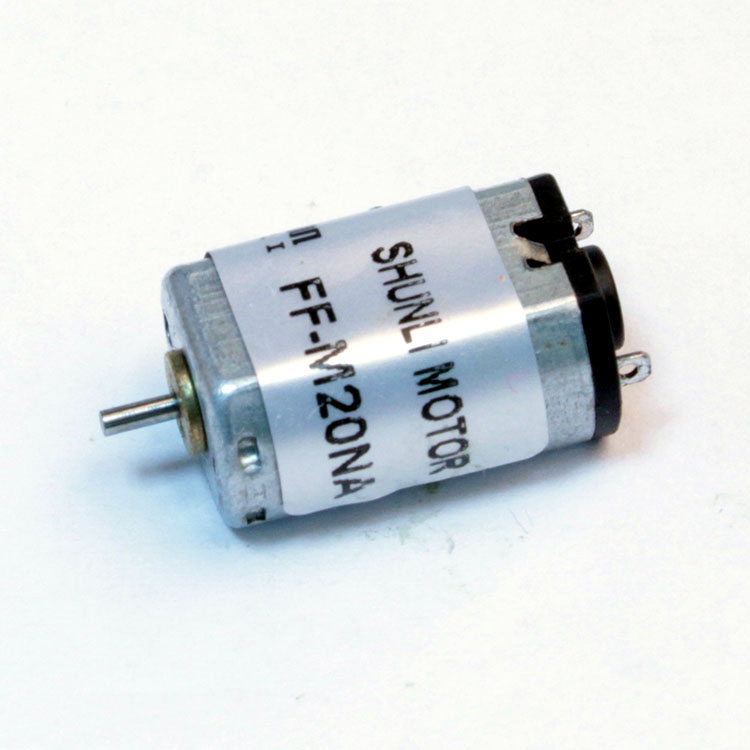

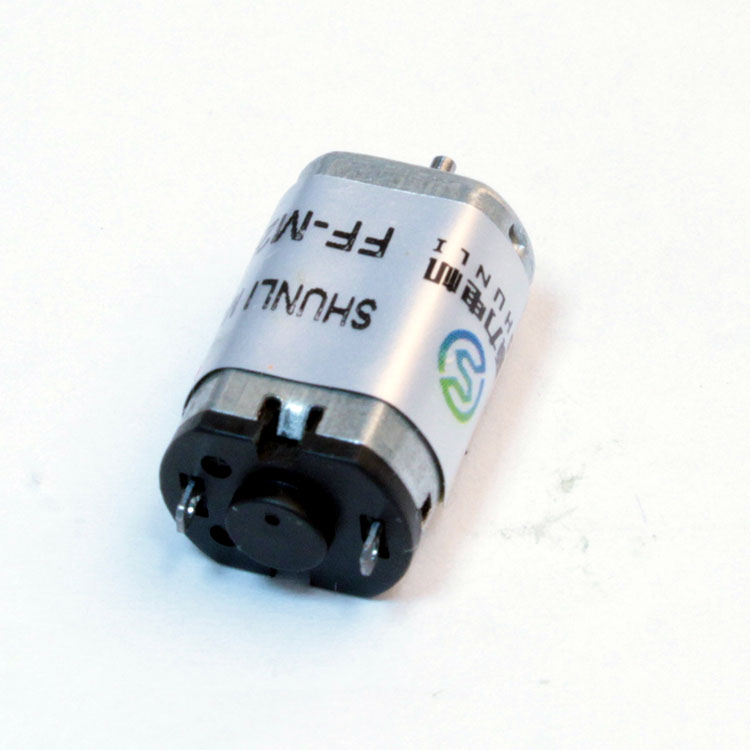

Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Product Description
Small Electric Motor M20 DC Motor 1.5V 3V Micro DC Motor
Promotion
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||
| FF-M20VA | 8130 | 2.0~3.0 | 3VDC | 15200 | 45 | 11800 | 160 | 0.16/1.6 | 0.19 | 550 | 0.69/7 |
| 7170 | 1.5-3.0 | 2VDC | 8000 | 25 | 6000 | 75 | 0.09/0.9 | 0.06 | 230 | 0.35/3.6 | |
| 10100 | 1.5~4.0 | 2.8VDC | 18000 | 50 | 14800 | 190 | 0.2/2 | 0.3 | 880 | 1.1/11 | |
Click on the tilt font to know more parameters!
Application
Our Company
Production Process
Certifications
Dozens of advanced production equipment and testing instruments from Germany, Japan, Switzerland and other countries have been introduced to strictly control the quality of each motor.
FAQ
Q1Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor more than 14 years.
Q2What is the payment term for new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Mater Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q3I can't find suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q4Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
Q5How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q6What are the nominal voltage options available for the M20 DC motor?
The M20 DC motor is available in nominal voltage options including 2VDC, 2.8VDC, and 3VDC depending on the specific model specifications.
