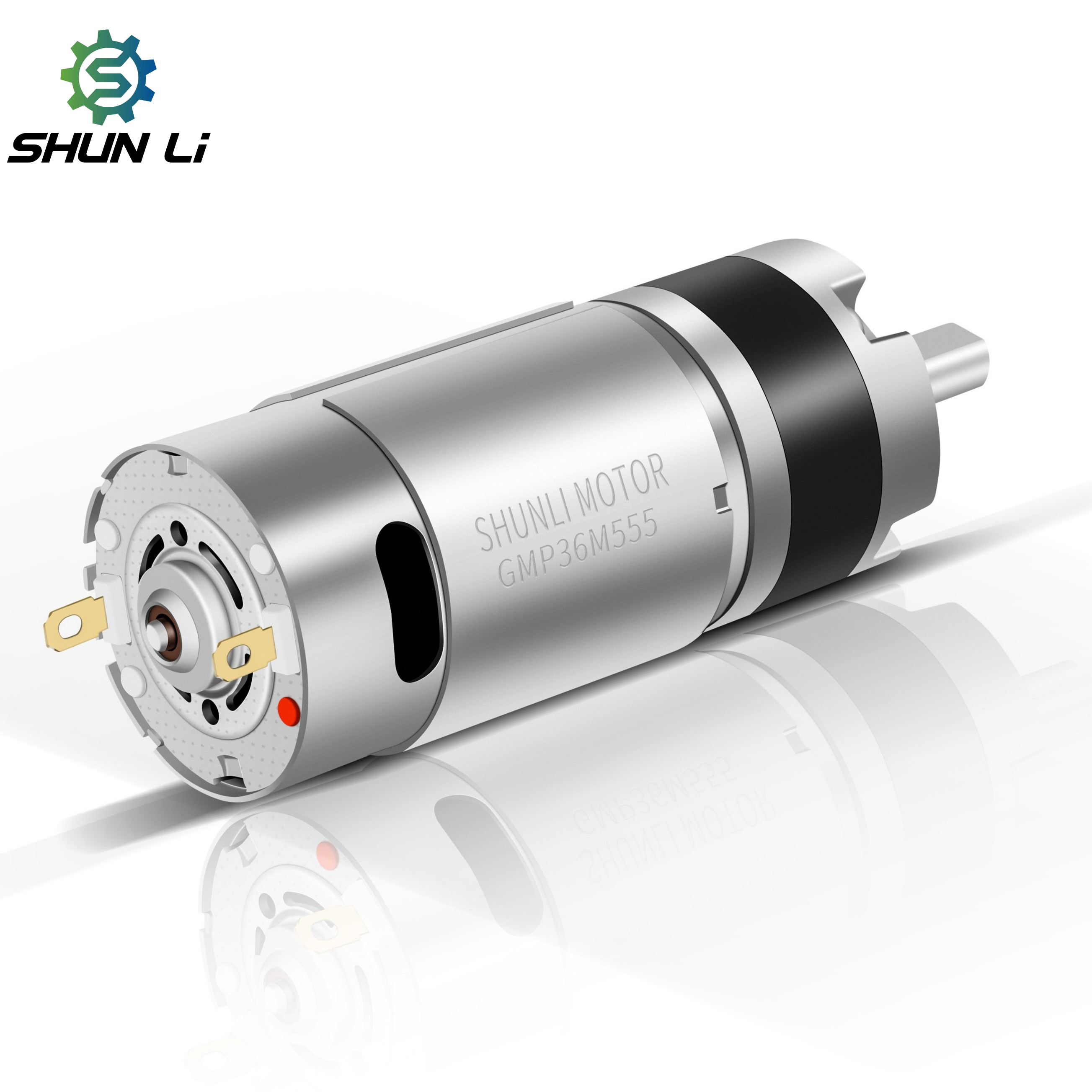

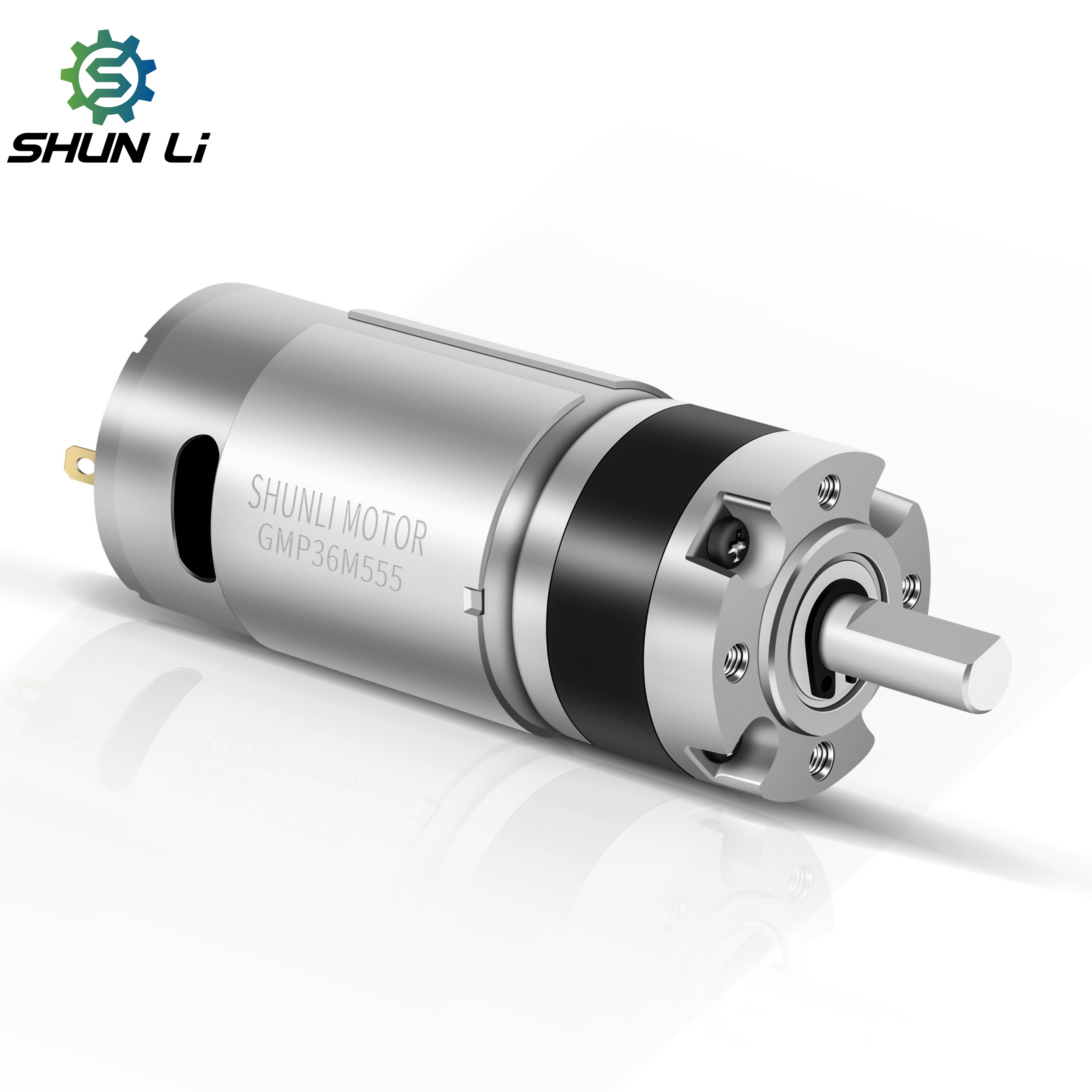

12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
Product Description

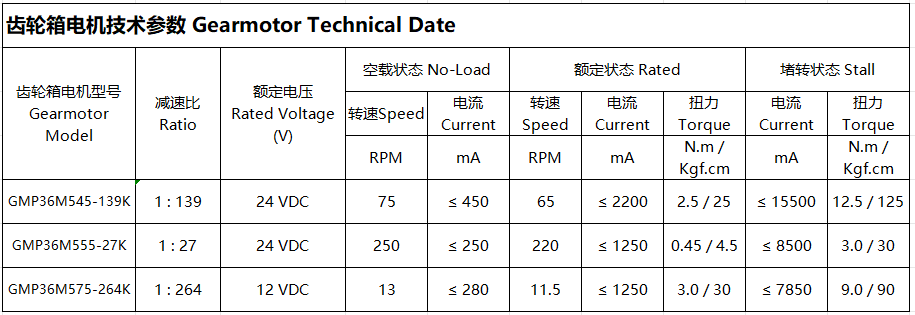

| Product Model | GMP36M545/555/575 |
| Gearbox Length | 26MM~54MM |
| Speed | 11.5 RPM-250RPM |
| Voltage | 24V/24V/12V |
| Torque | 2.5 N.m/0.45 N.m/3.0 N.m |
| Support customization | The Transmission Dimensions And Motor Parameters Can Be Customized |
Frequently Asked Questions
Q
Are you trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors with extensive manufacturing experience.
Q
What is the payment term for a new customer?
We can draw up an Online Assurance Order, which allows online payments with Master Card, Visa, etc. Customers can also choose to pay with PayPal or TT.
Q
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific technical requirements, dimensions, and parameters.
Q
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you have other specific certificate requirements, we can apply for them.
Q
How is your Quality Control?
We have professional inspection staff on every production line process. Once a motor is completed, we use complete testing machinery—including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers—to verify performance.
Q
What details should I provide to get a customized motor solution?
To customize a motor, please provide essential parameters such as rated voltage, speed, torque, load, gearbox length, and physical dimension restrictions.
