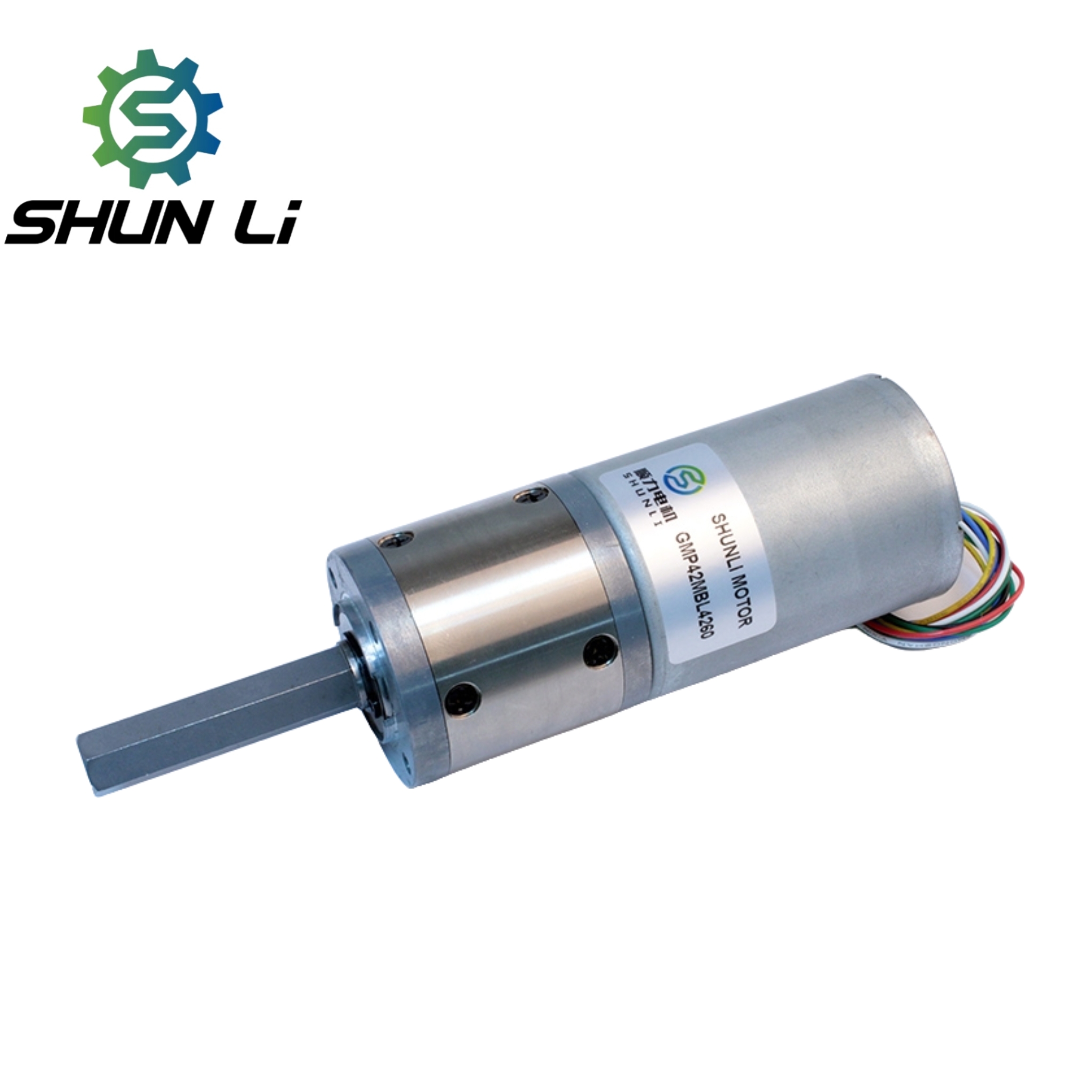

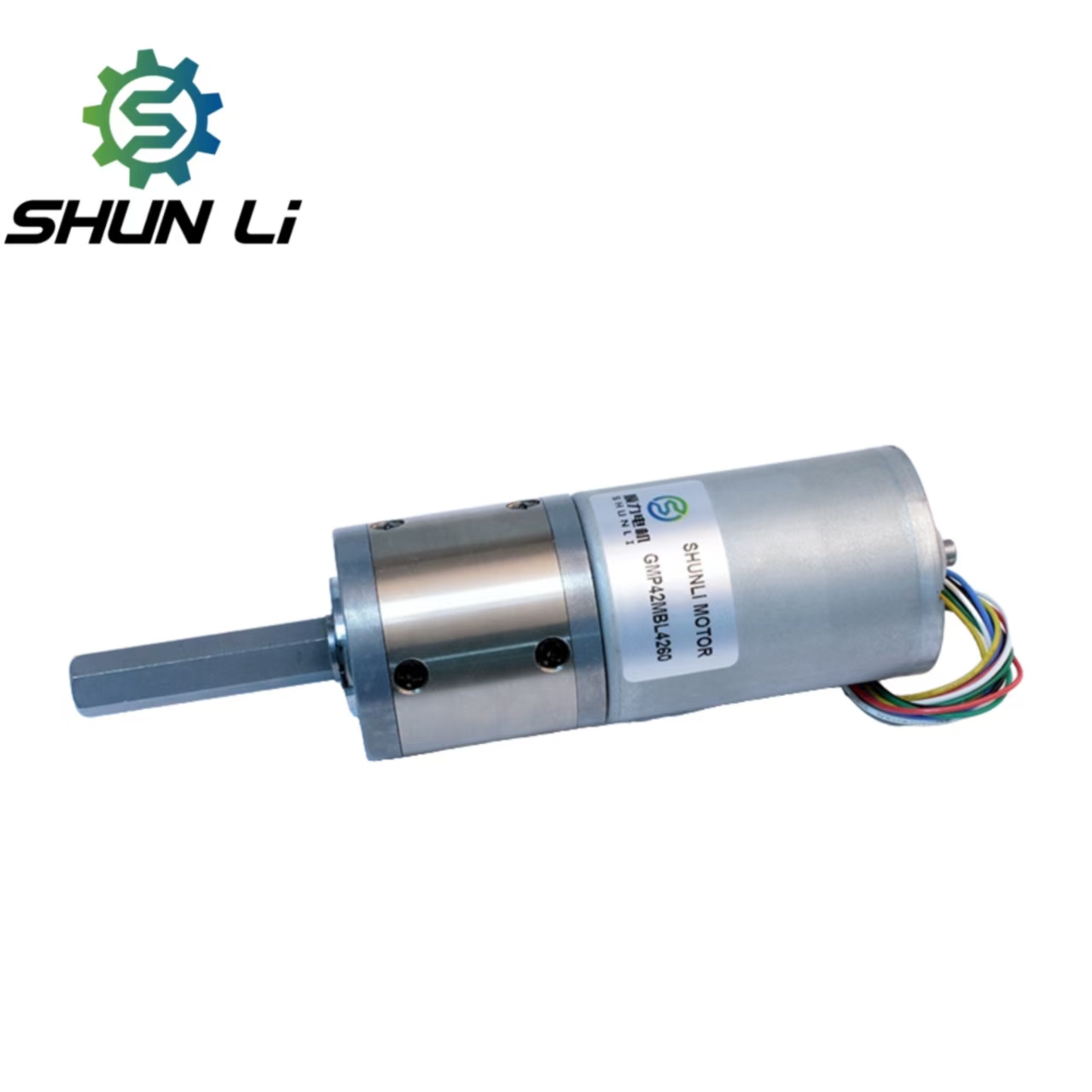

6 Wire Brushless DC Motor Sensored Brushless Motor with Speed Control

Product Description

Product Banner

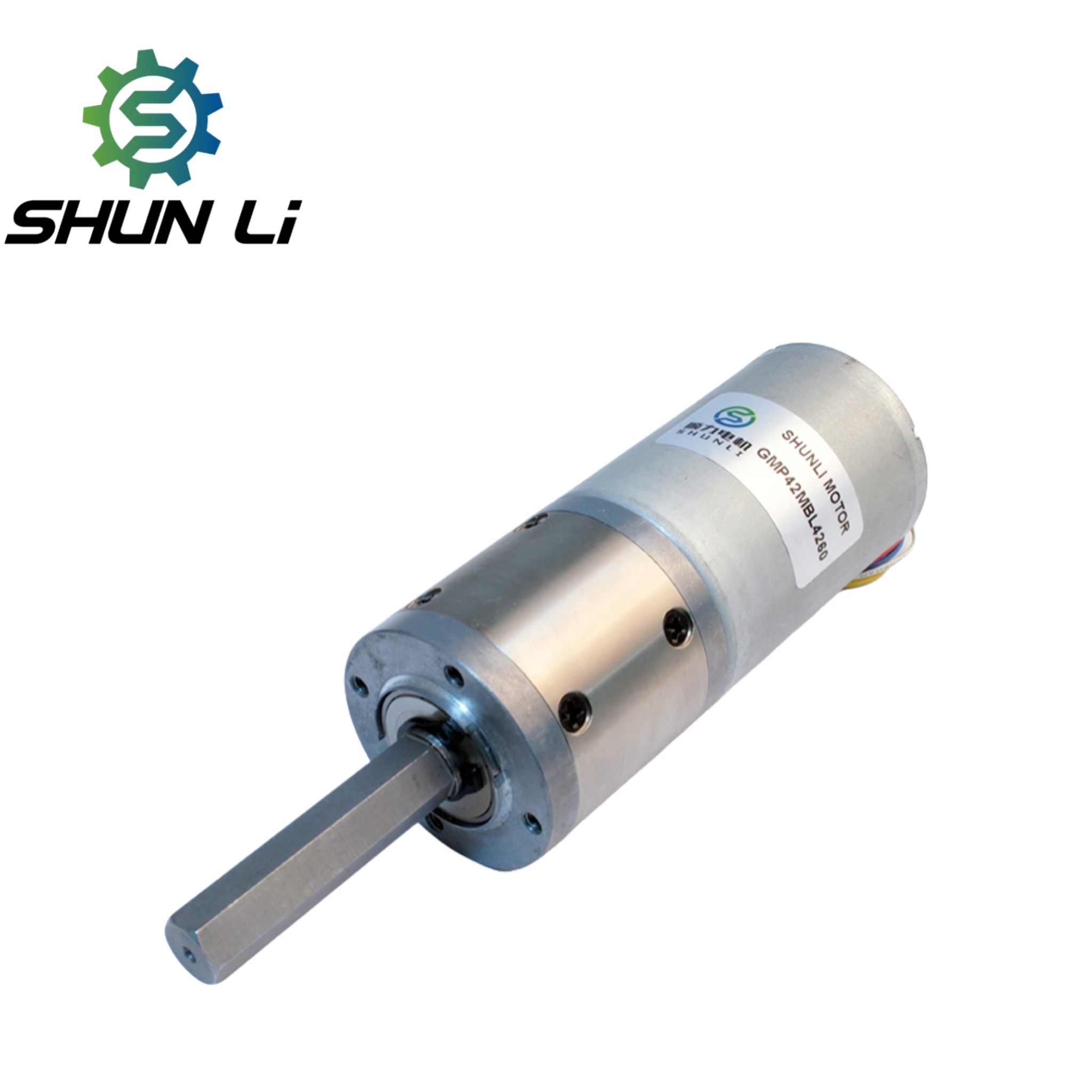

Product Specification Graphic
Product Model GMP42MBL4260
Gearbox Length 33.5~67.5mm
Speed 8RPM-135RPM
Voltage 12V/24V
Torque 2.5 N.m/6.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

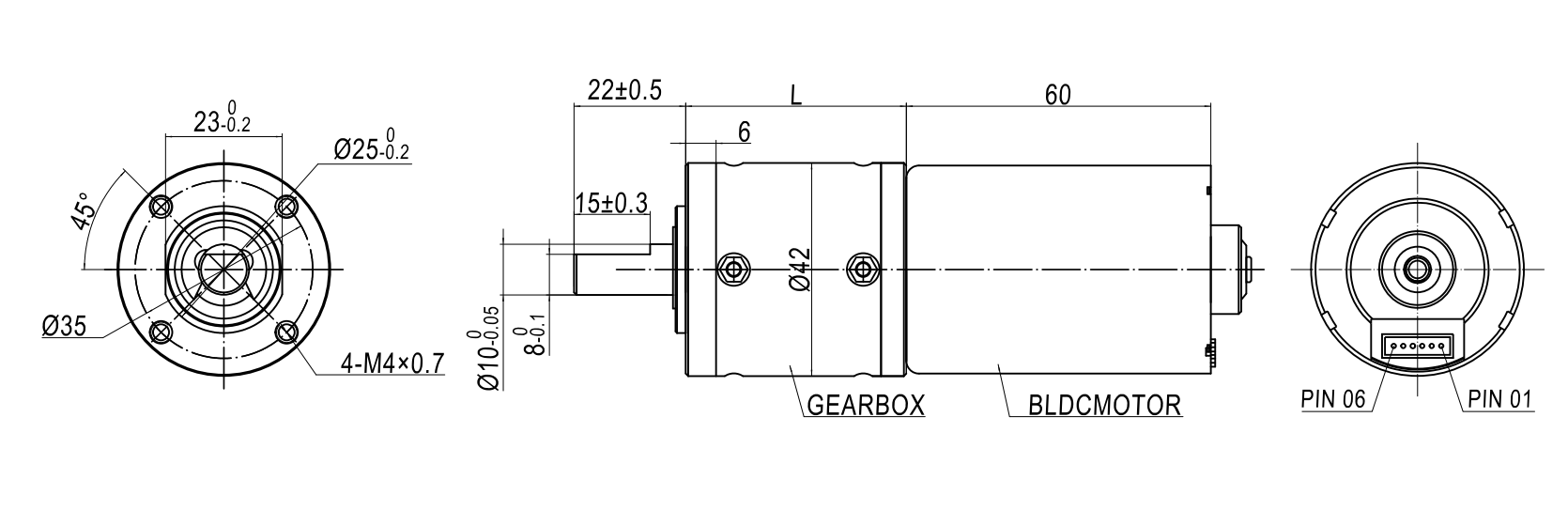

Technical Specifications Chart

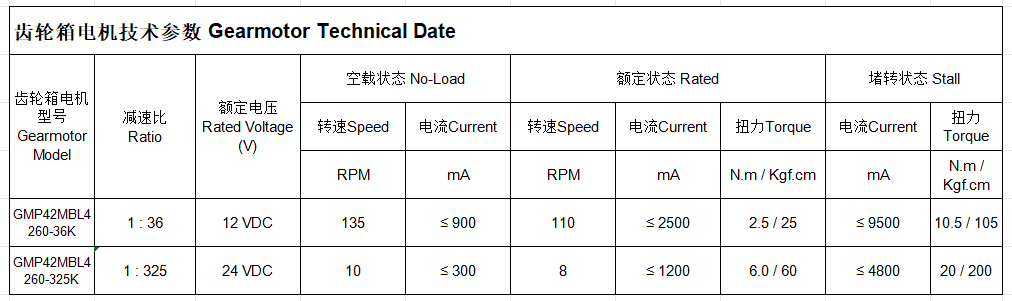

Performance Graph
Motor Application Feature 1
Motor Application Feature 2
Motor Application Feature 3
Motor Application Feature 4
Motor Application Feature 5
Motor Application Feature 6
Frequently Asked Questions
1. Q: Are you a trading company or a manufacturer?
A: We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. Q: What is the payment term for a new customer?
A: We can draw up an Online Assurance Order for our new customers, which can be paid online with Mastercard, Visa, etc. Customers can also pay with PayPal, TT, etc.
3. Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5. Q: How is your Quality Control?
A: We have professional inspection staff on every production line process. After finishing the whole motor, we use the entire quality machine setup to test the motor. This includes a Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester, etc.
