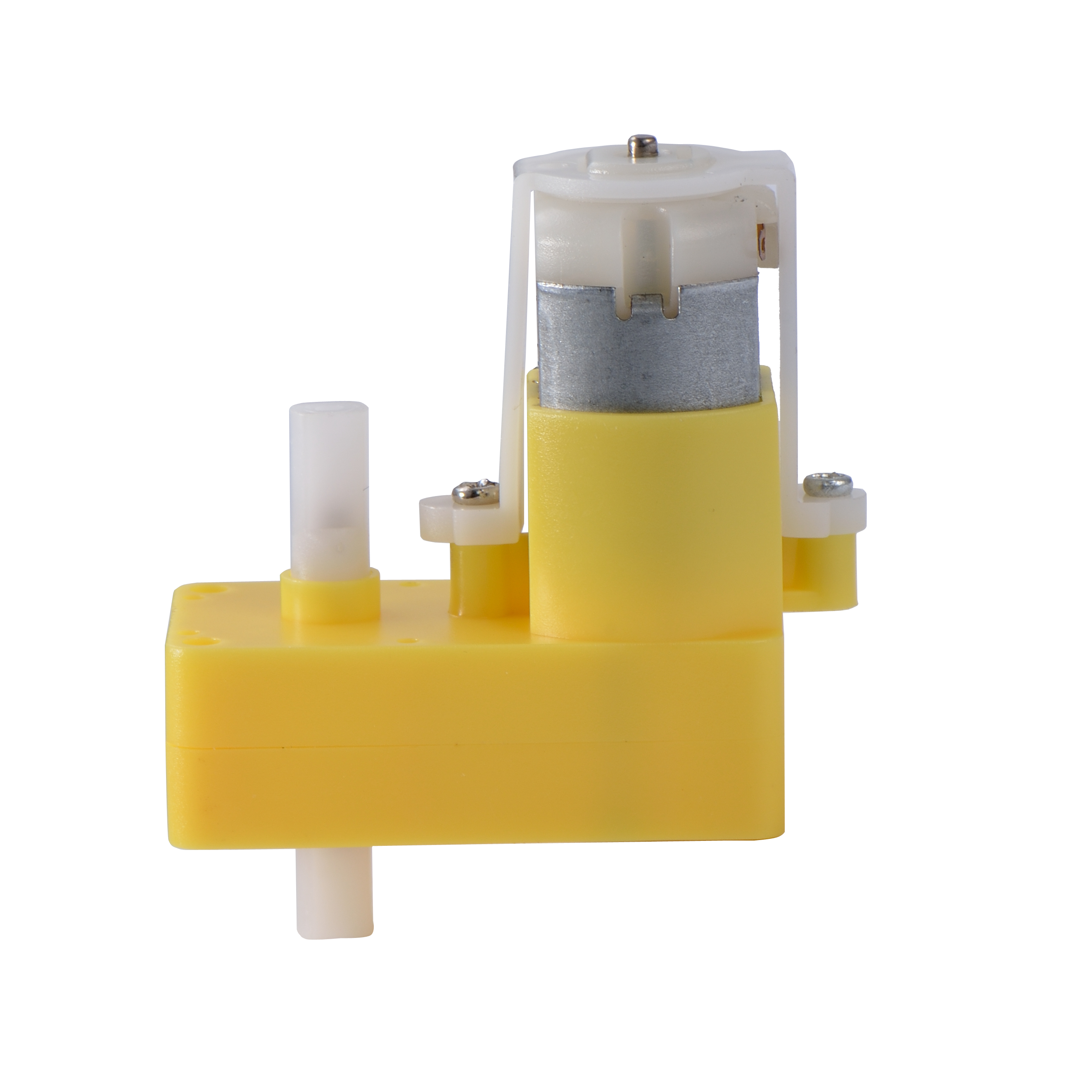

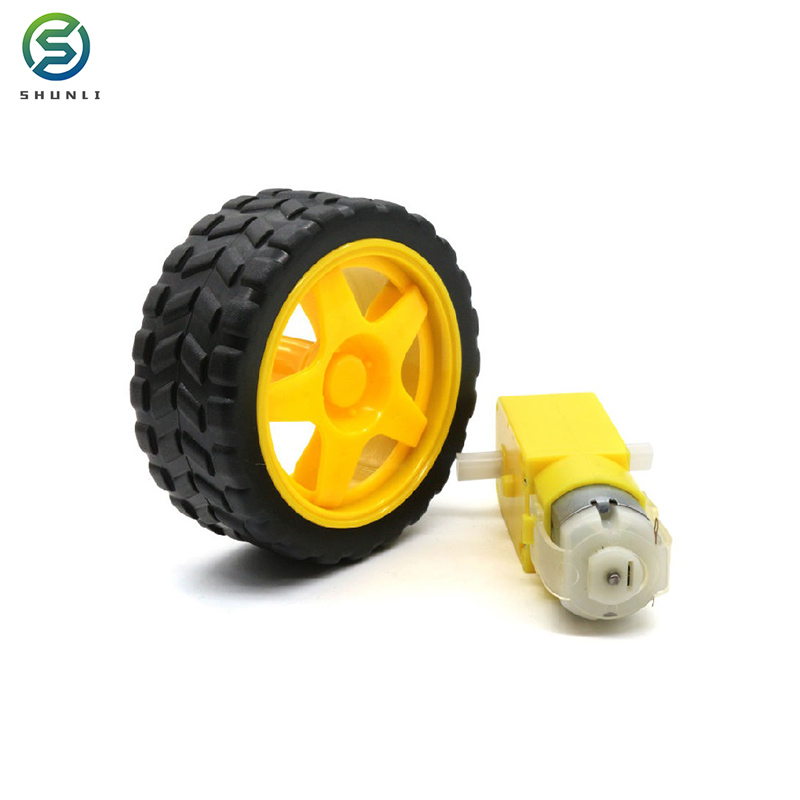

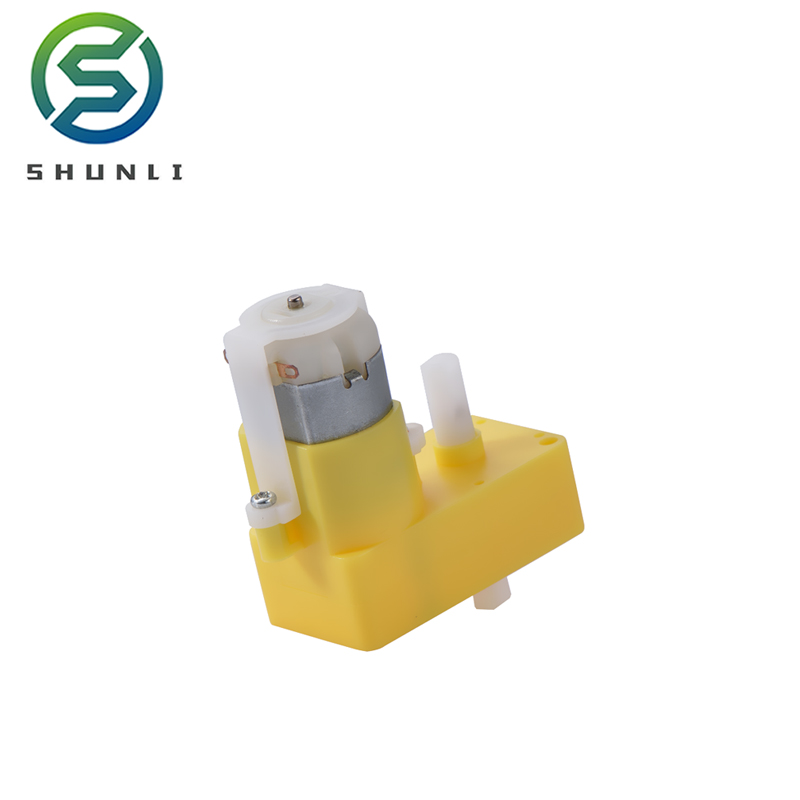

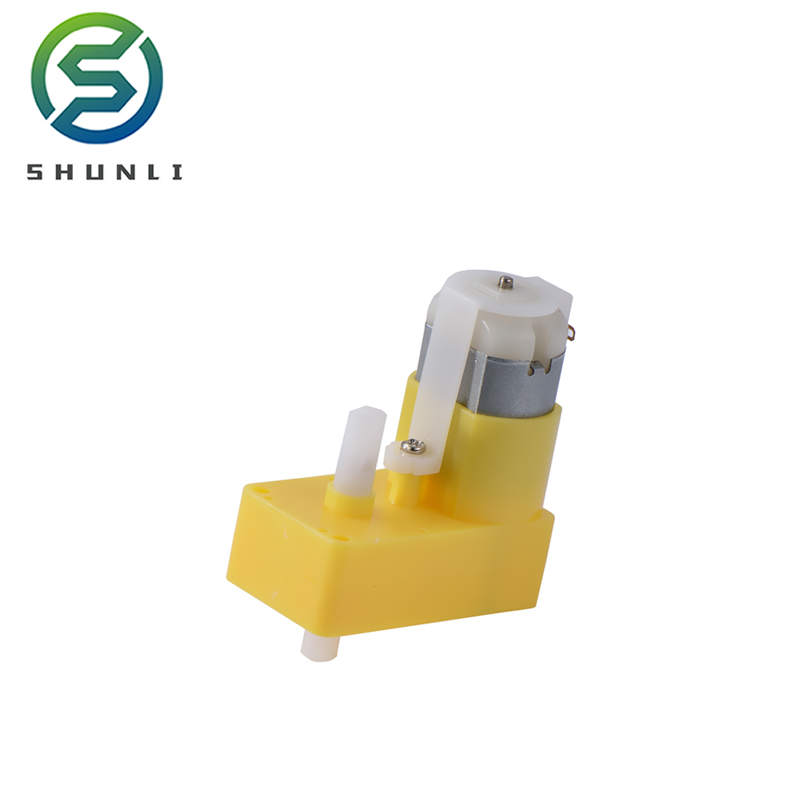

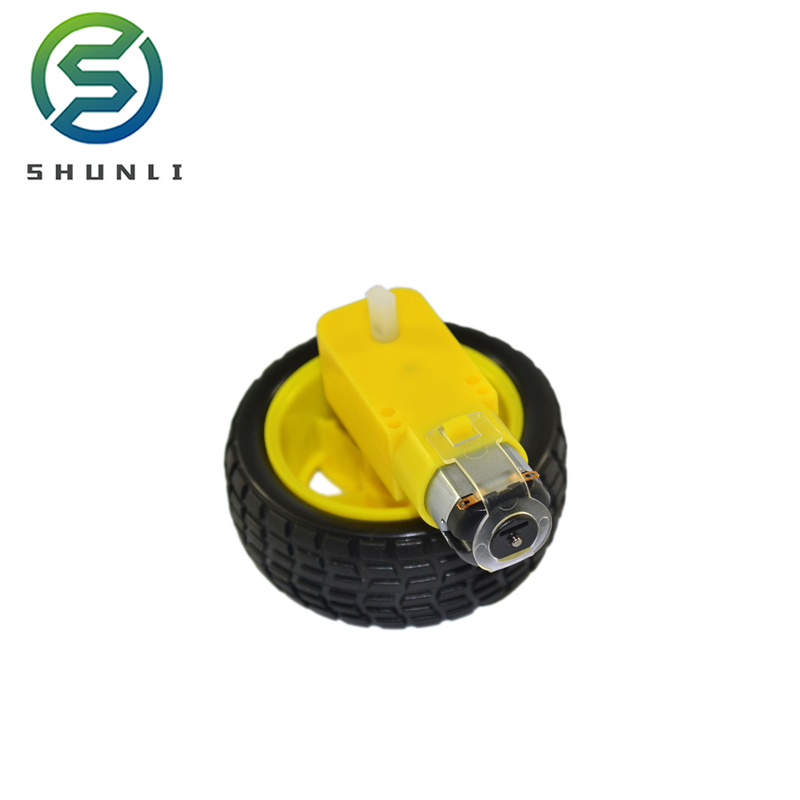

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Product Description
Yellow dc gear motor with plastic wheels of toy car
Promotion
Characters
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
Product Gallery
Frequently Asked Questions
Q1:
What is the working voltage range for this yellow DC gear motor?
The SGP01S series operates safely within a wide working voltage range of 3V to 12.0V, adapting easily to different power supply configurations.
Q2:
What are the speed differences between the two model options?
The SGP01S-A130-14150-120 model has a higher no-load speed of 100 rpm, whereas the SGP01S-A130-18100-220 model is configured for a slower no-load speed of 50 rpm.
Q3:
Which model delivers higher stall torque for heavier loads?
The SGP01S-A130-18100-220 model provides a higher stall torque of 0.393 N.m (4.003 Kg.m), making it better suited for applications requiring greater load handling capabilities.
Q4:
Are plastic wheels included and compatible with these motors?
Yes, these DC gear motors are specifically designed with output shafts matched to fit the standard yellow plastic wheels commonly used in toy cars and DIY smart robotics.
Q5:
What is the typical current draw at no-load condition?
Both models (SGP01S-A130-14150-120 and SGP01S-A130-18100-220) feature a low no-load current consumption of just 0.2 A.
Q6:
What projects are these yellow gear motors best suited for?
They are widely used in educational smart robots, DIY electronic tracking cars, micro mechanical toys, and various student robotics projects.
