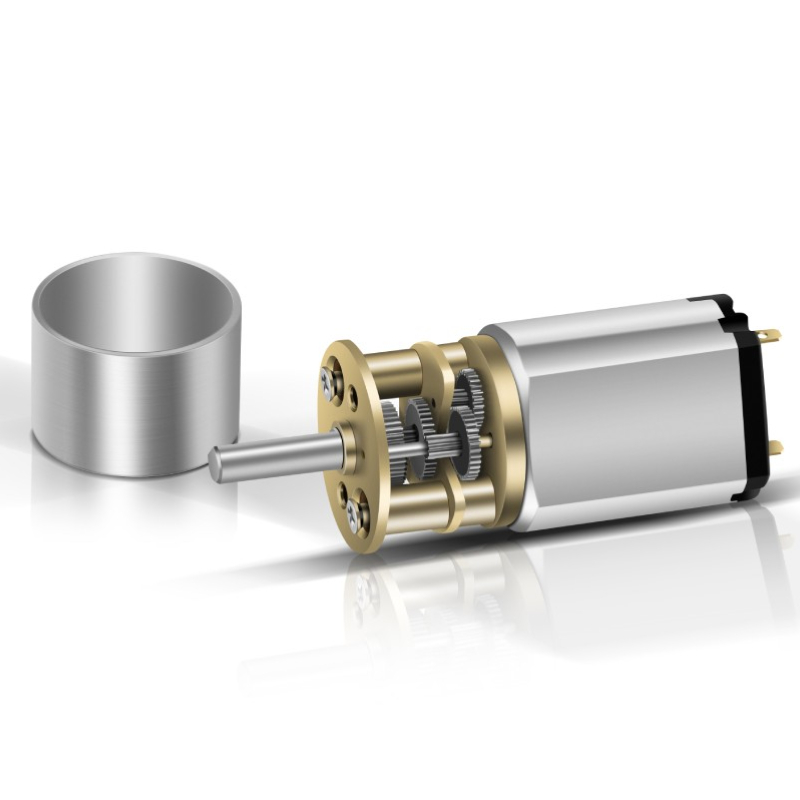

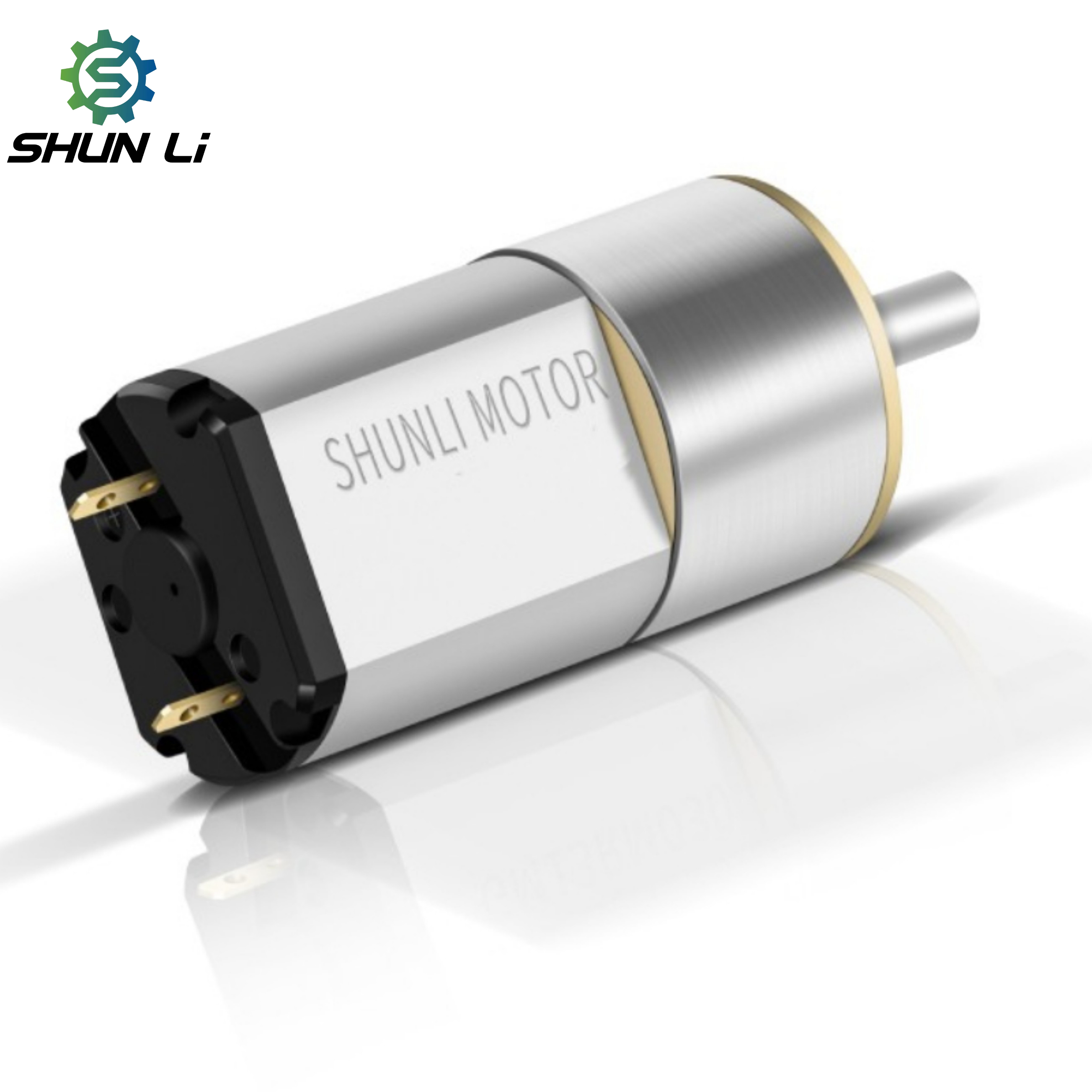

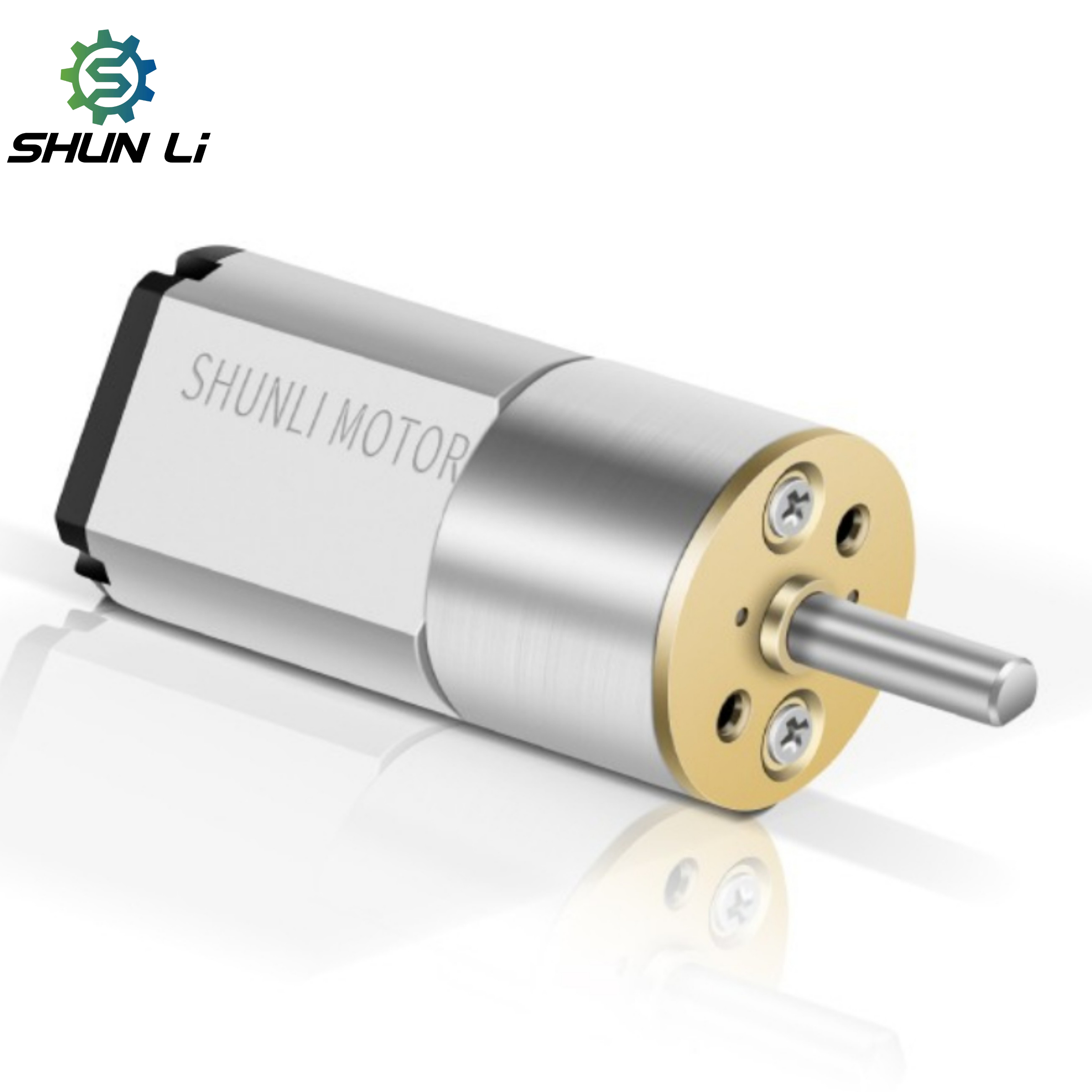

Shunli Custom 3.7 Volt 12v Dc Reduction Gear Micro Motor of High Torque Diameter of the Reduction Gear Box 13mm for Gas Valve
Product Description
Product Description
6 volt 12v dc reduction gear micro motor of high torque
Reference Drawing

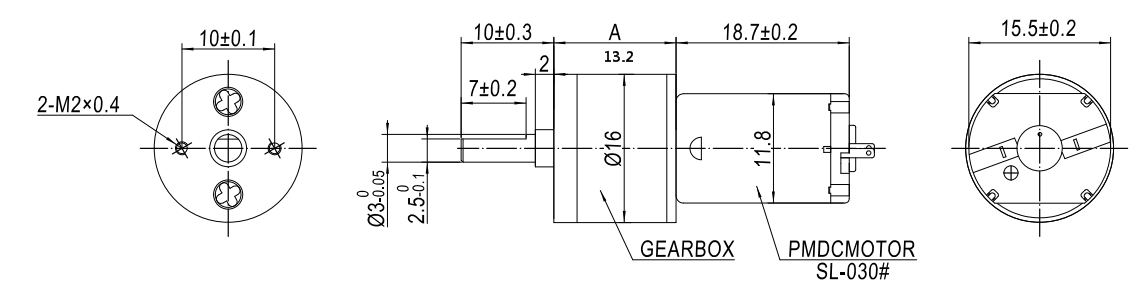

Model: GM16AM030

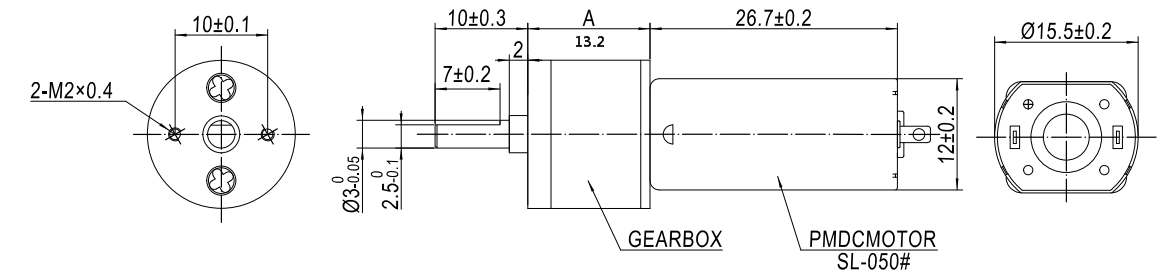

Model: GM16AM050

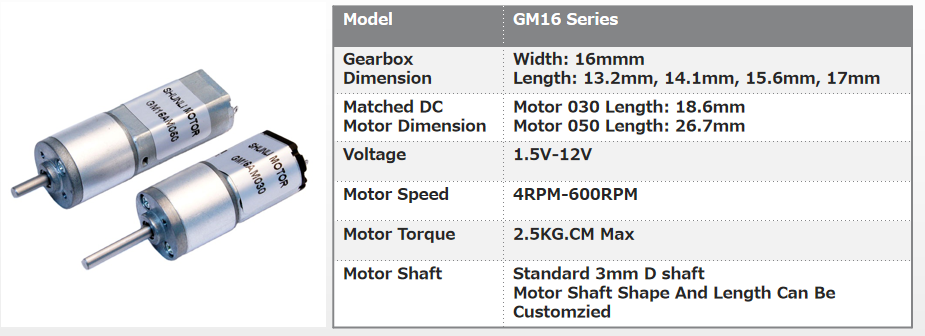

Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |
| Gearbox Length "A" (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Max. Gear Broke Torque | 1.5 Kgf.cm | 3.0 Kgf.cm | 4.0 Kgf.cm | 5.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
Customer Evaluation
Certifications
Why Choose Us
1. Experienced Manufacturer
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management system bring you a reliable shopping experience.
2. Strict Quality Control
To confirm high quality, every step from material receiving to final shipment is carefully checked. Reliable quality is the basis of our development.
Our Services
High credibility and established industry reputation.
100% on-time delivery rate ensures your products arrive timely.
Standard samples are produced within 2 weeks; customized samples within 3 weeks.
Timely response: your messages will be replied to within 2 hours.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can set up an online assurance order, allowing payment with Visa, MasterCard, and other options. We also accept PayPal and TT.
Can you customize the motor if I cannot find a suitable model on the website?
Yes, we can customize a suitable motor according to your specific performance and size requirements.
Do you have certificates for your motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. We can also apply for additional certificates as requested.
How do you handle Quality Control?
We have dedicated quality control inspectors on every production line. Finished products are fully tested using advanced machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
What voltages are available for these micro reduction gear motors?
While the standard rated voltage is 3.7 VDC, the motors are highly customizable to support 6V, 12V DC, and other voltage specs depending on your application requirements.
