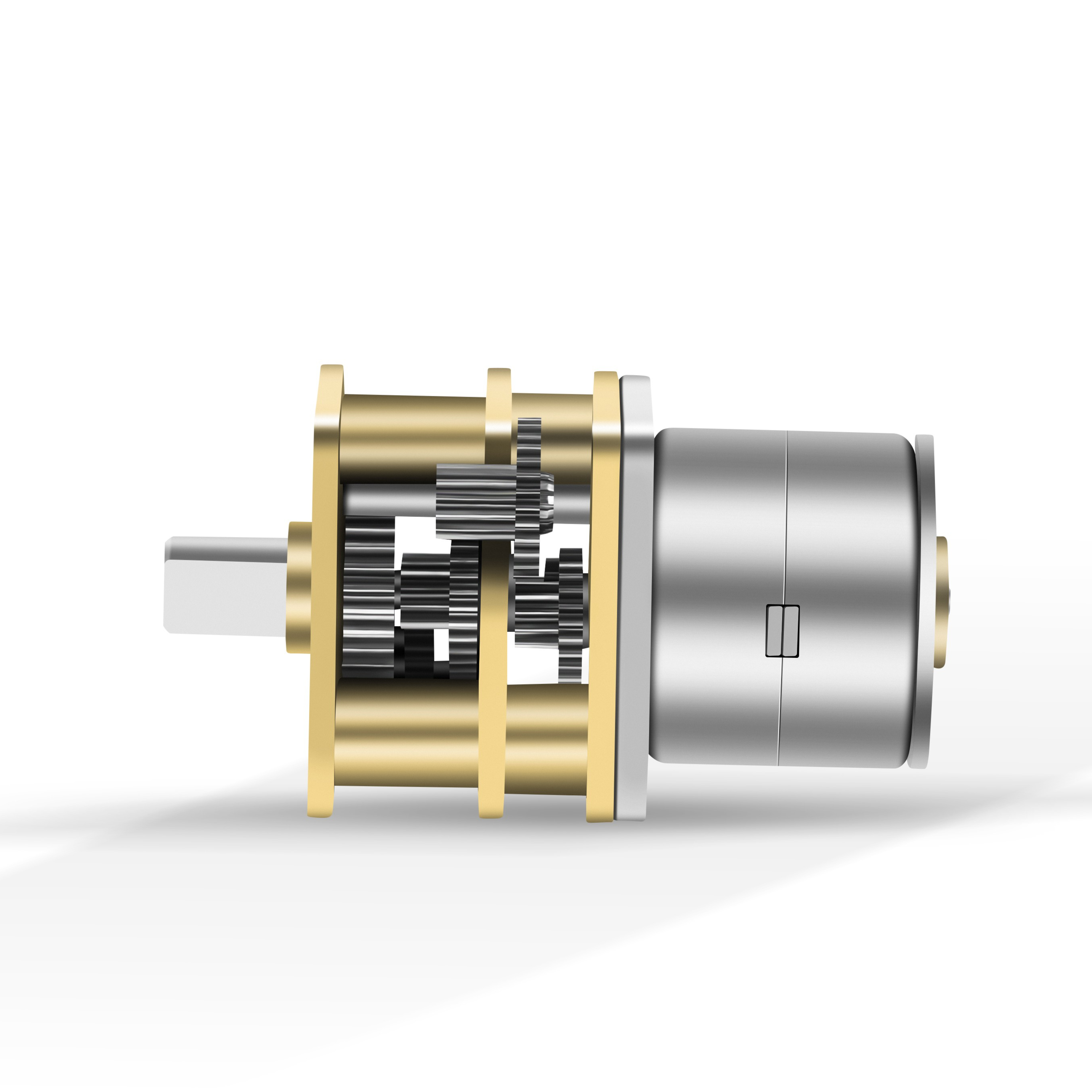

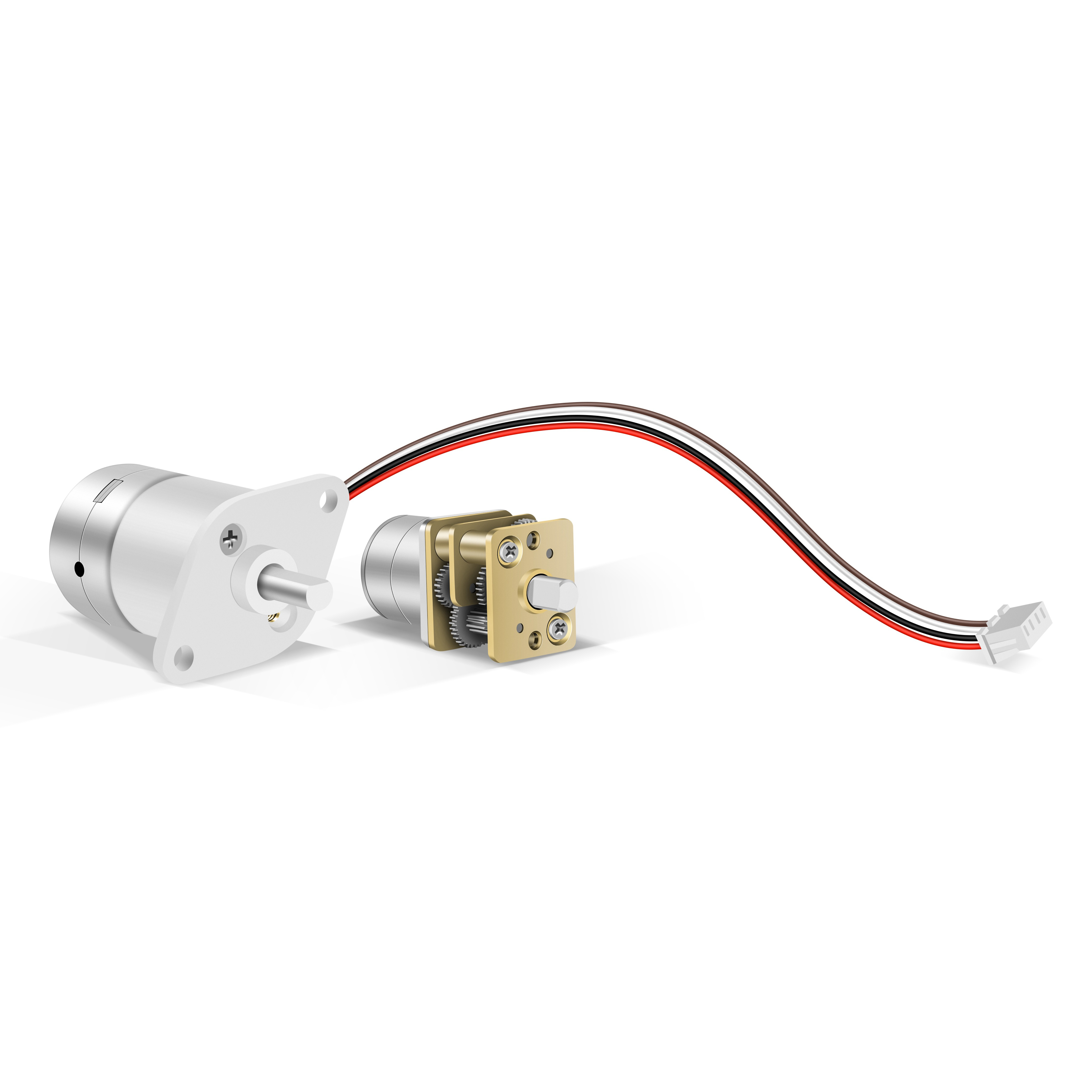

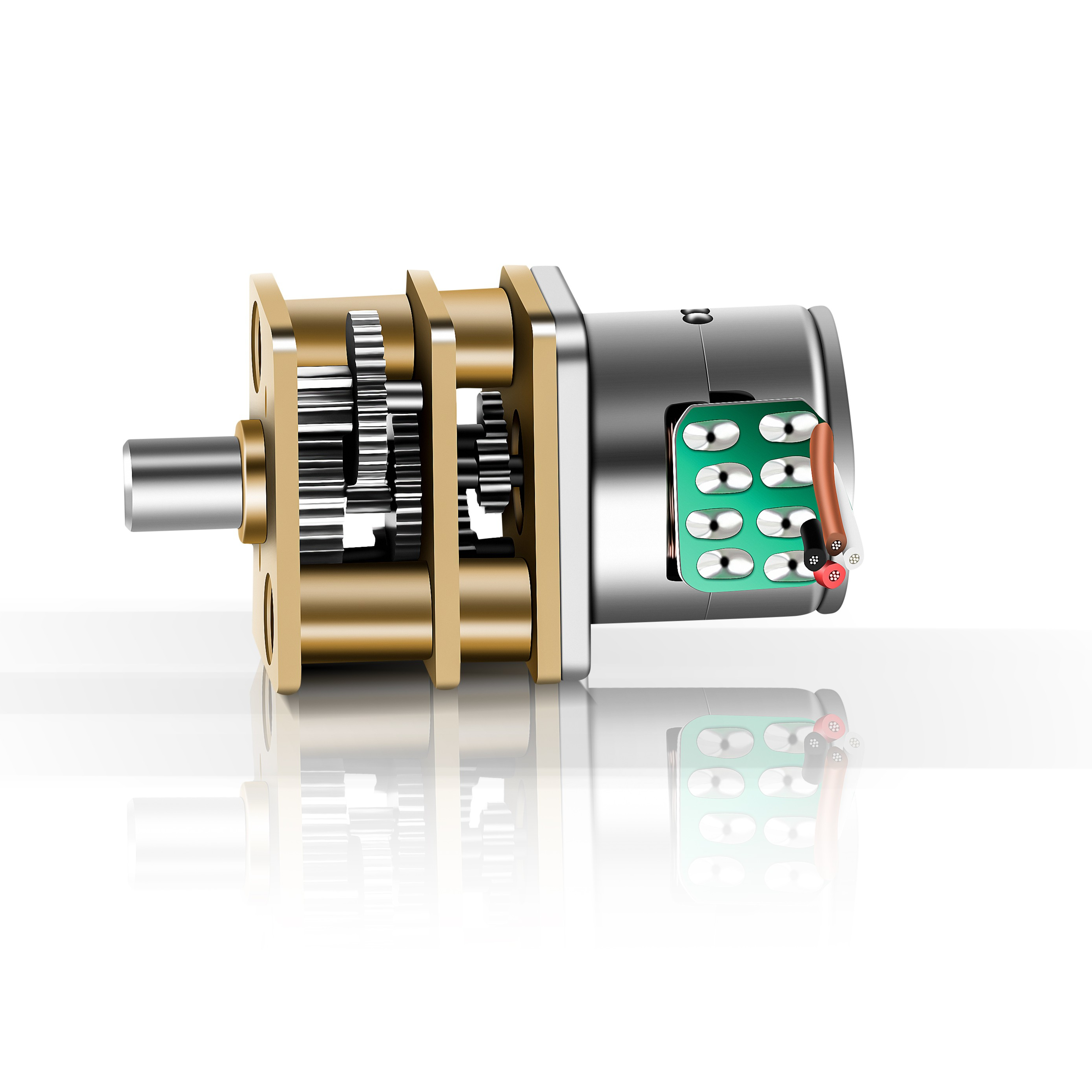

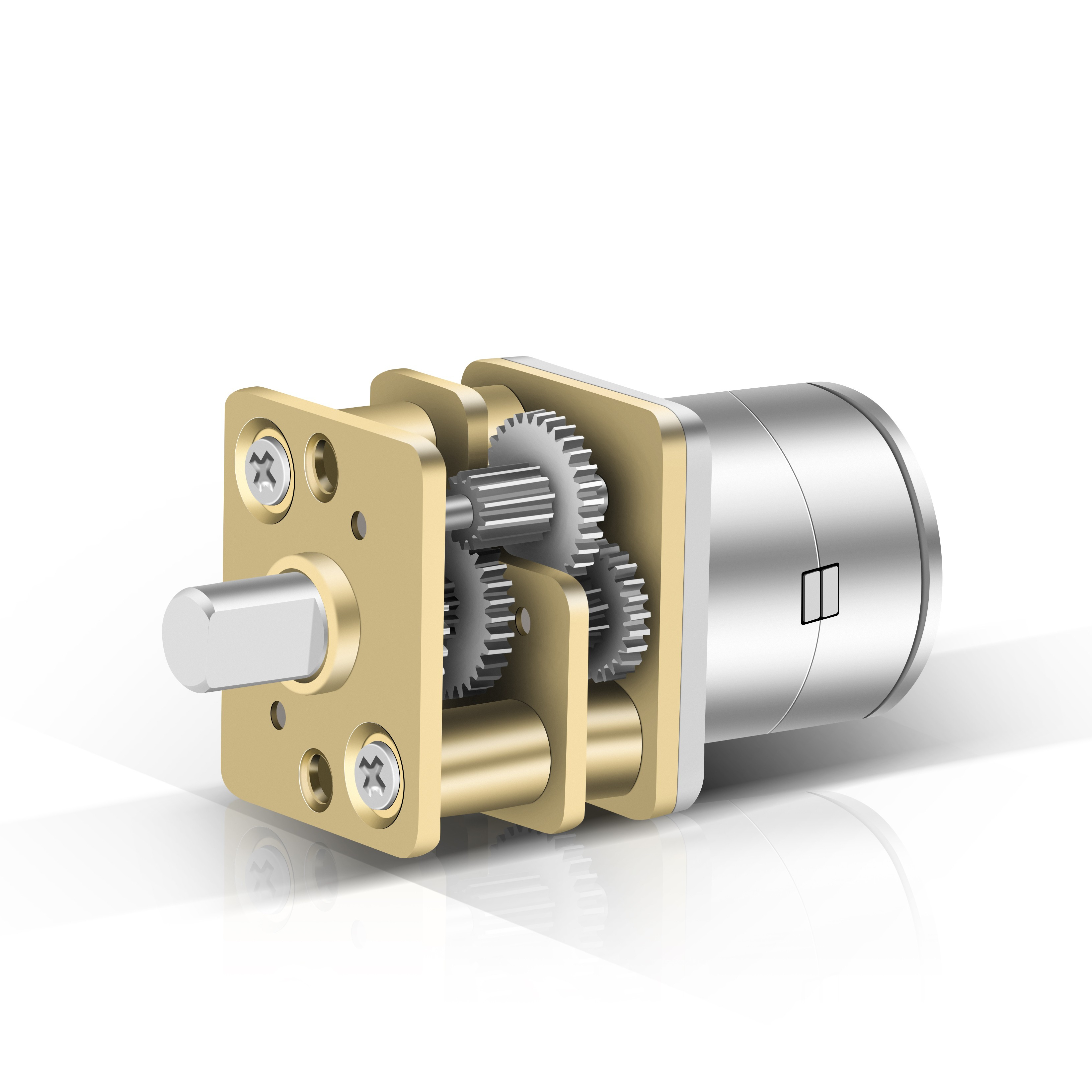

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Product Description
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment
Motor Customized Specification

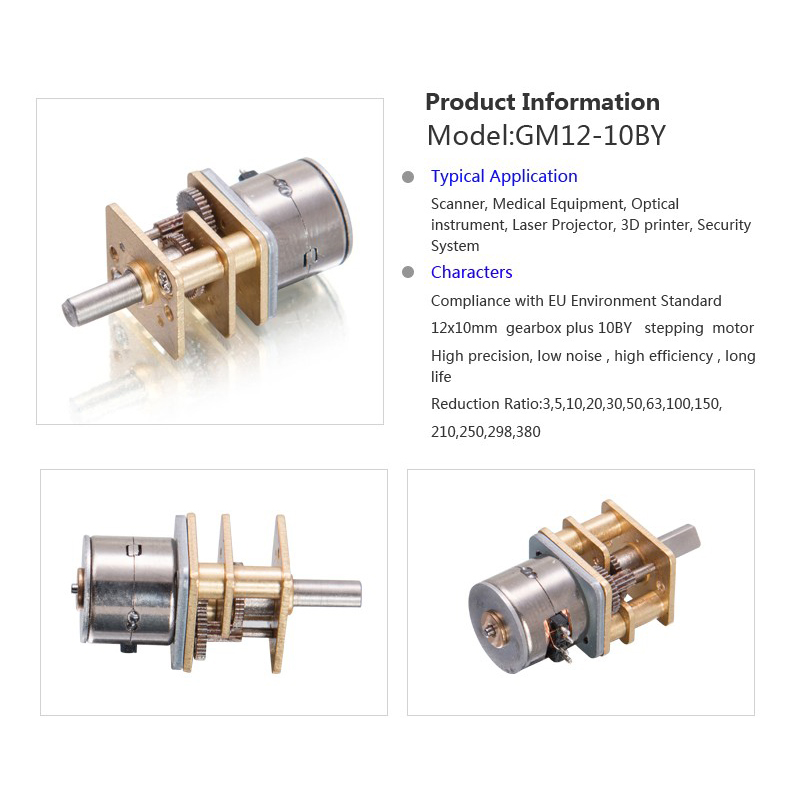

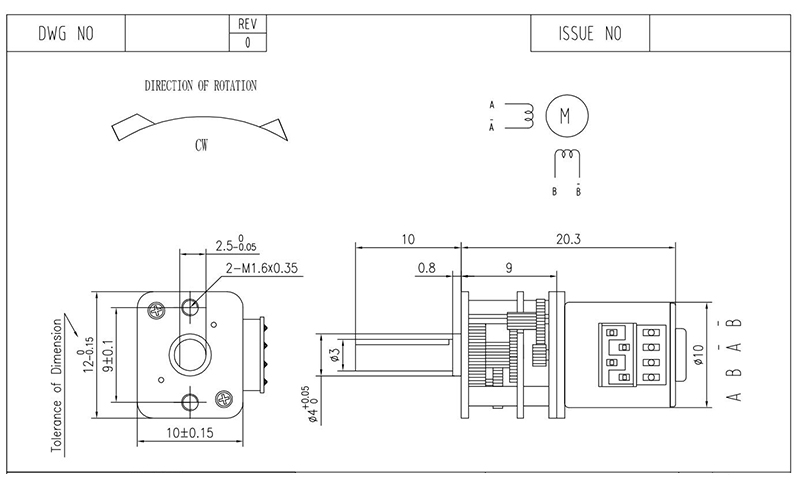

Reference Drawing: GM12-10BY
Gearbox Technical Data
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ratio | 4K / 4.75K | 16K / 19K / 22.6K | 64K / 74K / 90K / 107K | 256K / 304K / 361K / 429K / 509K | 1024K / 1216K / 1444K / 1715K / 2036K / 2418K |
| Gearbox Length “L”(mm) | 13.3 | 16.8 | 20.3 | 23.8 | 27.3 |
| Max. Rated Torque | 1.0 Kgf.cm | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm |
| Max. Gear Breaked Torque | 3.5 Kgf.cm | 6.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm |
| Gearbox Efficiency | 80%~90% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |
| Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment | |||||
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (N.m / Kgf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GMP22M130-64K | 1 : 64 | 6 VDC | 138 | ≤ 160 | 110 | ≤ 450 | 0.095 / 0.95 | ≤ 1700 | 0.42 / 4.2 |
| GMP22M180-256K | 1 : 256 | 5 VDC | 38 | ≤ 180 | 30 | ≤ 1050 | 0.32 / 3.2 | ≤ 3900 | 1.25 / 12.5 |

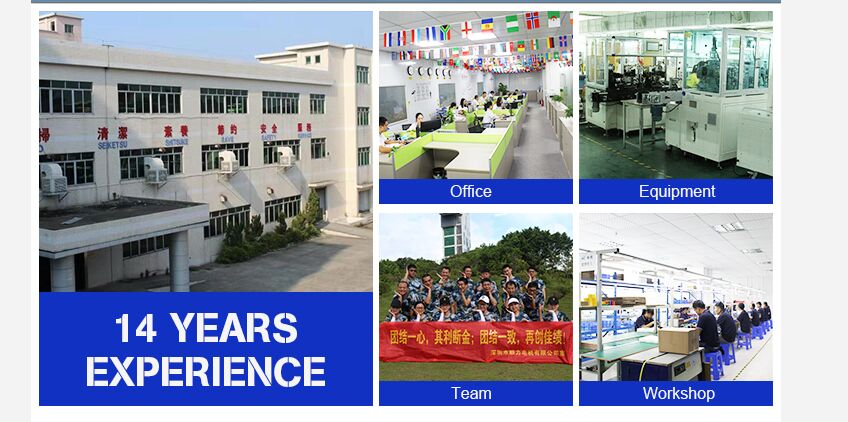

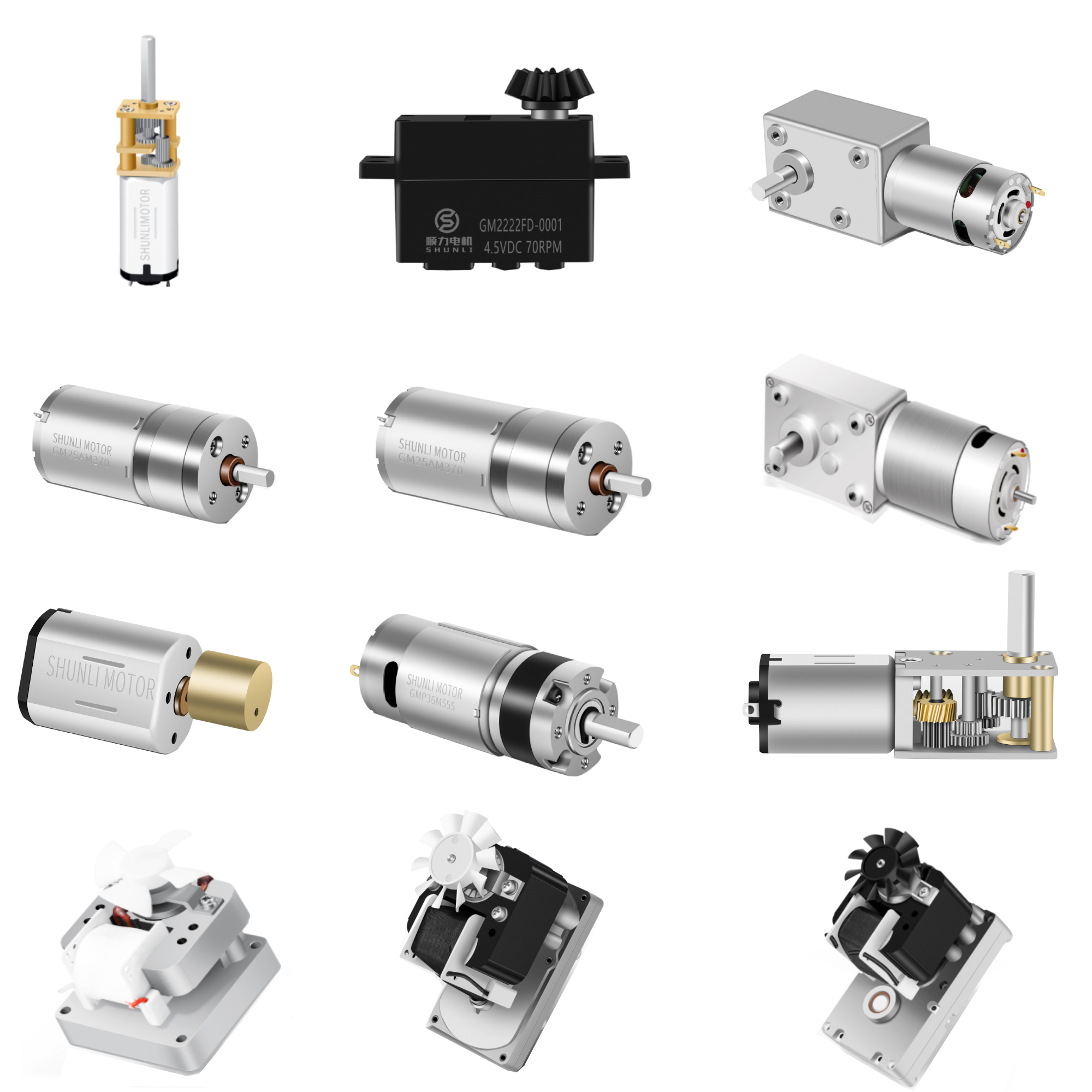

Established in 2005, the manufacturing plant operates as a high-tech enterprise integrating the research, development, production, and sales of various micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and custom gearbox motors. The products are widely utilized in automobiles, communications equipment, smart home devices, medical equipment, intelligent security, household appliances, and other high-end transmission structures. These products are exported to more than 50 countries and regions worldwide.
Q
Are you a trading company or a manufacturer?
We are a factory. We specialize in the research, design, and manufacturing of micro DC motors and DC gear motors with over 14 years of professional experience.
Q
What is the payment term for a new customer?
We support secure online transaction orders. New customers can conveniently complete payments online using major credit cards (MasterCard, Visa), PayPal, or wire transfer (T/T).
Q
I cannot find a suitable motor on your website, can you customize the motor for me?
Yes. We provide complete customization services. We can design and manufacture a custom motor matching your specific voltage, speed, torque, and dimensions requirements.
Q
Do you have certificates for the motors?
Yes. Our products are certified with CE, FCC, ISO, and other relevant standard credentials. If your specific application requires additional specialized certifications, we can coordinate and apply for them.
Q
How is your Quality Control managed?
We maintain strict QA inspection personnel at every processing stage. Once production is complete, we perform comprehensive performance evaluations using advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Chambers, and Noise Testing equipment.
Q
What is the typical lead time for production?
Standard production lead time typically ranges from 15 to 30 days depending on the order volume and customization specifications. For stock items, sample shipping can be arranged more quickly.
