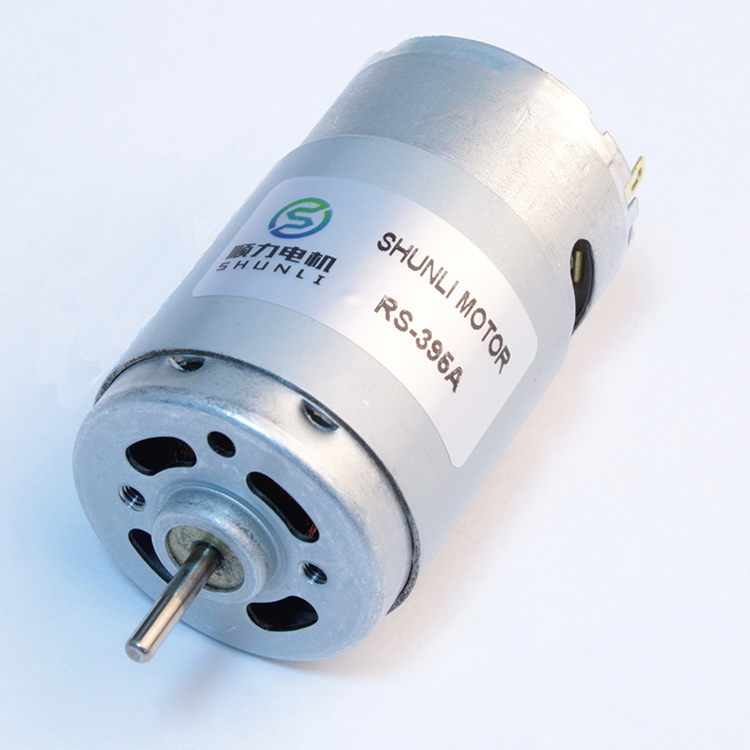

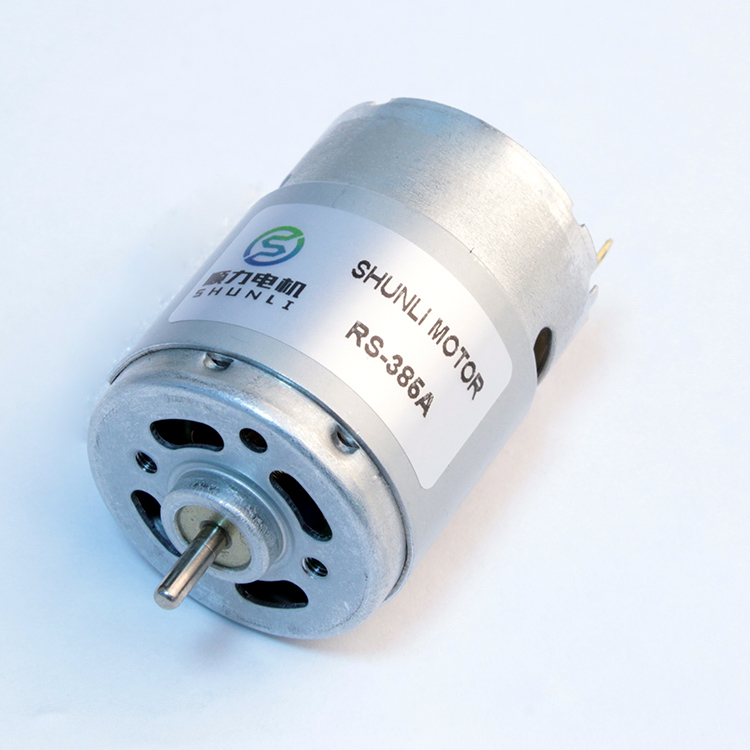

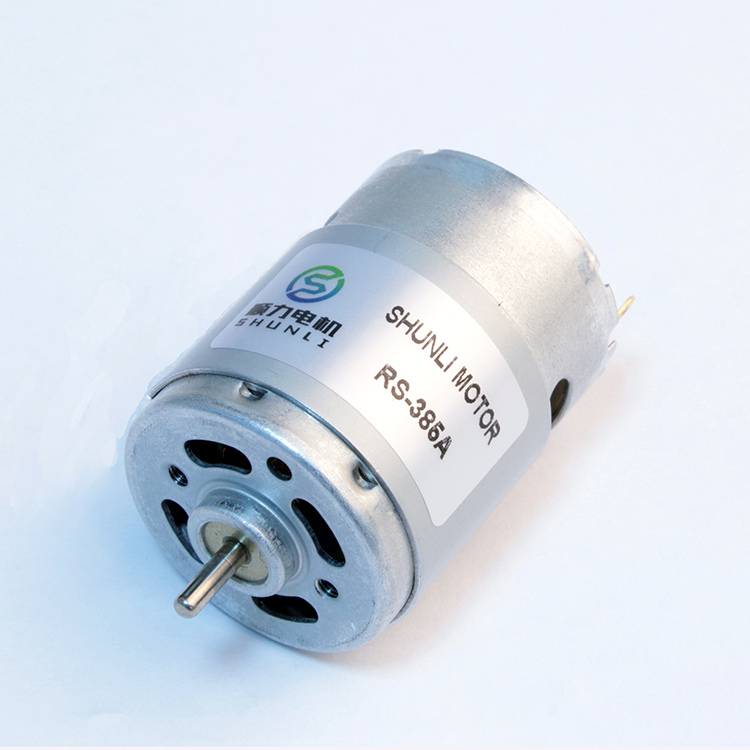

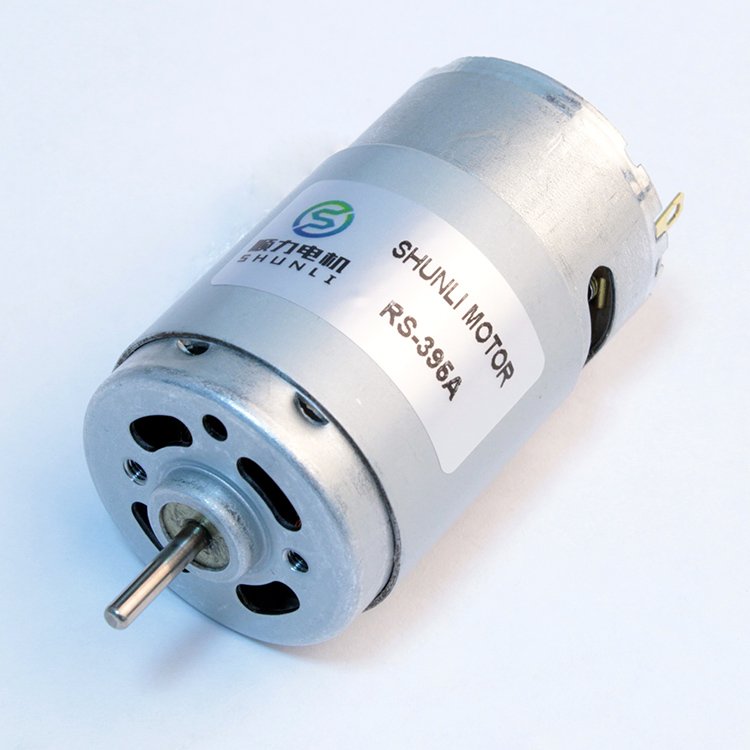

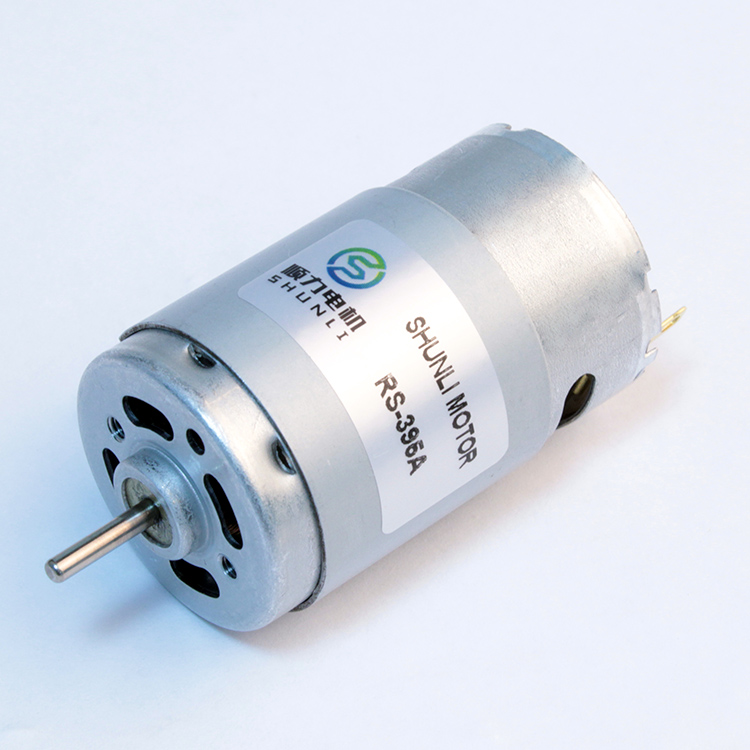

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless
Product Description
Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor
Product Details
Motor Customized Specification, Please contact me.
Reference Drawing

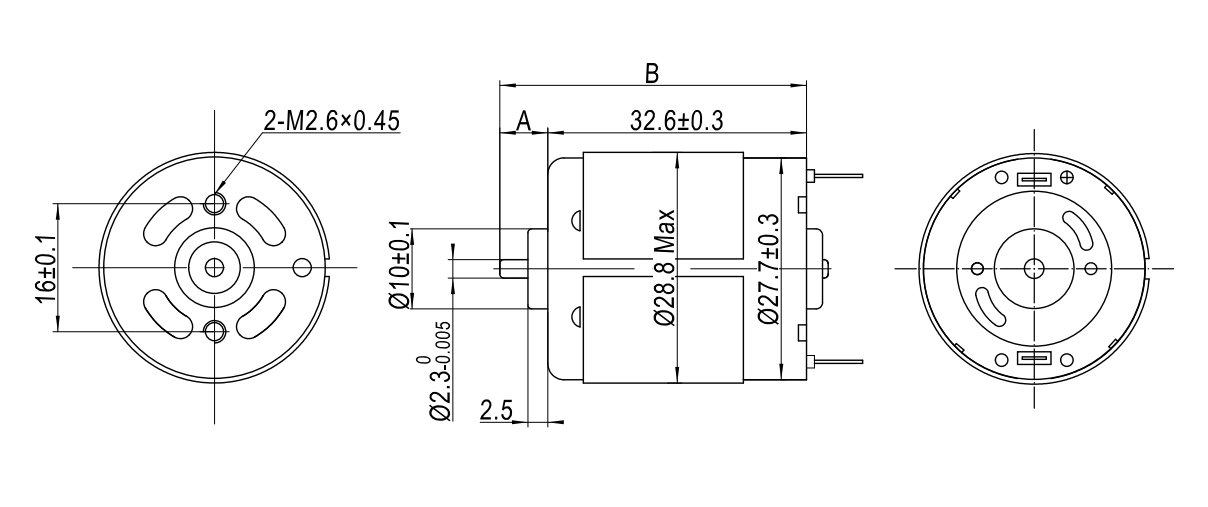

------ RS - 365

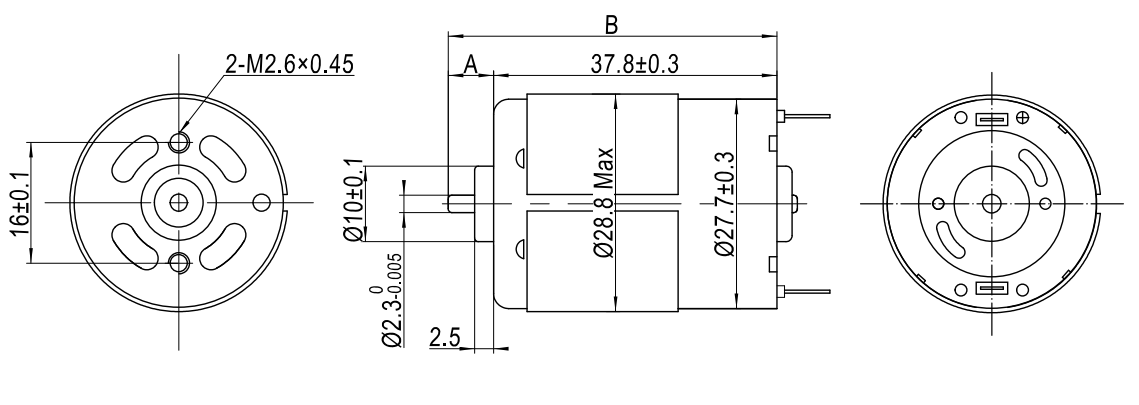

------ RS - 385

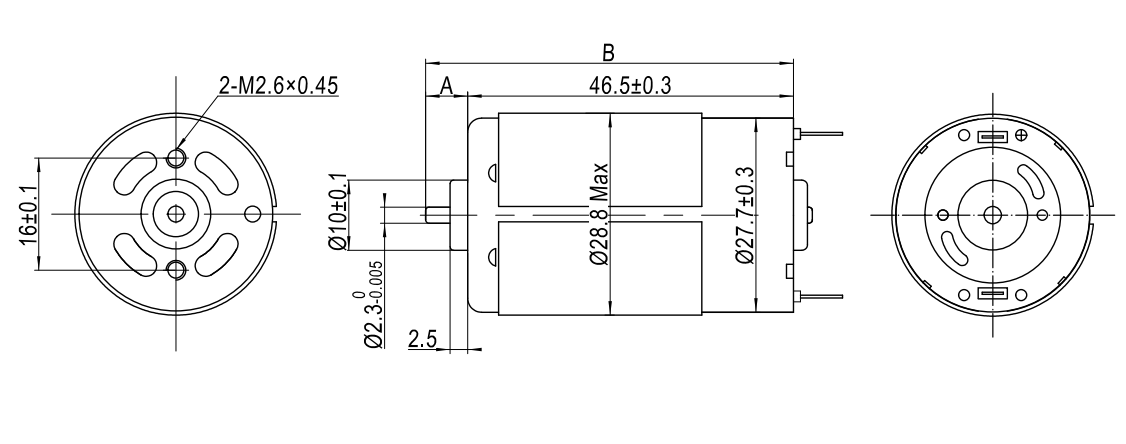

------ RS - 395
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Looking forward to your feedback!
Frequently Asked Questions (FAQ)
What are the main applications of the 390PH DC motor?
The 390PH DC motor is optimized for high-performance applications such as professional hair dryers, micro vacuum cleaners, and other compact home appliances requiring efficient, high-speed operation.
Can the motor specifications and shaft dimensions be customized?
Yes, we specialize in custom manufacturing. Shaft length, operating voltage range, rated speed, torque, and other technical specifications can be tailored to meet your product design requirements.
What is the standard operating voltage for these PMDC motors?
Our PMDC motor models generally operate within a range of 6.0V to 24.0V DC. The nominal voltage configurations typically include 12VDC and 24VDC configurations.
Do you offer both brush and brushless custom motor options?
Yes. Depending on your performance needs, noise level requirements, and product lifecycle objectives, we can manufacture custom brushed or brushless DC configurations.
Where can I find the precise mechanical dimensions of the RS-365, RS-385, and RS-395 motors?
The outer dimensions, shaft details, and structural layouts are detailed in the Reference Drawings section above for each corresponding motor series. Custom drawings can also be supplied upon request.
