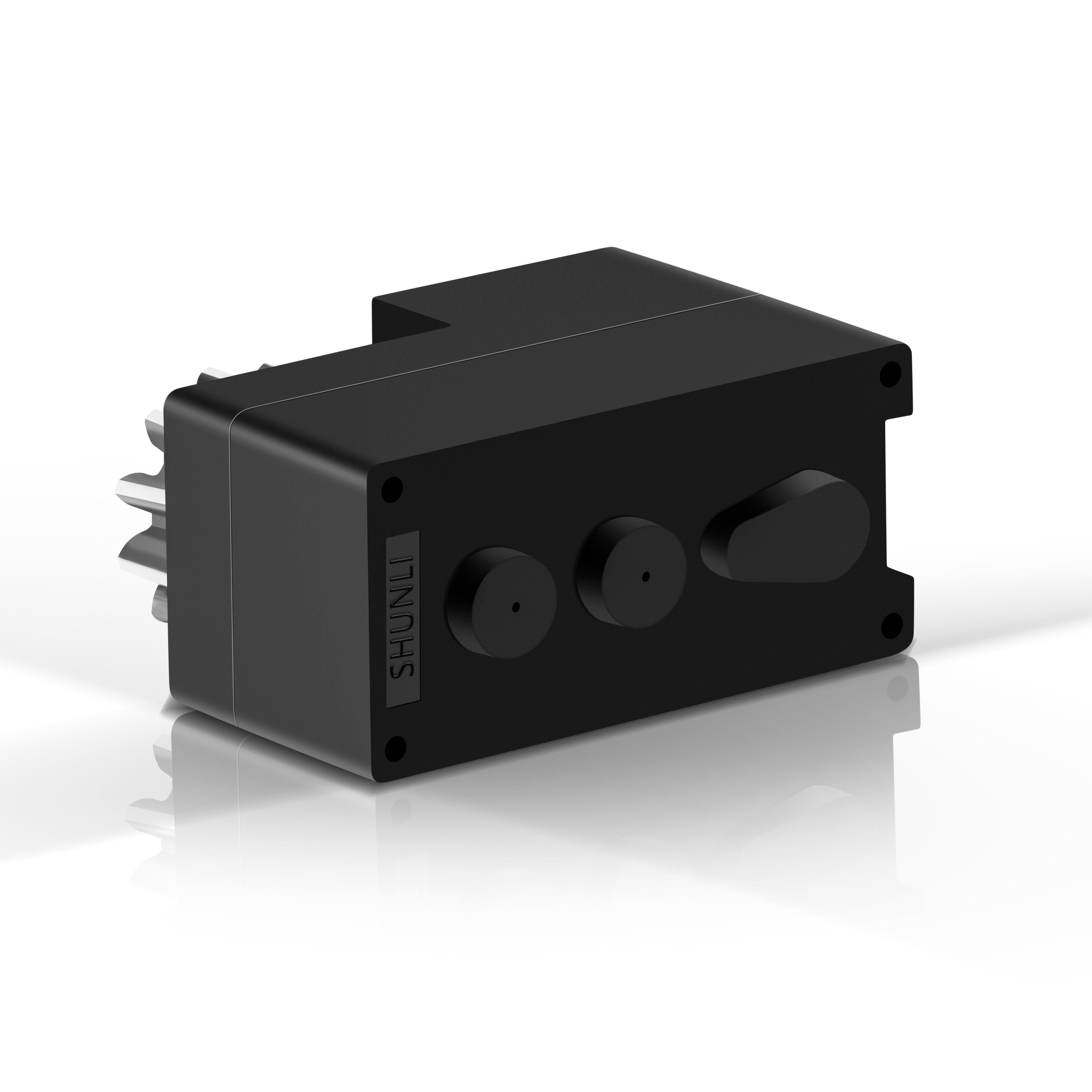

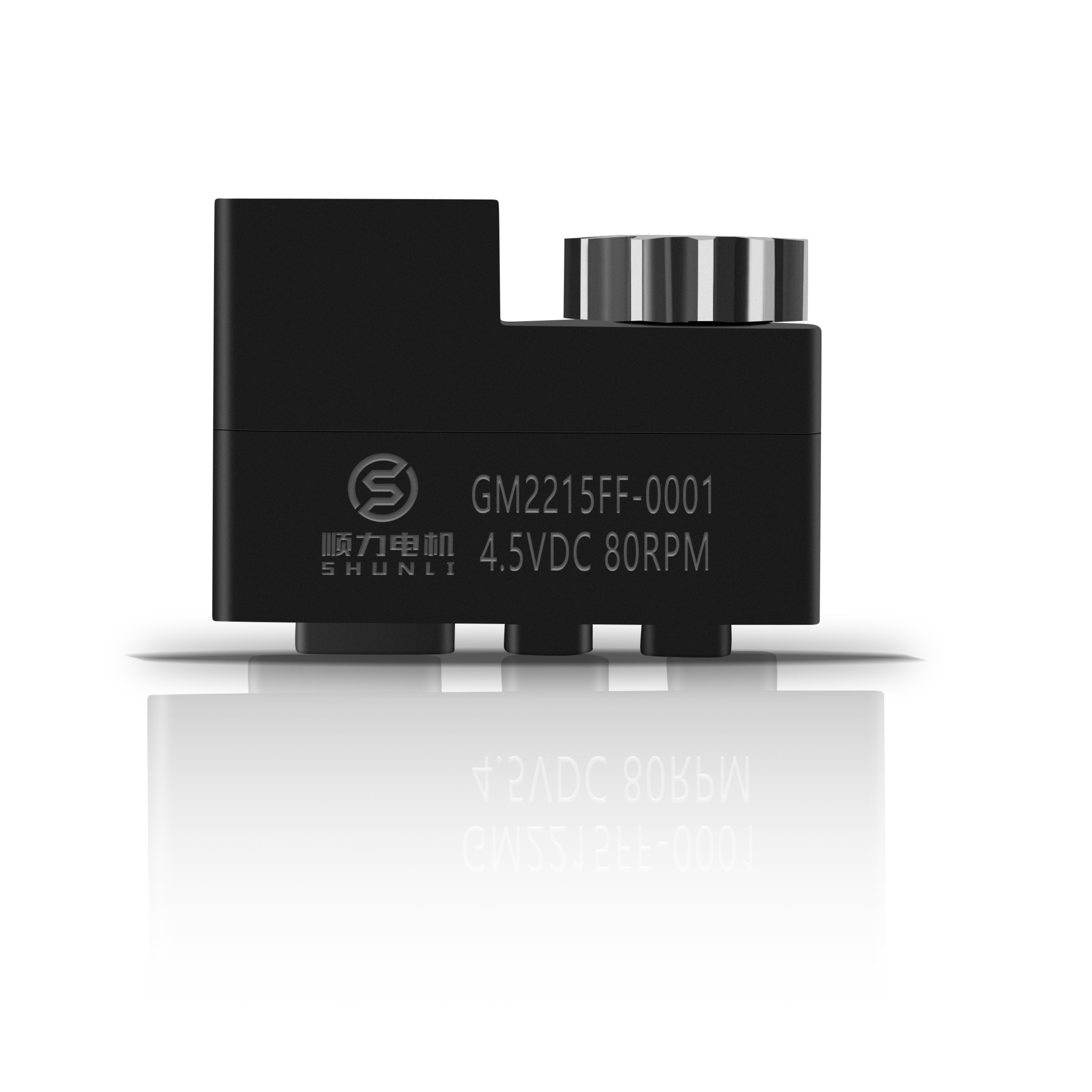

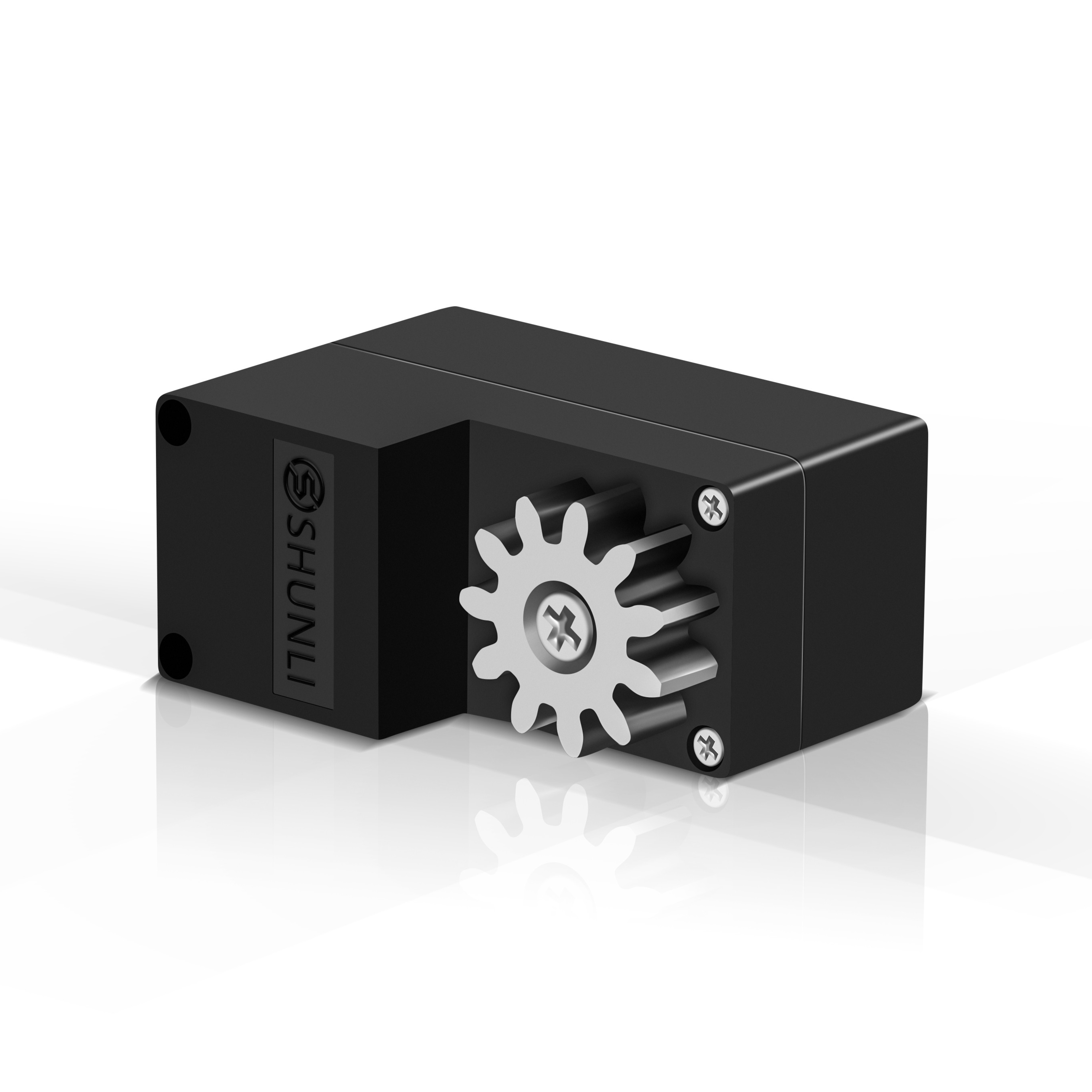

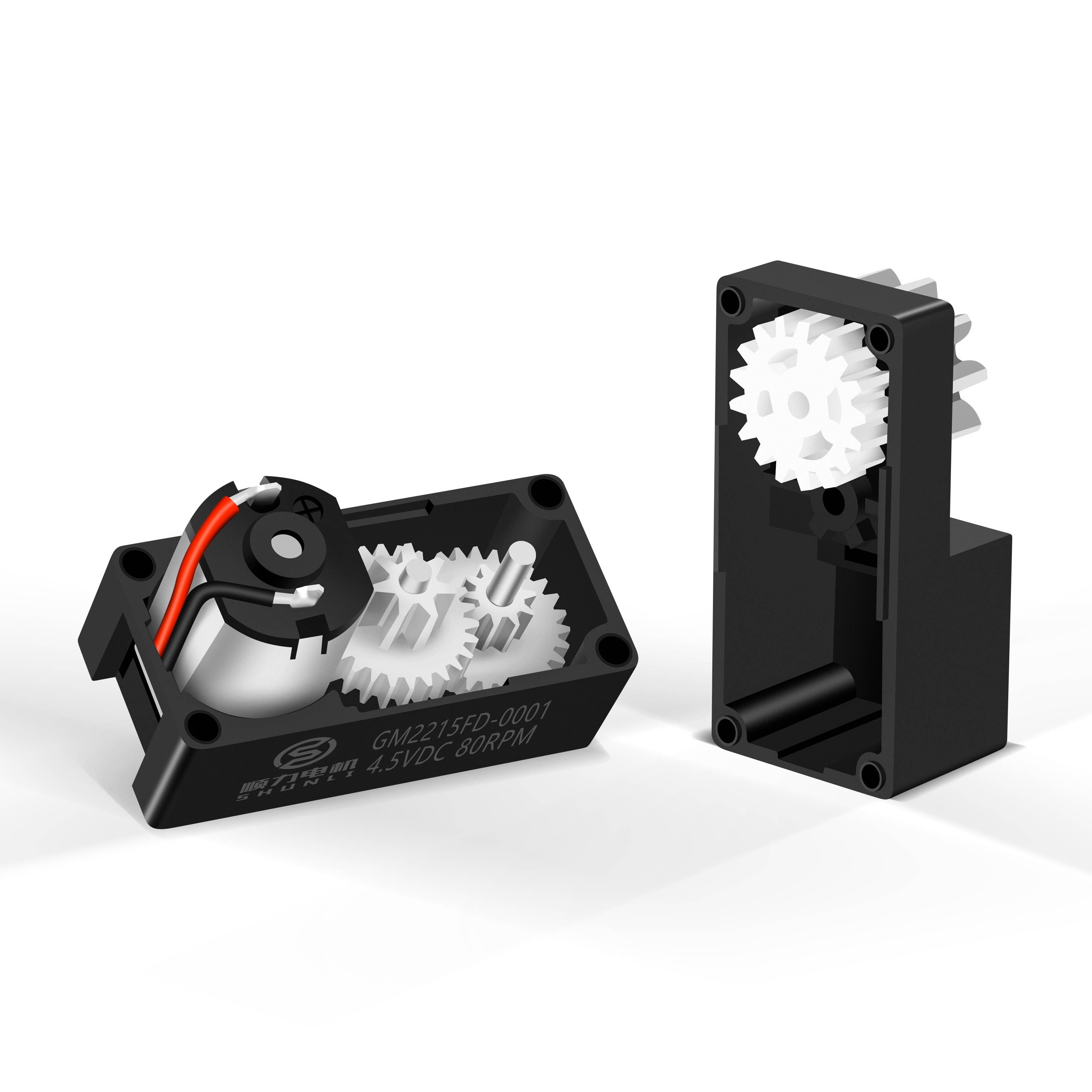

4.5v Dc Gear Motor for Electric Lock Low Rpm 60rpm Shunli Permanent Magnet Brush Customized 30-100RPM
Product Description
Promotion
4.5v DC Gear Motor for Electric Lock Low RPM Motor 60rpm DC Gear Motor
Product Description
Specification
Gearbox Technical Data
| Ratio | 241k |
|---|---|
| Max. Rated Torque | 1.5~2.0 Kgf.cm |
| Max. Gear Breaked Torque | 4~5 Kgf.cm |
| Gearbox Efficiency | 45%~60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM2215FMN20-241K | 1 : 241 | 4.5 VDC | 43 | ≤ 50 | 34 | ≤ 120 | 25 / 250 | ≤ 350 | 0.15 / 1.5 |
| 58 | ≤ 65 | 50 | ≤ 130 | 28 / 280 | ≤ 680 | 0.18 / 1.8 | |||
| 68 | 75 | 56 | ≤ 140 | 30 / 300 | ≤ 750 | 0.2 / 2.0 | |||
PMDC Motor Technical Data
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 680 | 1.5 / 15 | |
| 04516500 | 4.5 VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25 / 2.5 | ≤ 750 | 1.8 / 18 | |
Application
Customer Evaluation
Certifications
Why Choose Us
1. Production Experience
We are a factory specialized in producing motors for more than 14 years. A professional R&D team and mature management will bring you a pleasant purchasing experience.
2. Quality Control
In order to confirm quality, every step from raw material receiving to final shipment is carefully checked. Quality is the very basis of our development.
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of production experience.
2. What is the payment term for a new customer?
We can establish an online Assurance Order for new customers, supporting online payment via Master Card, Visa, etc. Customers can also pay via PayPal or T/T.
3. Can you customize a motor if I cannot find a suitable model on your website?
Yes, we can customize and manufacture suitable motors according to our customers' specific technical requirements.
4. Do you have quality certificates for your motors?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standard credentials. If you require other specific certificates, we can apply for them accordingly.
5. How do you manage Quality Control?
We have professional inspection personnel assigned to every stage of the production line. Once the motor assembly is completed, we run comprehensive diagnostics using dedicated equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
6. What applications are these 4.5V DC gear motors best suited for?
These low RPM, high torque DC gear motors are specifically designed for applications like electric lock systems, smart security devices, automation mechanisms, and compact robotics.
