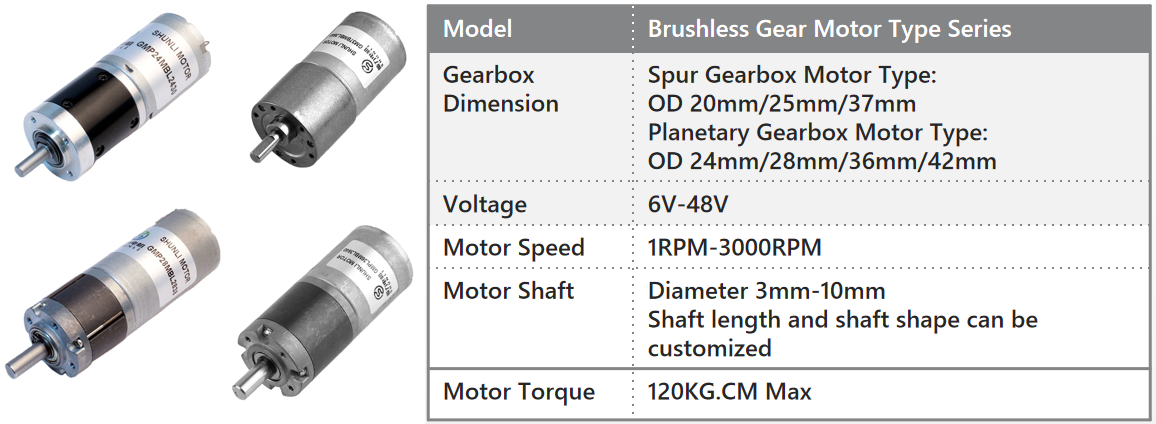

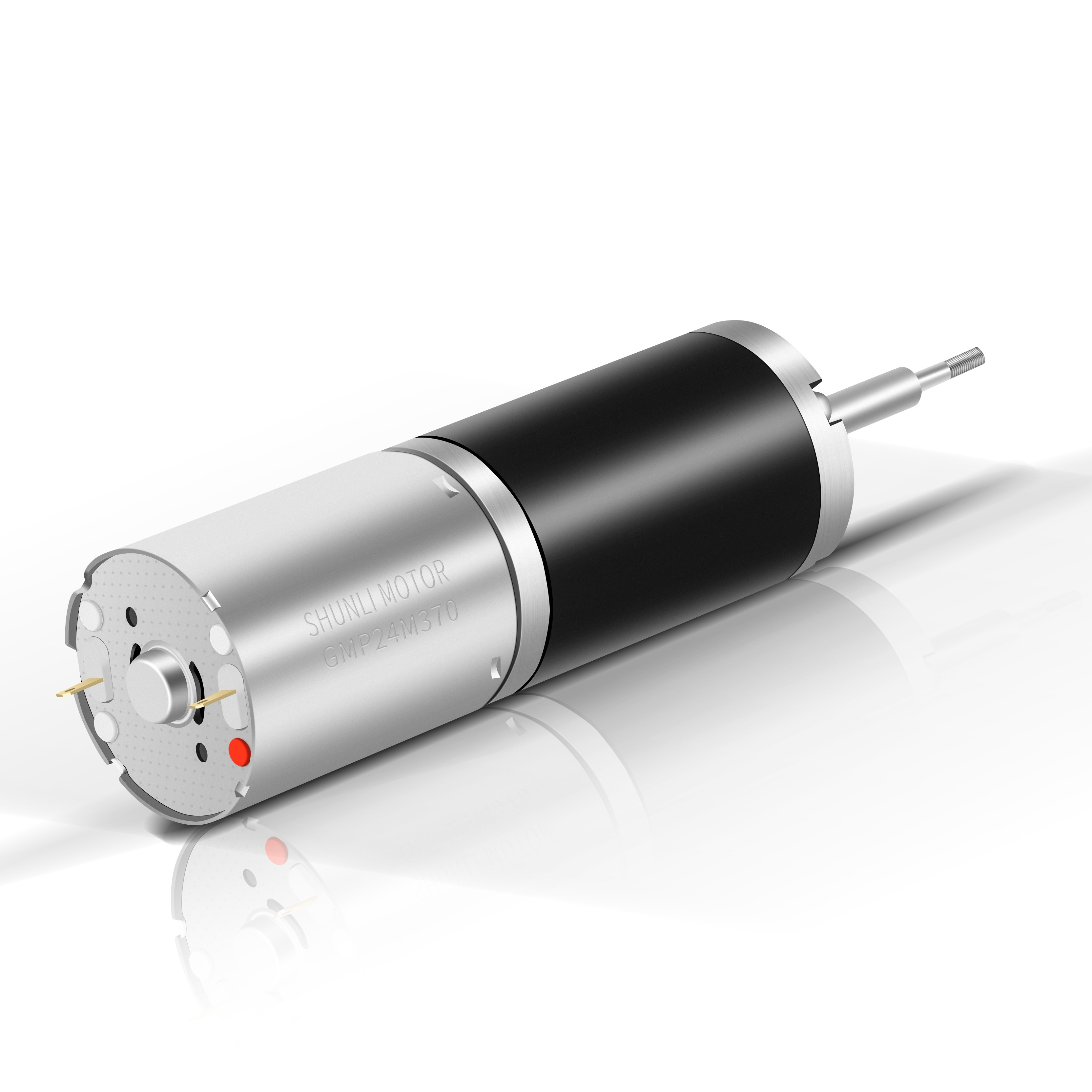

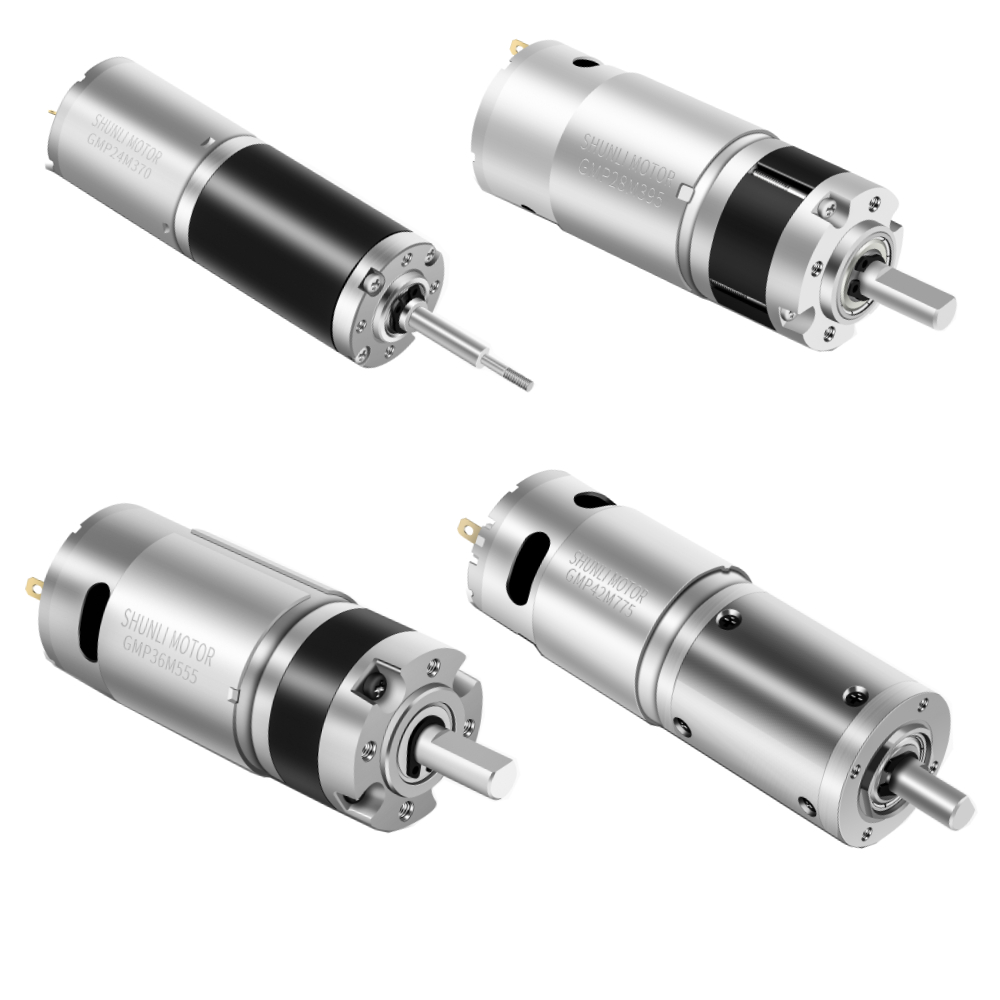

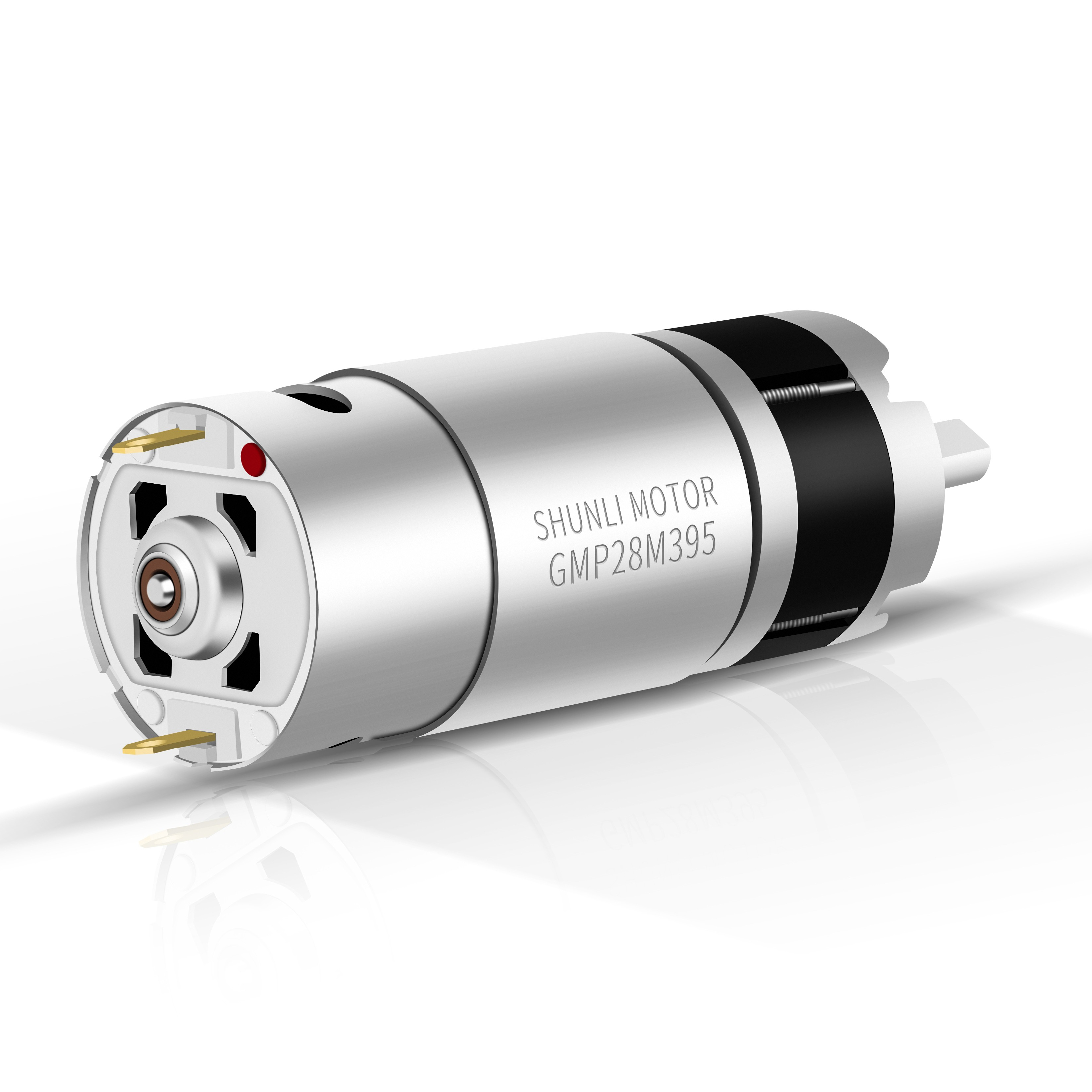

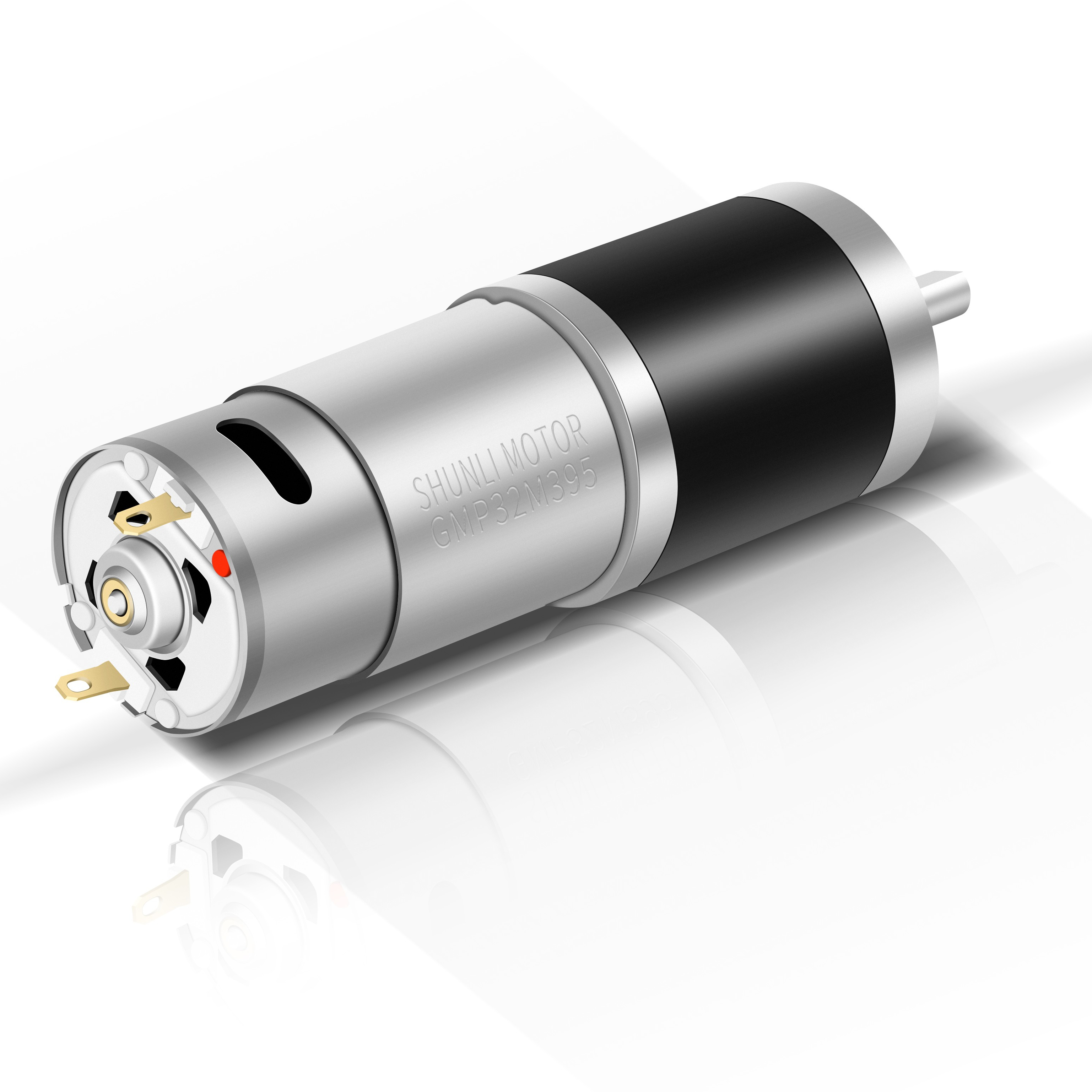

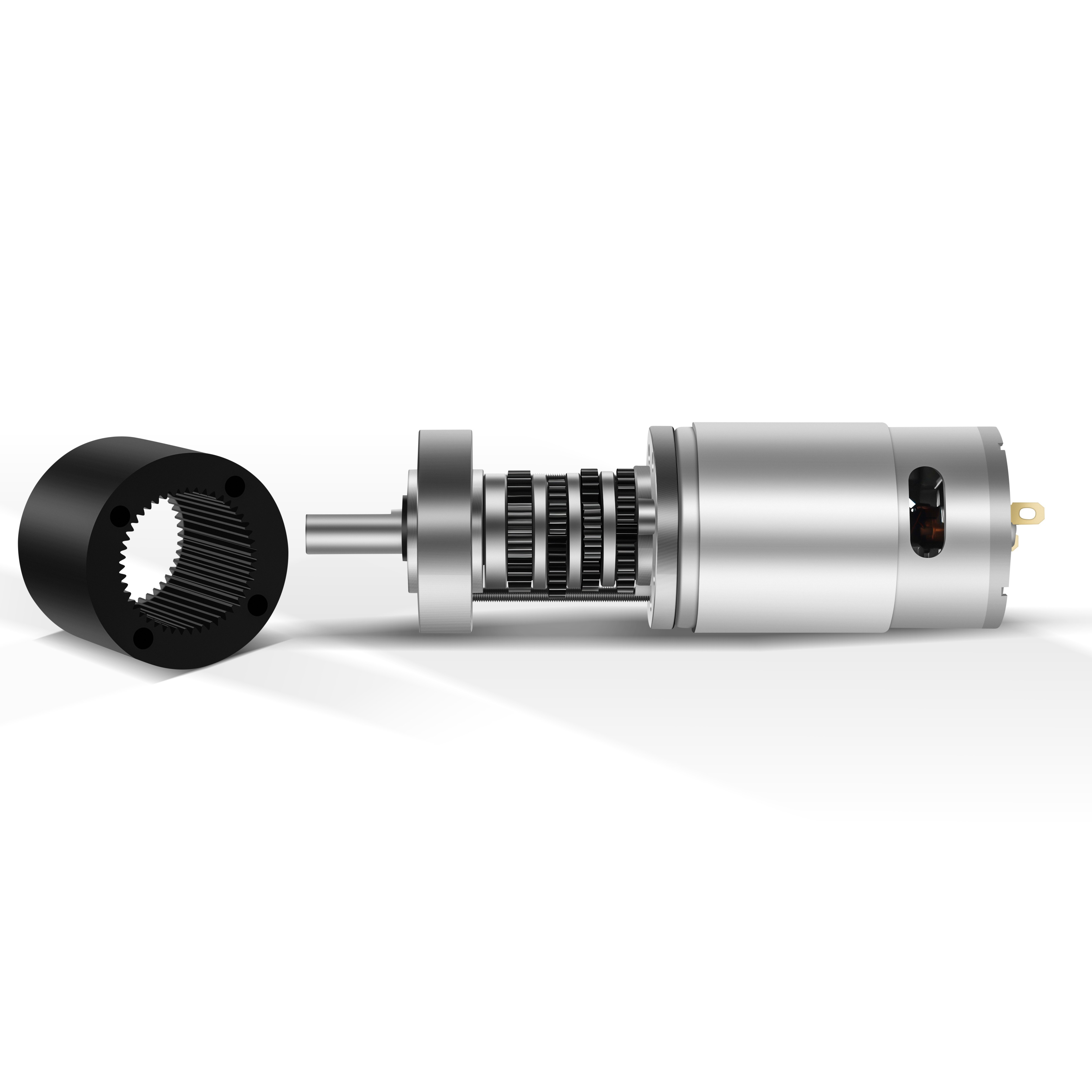

High Torque 12v 24v Brushless Dc Motor with Gear Reduction Planetary Gear Motor for Robot Components
Product Description
Promotion
Product Description
Product Details
The price & technical specification of different motor types is different, kindly contact our engineer sales service if you're interested in it.
Specification
Gearbox Technical Data
| Ratio | 3.4K - 5184K |
| Max. Rated Torque | 0.5~120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45%~95% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||
| GM25AMBL2430-217K | 1 : 217 | 12 VDC | 18 | ≤ 120 | 15 | ≤ 200 | 0.45 / 4.5 | ≤ 950 | 0.21 / 2.1 |
| GM37BMBL3657-113QK | 1 : 113 | 24 VDC | 58 | ≤ 400 | 48.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |
| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |
| GMP42MBL4260-325K | 1 : 245 | 24 VDC | 10 | ≤ 300 | 8 | ≤ 1200 | 6N.M / 60KG.CM | ≤ 4800 | 20 / 200 |
Outline Drawing

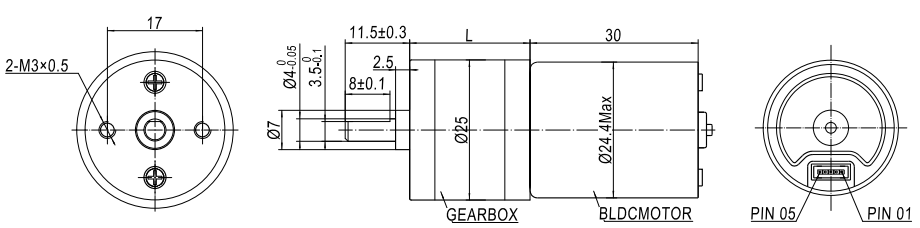

GM25 Motor Type

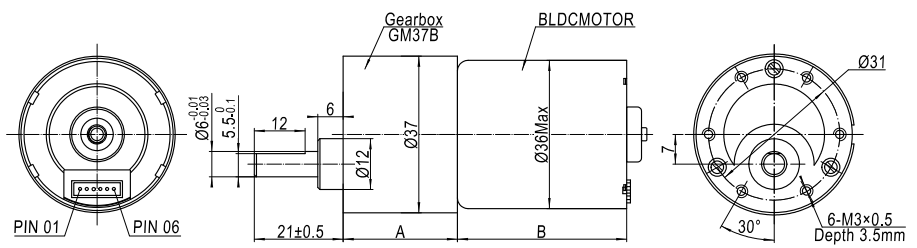

GM37 Motor Type

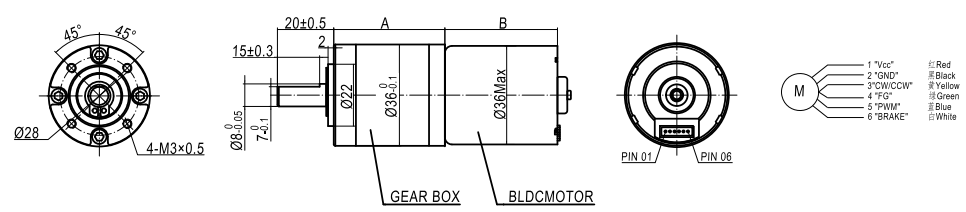

GMP36 Planetary Gear Motor Type

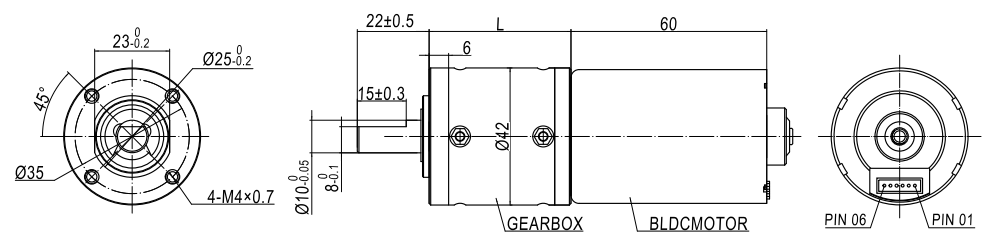

GMP42 Planetary Gear Motor Type
Certificate
Customer Evaluation
Application

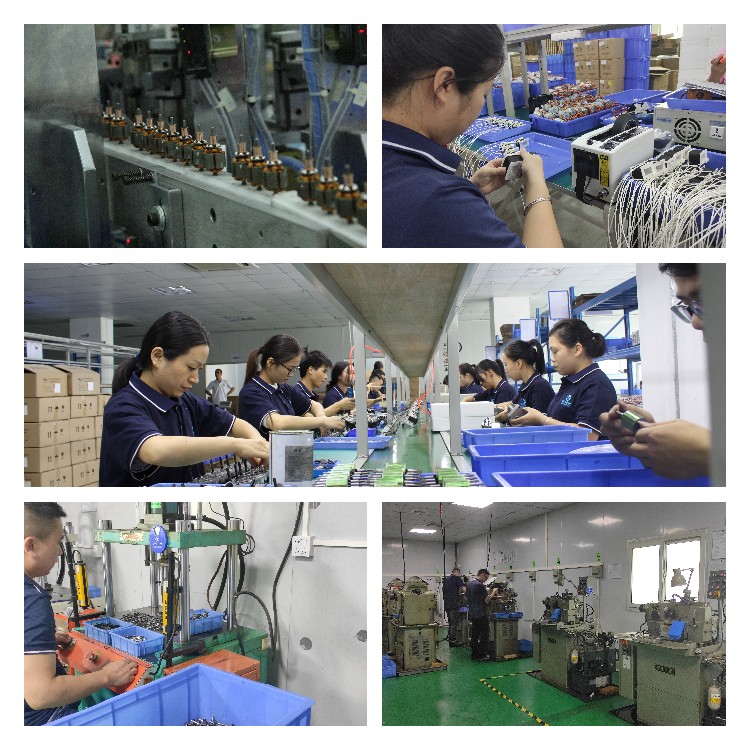

Our Factory
Established in 2005, our factory is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. Our products are exported to more than 50 countries and regions worldwide.

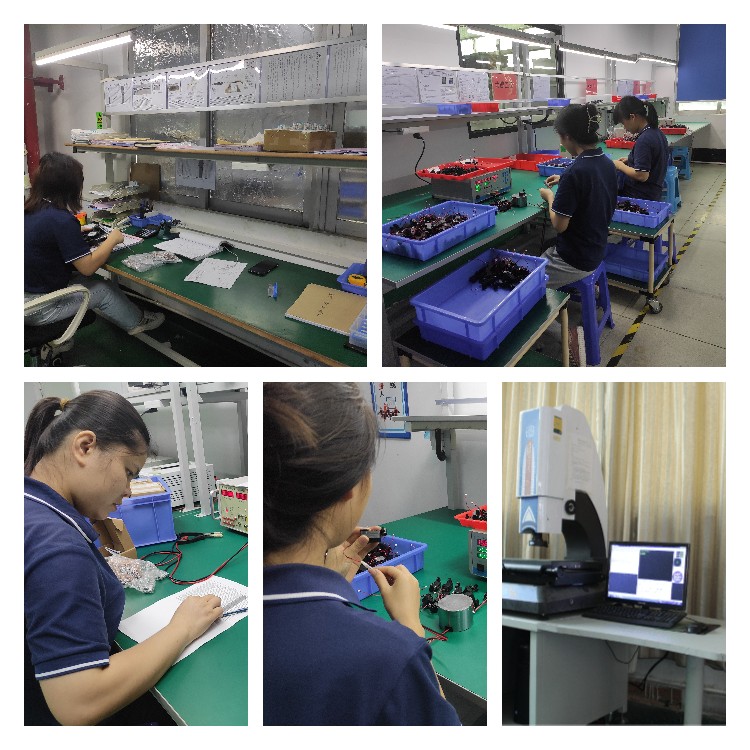

Quality Control
In order to confirm quality, from received materials to shipment, every step of the way is carefully checked. Quality is the basis of our development.
Our Service
Gold seller and in possession of high credibility.
100% on-time delivery rate confirms your product arrives timely.
Standard samples within 2 weeks. Customized samples within 3 weeks.
Timely reply, technical service support. Your message will be replied within 2 hours.
FAQ
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with MasterCard, Visa, etc. Customers can also pay with PayPal, TT, etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we use inspection machinery to test the motor, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What is the lead time for mass production?
Typically, mass production takes about 3 to 4 weeks depending on the order quantity and customization requirements. We always ensure strict quality checks before dispatch.
