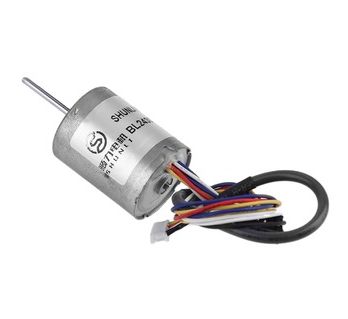

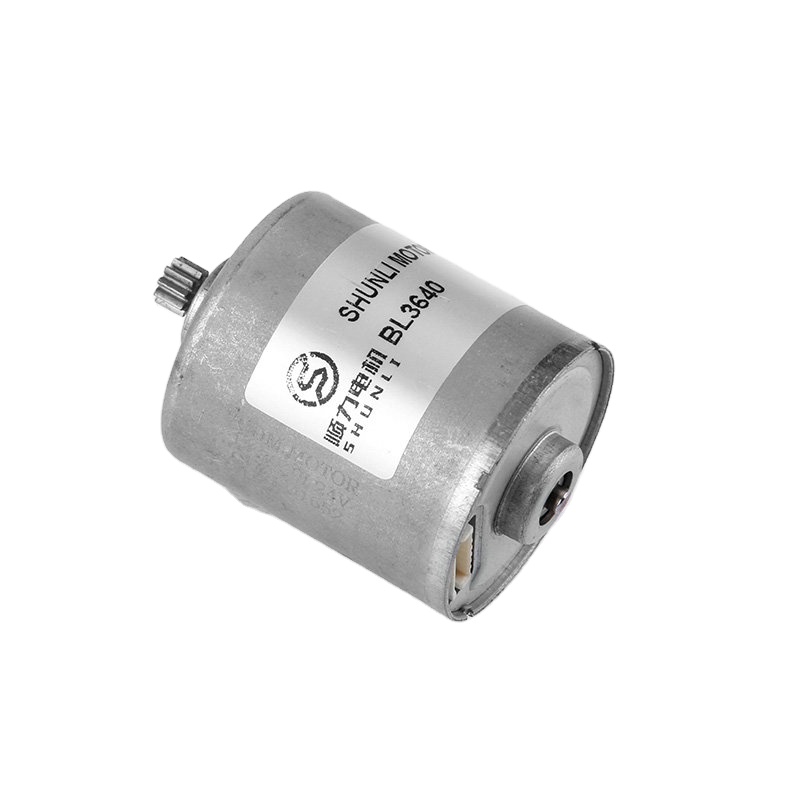

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
Product Description
Product Description
12V 18V 24V high speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC motor for fan
Product Details
Motor Customized Specification, Please Contact Us.
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
Reference Datasheet

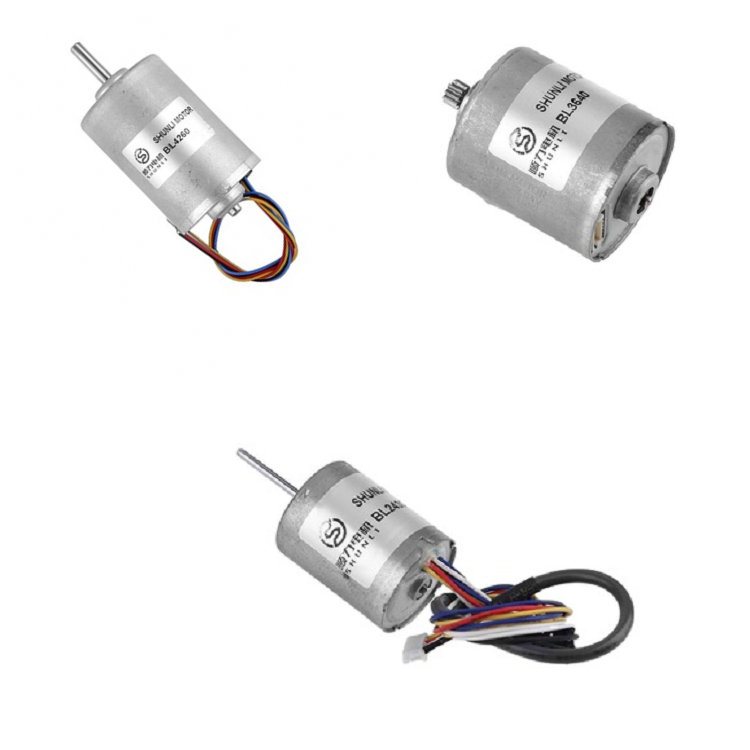

Product Gallery
Frequently Asked Questions
What voltage options are available for this brushless DC motor?
This 36 mm brushless DC motor supports multiple rated voltage options, including 12V, 18V, and 24V, to fit different fan and blower configurations.
What are the maximum speed capabilities of this BLDC motor?
The motor is designed for high-speed performance, capable of operating at speeds of 20000 RPM, 30000 RPM, and up to 40000 RPM depending on the model and voltage input.
What is the torque specification for this 36 mm motor?
This motor provides high torque output ranging from 100 G.CM to 150 G.CM, making it highly efficient for demanding air-cooling applications.
How are the pins arranged for electrical termination?
The motor features a 5-pin termination layout: Pin 1 for VCC (Power), Pin 2 for FG (Frequency Generator/Speed feedback), Pin 3 for CW/CCW (Direction control), Pin 4 for GND (Ground), and Pin 5 for PWM (Speed regulation).
Can this high-speed motor's specifications be customized?
Yes. While the standard specifications serve as a reference, customized parameters for speed, voltage, torque, and mounting are available to meet your project's technical requirements.
