China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Product Description

Product Overview

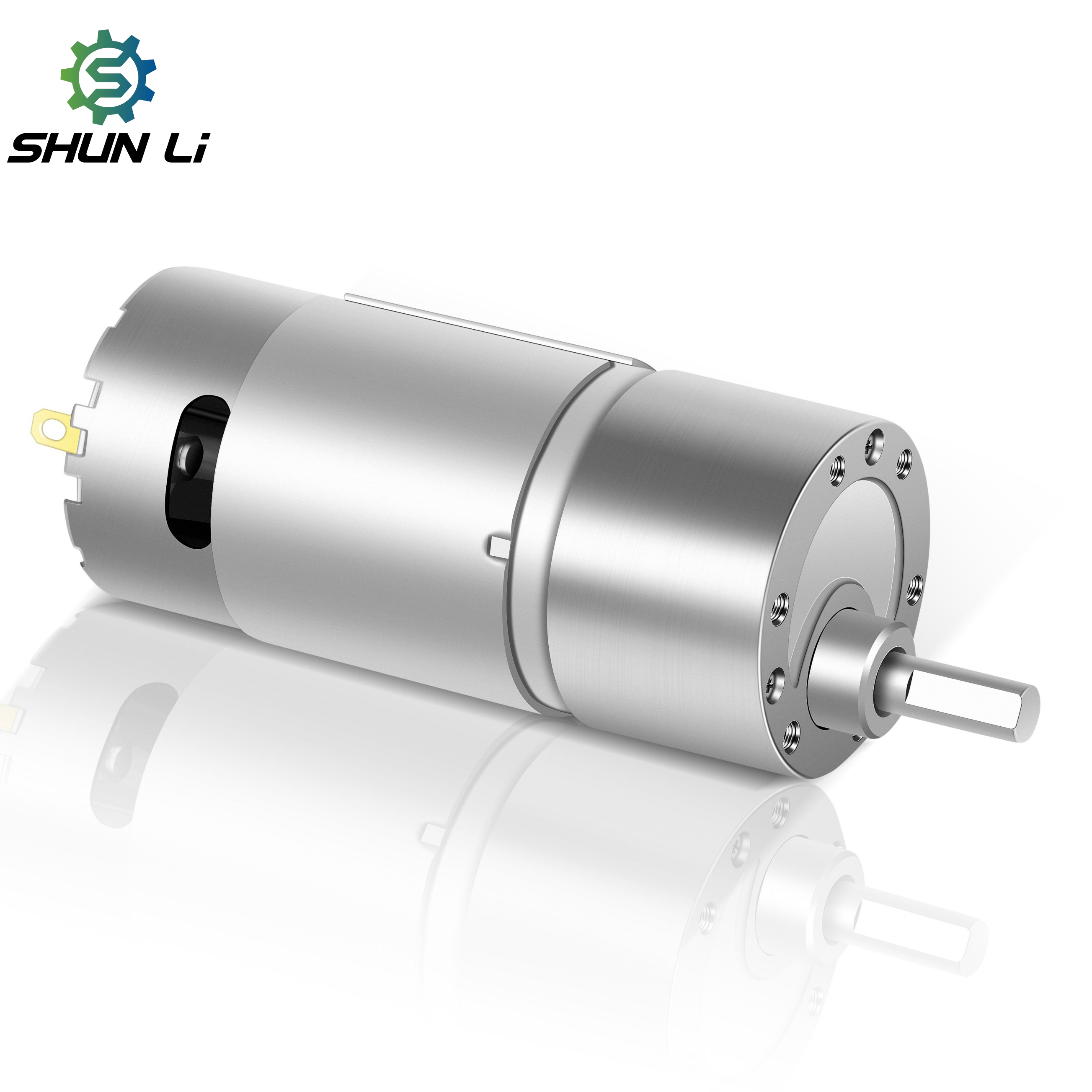

Product Details
Key Specifications
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V/24V/12V
Torque 0.85 N.m/1.8 N.m/2.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

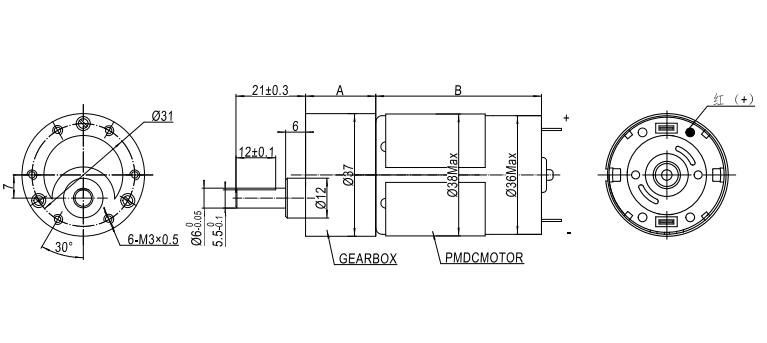

Technical Specifications Diagram

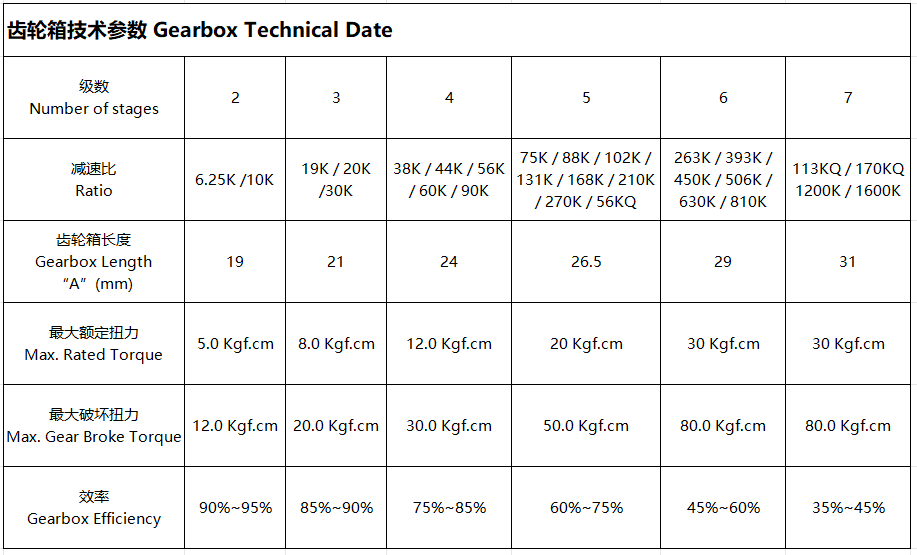

Dimensions Drawing

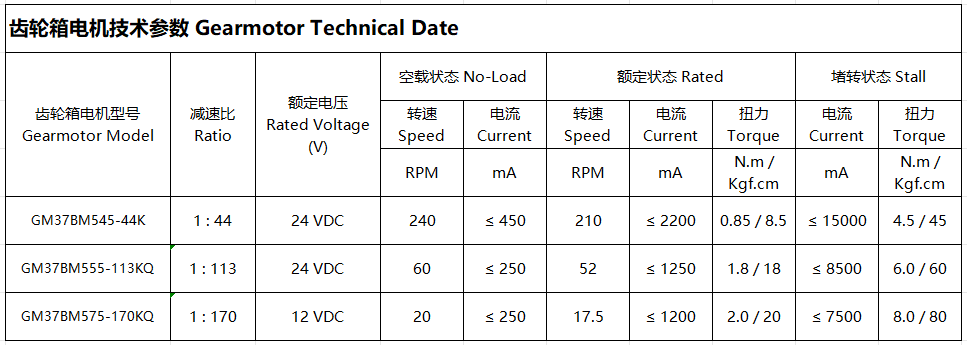

Performance Chart
Frequently Asked Questions

QAre you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors with more than 14 years of professional experience.

QWhat is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, supporting online payments such as Mastercard and Visa. Customers can also choose to pay via PayPal or TT.

QIf I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize and manufacture a suitable motor according to our customers' specific requirements.

QDo you have certificates for your motors?

Yes, we have CE, FCC, ISO, and other relevant certificates. If you have additional certification requirements, we can apply for them for you.

QHow do you handle Quality Control?

We have professional checking staff on every production line process. After completion, we utilize full quality testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

QCan the gearbox length and other parameters be customized?

Yes. The overall transmission dimensions, gearbox length (typically between 50mm-65mm), speed, voltage, torque, and other motor parameters can be fully customized to meet your application demands.
