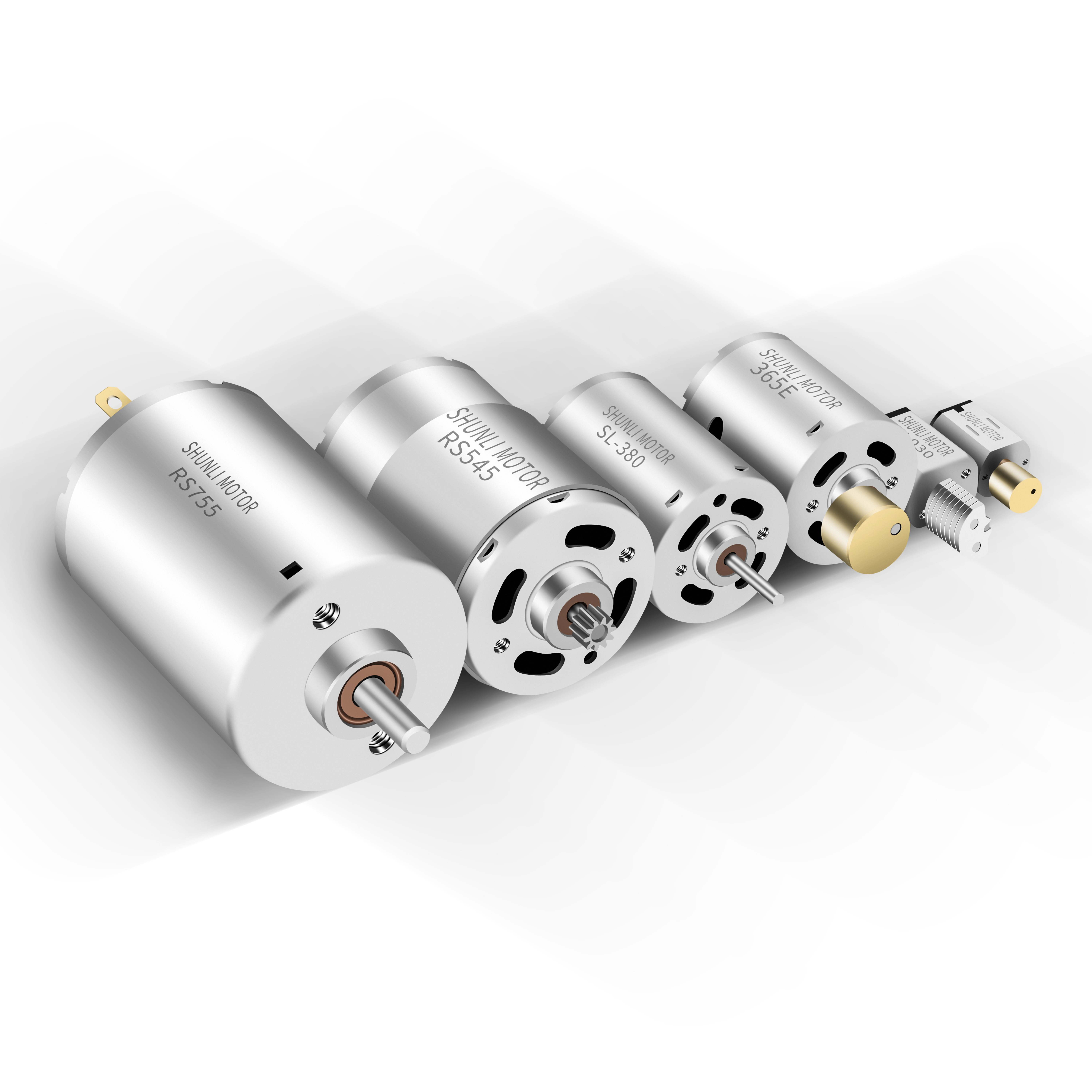

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
Product Description
⚙️ Application
🚀 6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM
Product Details
| PMDC MOTOR Technical Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | ||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | |

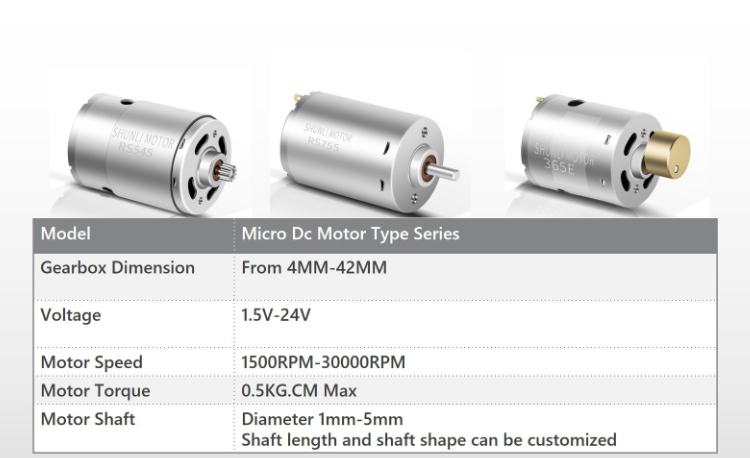

RS - 545 A Specifications

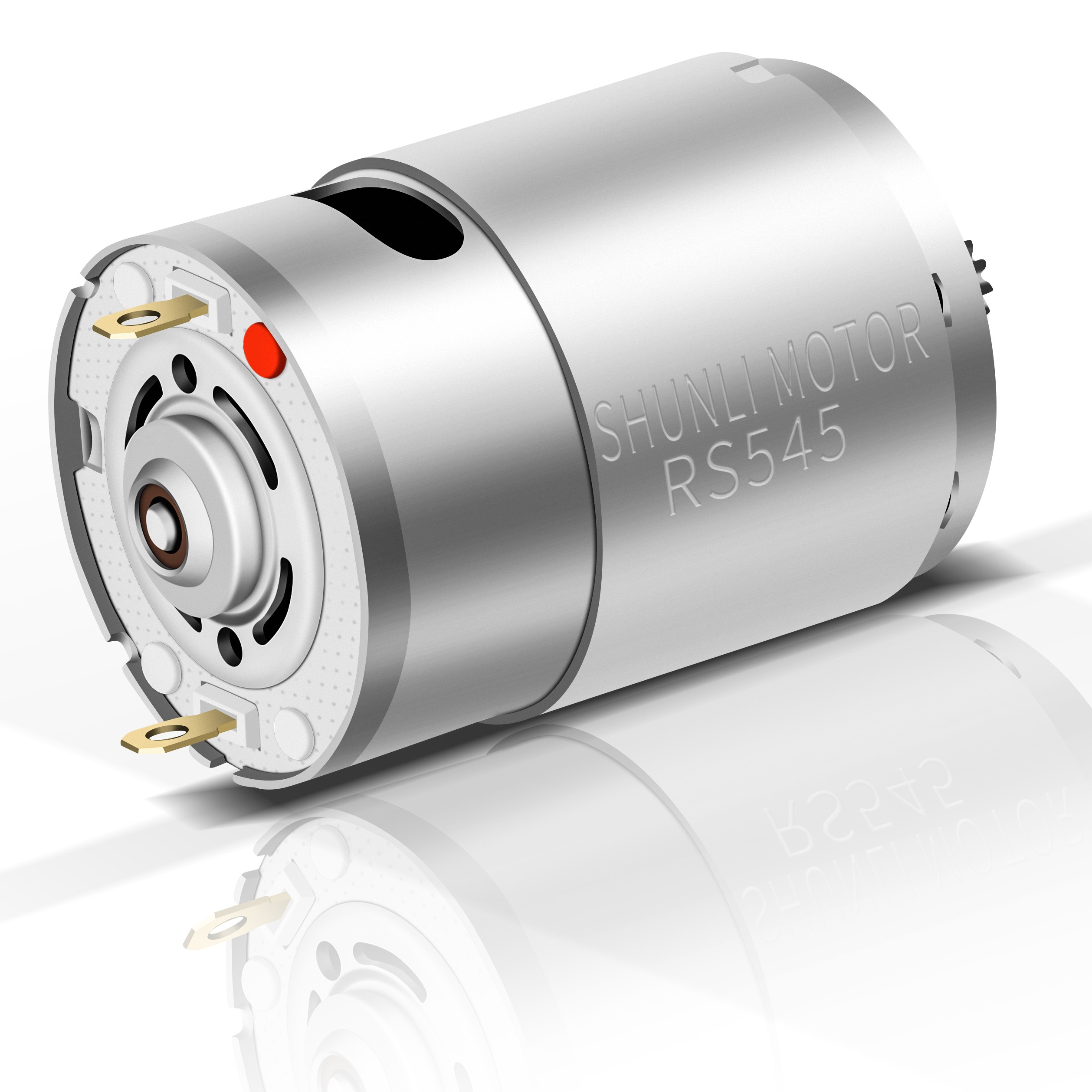

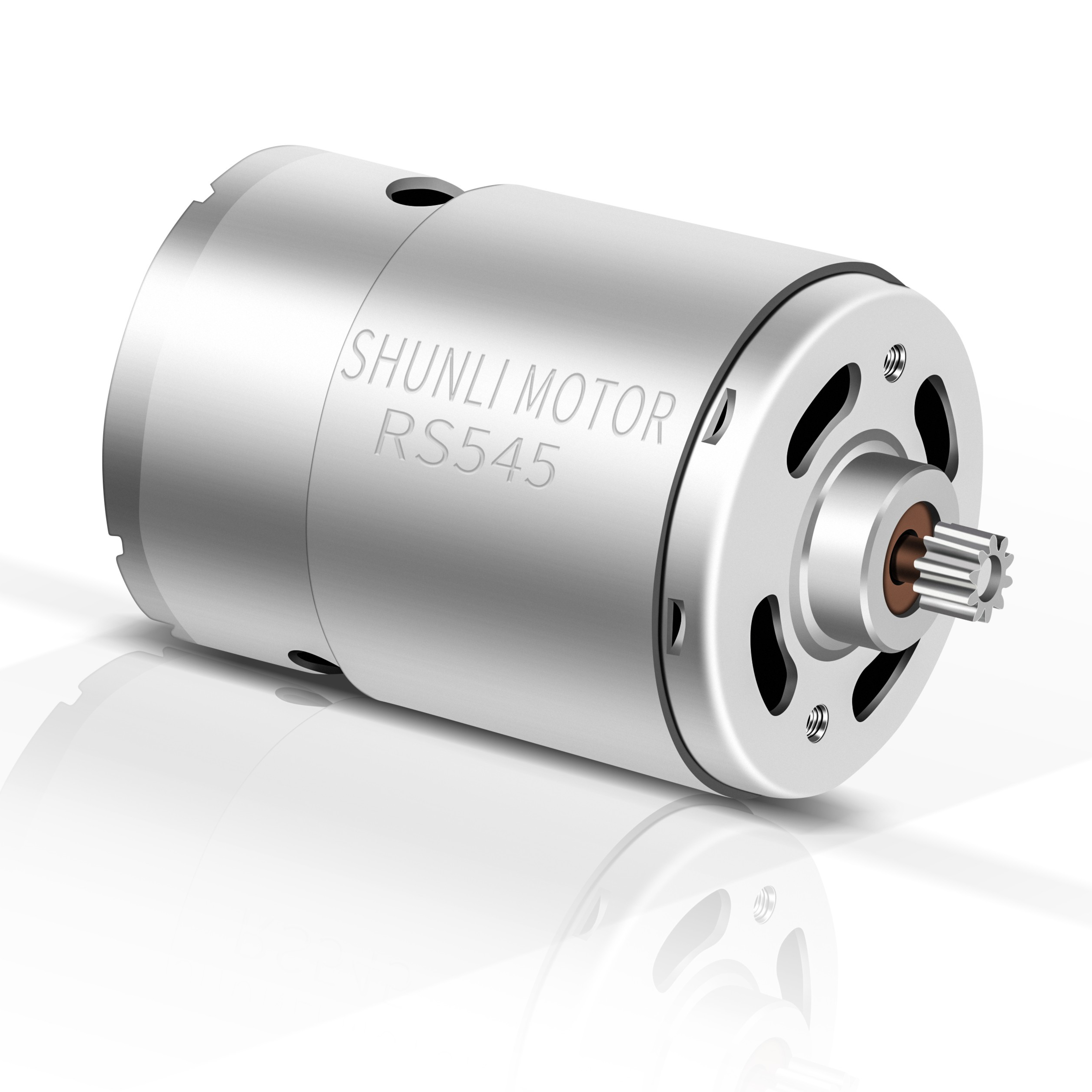

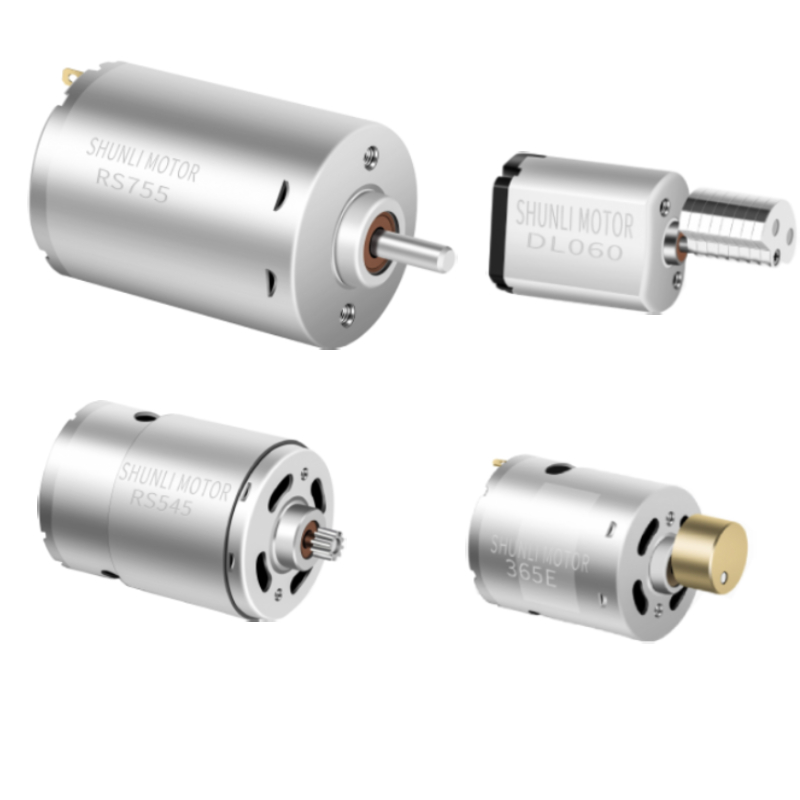

📸 Product Gallery
⚙️ Performance Highlights
❓ Frequently Asked Questions
💡 Q1: What is the operating voltage range for RS-550, RS-545, and RS-555 motors?
These PMDC motors support a flexible operating range typically between 6.0V and 24.0V DC, depending on the specific model winding and configuration.
💡 Q2: What speeds can these high RPM DC motors reach?
The speed depends on the model and voltage applied. For instance, the RS-550H (6034 model) can reach up to 16,000 RPM at 12VDC under no-load conditions, and customized versions can run at higher speeds up to 30,000 RPM.
💡 Q3: Can the technical specifications of the motors be customized?
Yes, physical dimensions, shaft extensions, operating voltage range, rated speed, torque, and current configurations can be customized based on application demands.
💡 Q4: What are the main differences between RS-550H and RS-555H models?
The main differences lie in internal armature design, winding turns, load currents, torque output, and motor length, which allow them to cater to different speed and power efficiency requirements.
💡 Q5: What are the typical applications for these micro PMDC motors?
These motors are widely used in power tools (like cordless drills), home smart appliances, RC models, industrial automation actuators, automotive components, and DIY electronics requiring compact size with high output torque.
