12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor
Product Description
Product Description

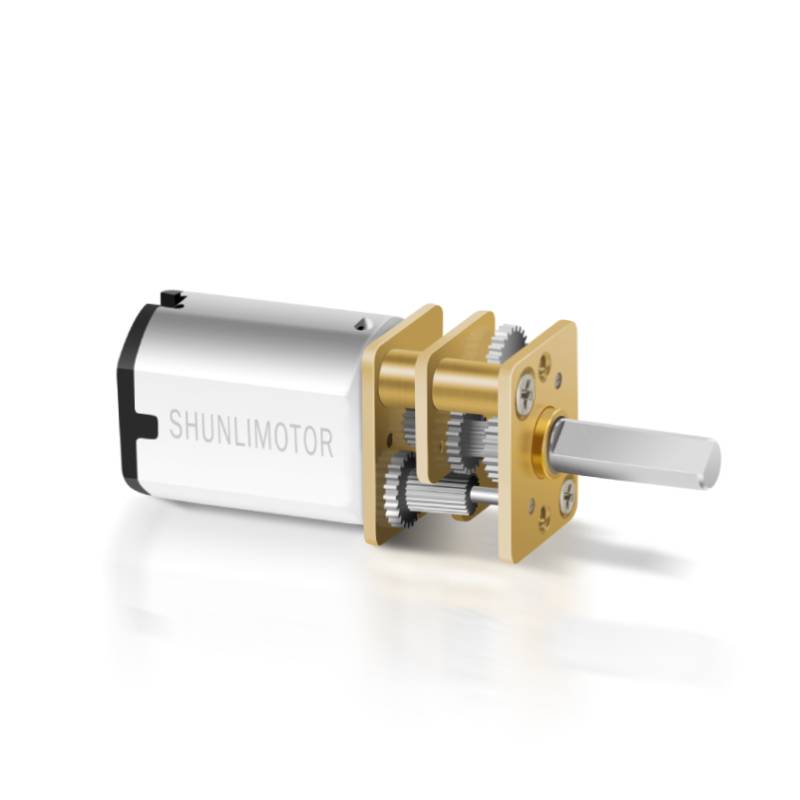

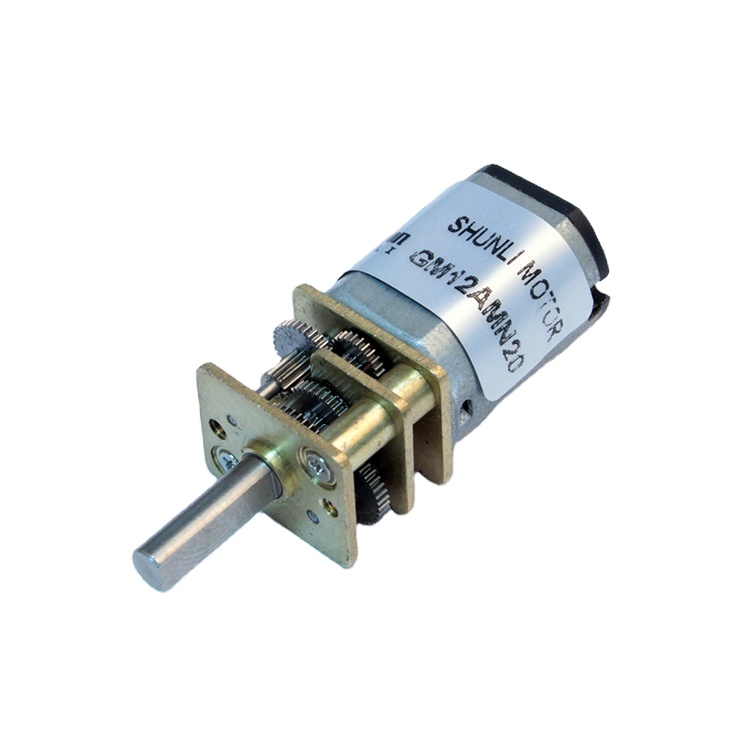

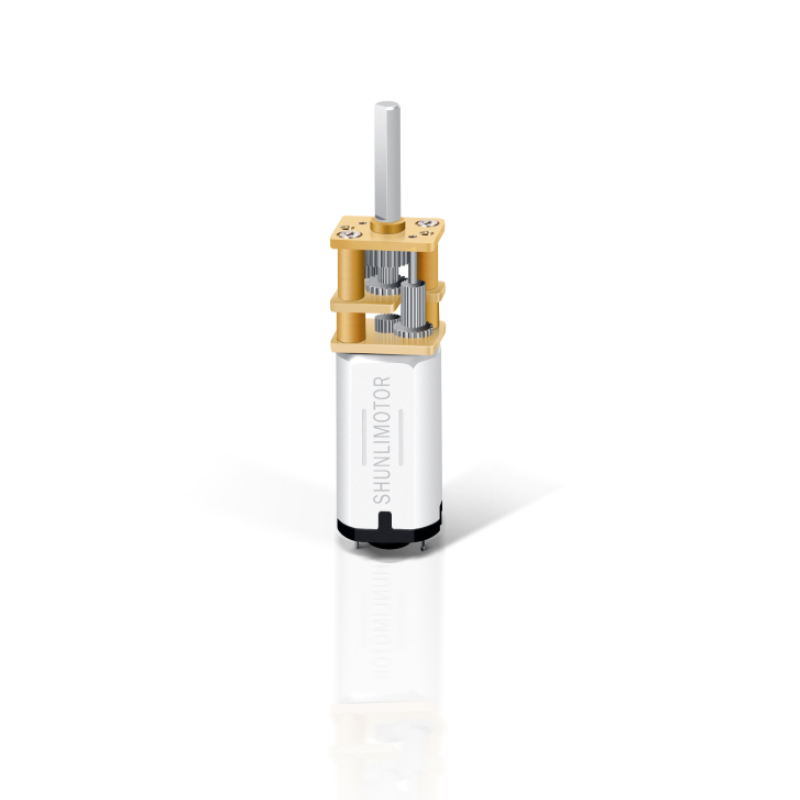

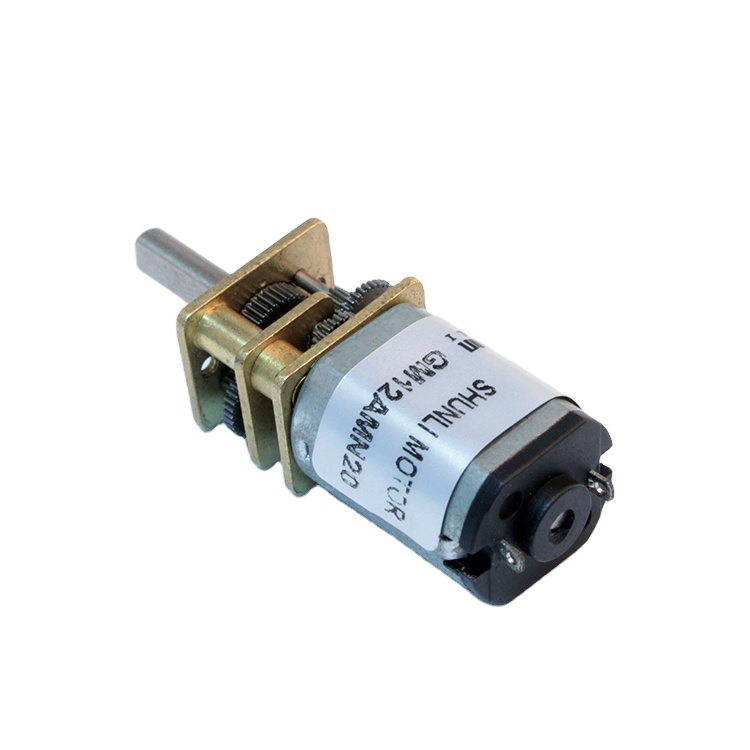

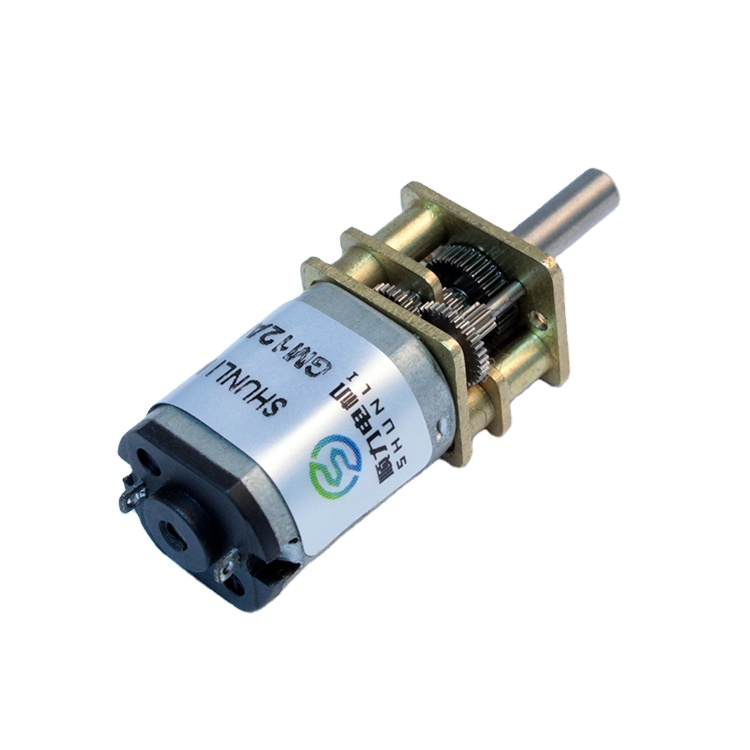

12mm Motor with Gearbox for Smart Home Appliance 6V 12Volt DC Small Gear Motor

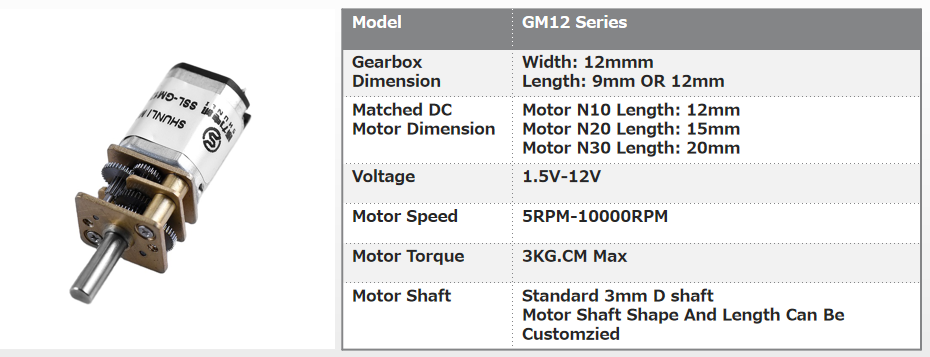

Product Details
Motor Customized Specification, Please Contact Us.

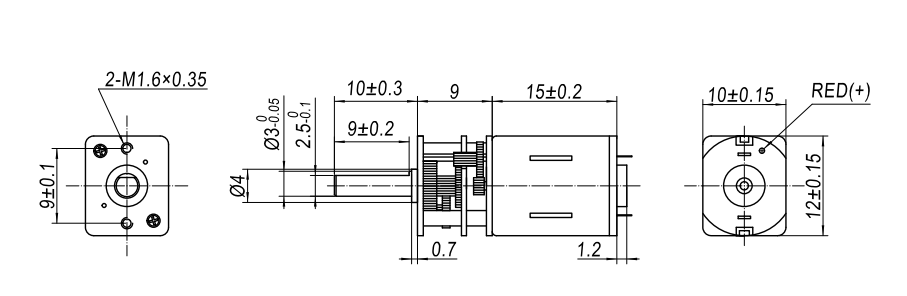

Reference Drawing

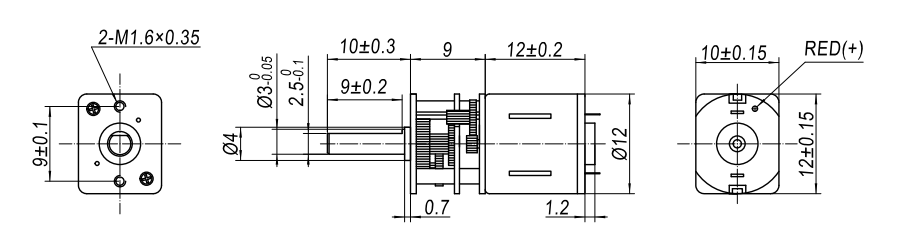

------ GM12AMN10
----- GM12AMN20

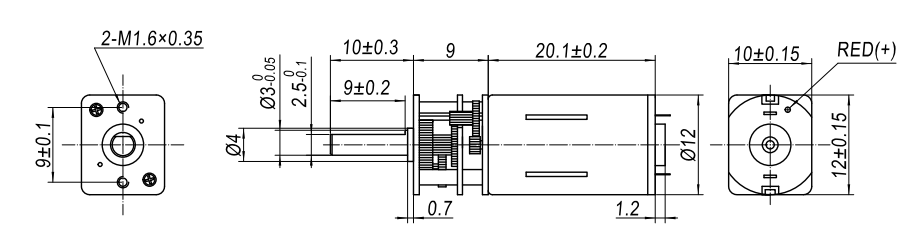

----- GM12AMN30
Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1 : 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
Gearbox Technical Data
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|
| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K |
110K/150K/210K/ 250K/298K/380K |
372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
Application
Certifications
Customer Evaluation
Why Choose Us
1. Manufacturing Strength
We are a factory specializing in producing motors for more than 14 years. With three specialized factories, a professional R&D team, mature management processes, and highly experienced engineering and sales personnel, we ensure a smooth and reliable production and shopping experience.
2. Quality Control System
Quality is the foundation of our long-term development. To guarantee high standards, everything is meticulously checked at every stage—from raw material receipt right up to shipment.
Our Services
We are a high-credibility seller committed to excellent business values.
100% on-time delivery rate ensures your products arrive exactly when expected.
Standard samples will be ready within 2 weeks. Customized samples are produced within 3 weeks.
Fast communication response: any message will be replied to within 2 hours.

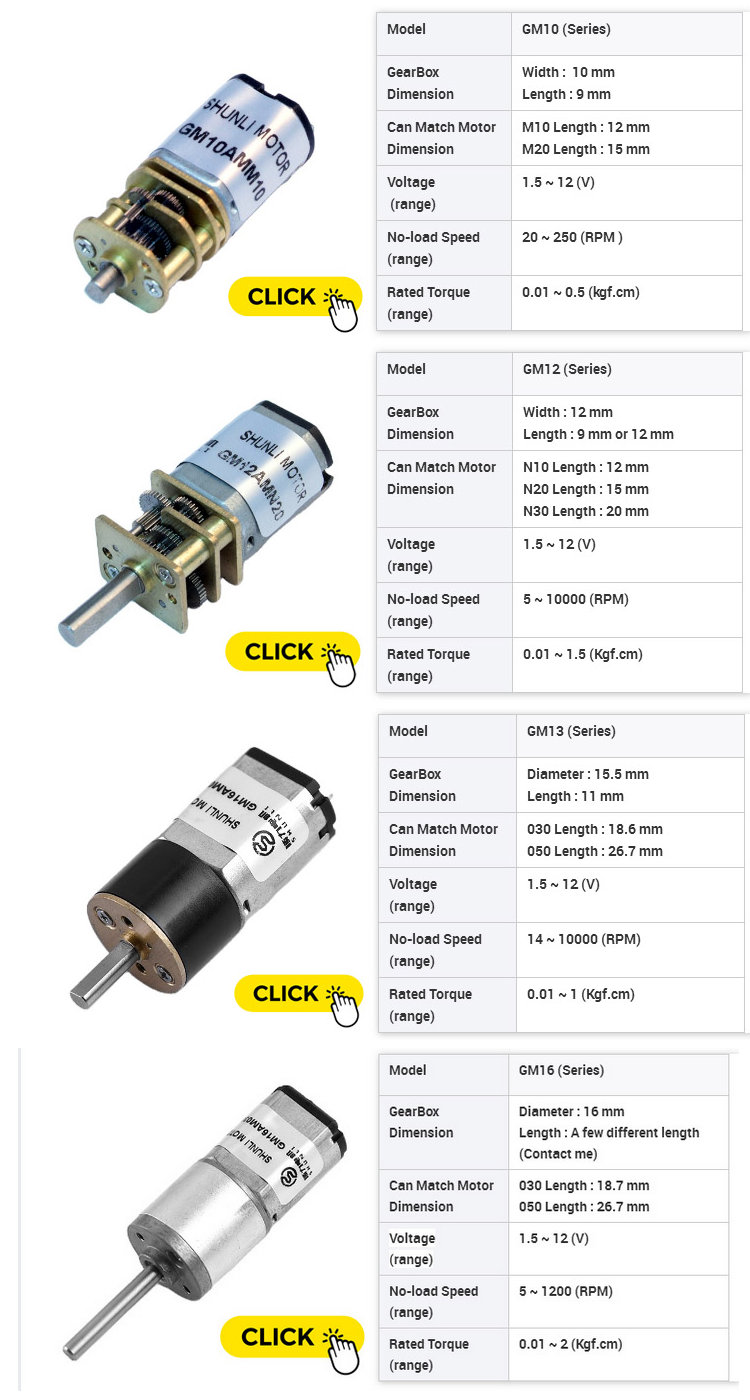

May Be You Like
Give us a chance to cooperate with you!
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for over 14 years.
What payment terms do you offer for new customers?
We support online trade assurance orders (which allow payment online via Visa, MasterCard, etc.), PayPal, and wire transfers (T/T).
Can you customize a motor if I cannot find a suitable one on the website?
Yes. We specialize in custom solutions and can build a suitable motor layout based on your exact requirements.
Do your motors carry quality certificates?
Yes. Our motors hold standard certifications like CE, FCC, ISO, and others. We can apply for additional certifications if required.
How do you control quality in production?

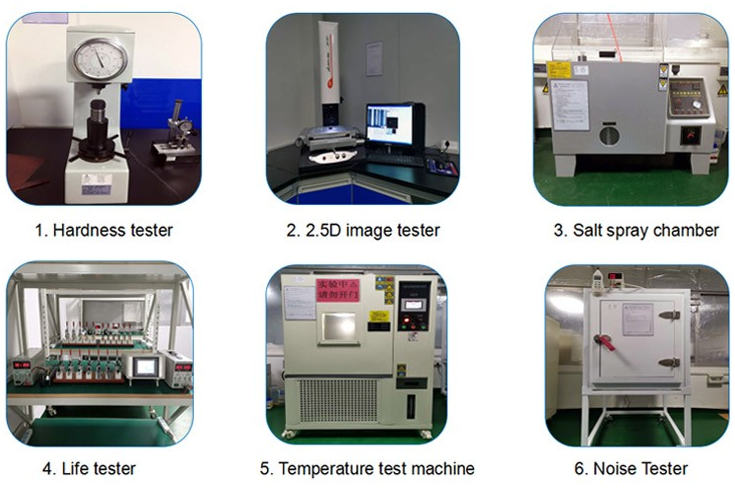

We deploy professional inspectors across every stage of the production process. The final product is tested on specialized machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
