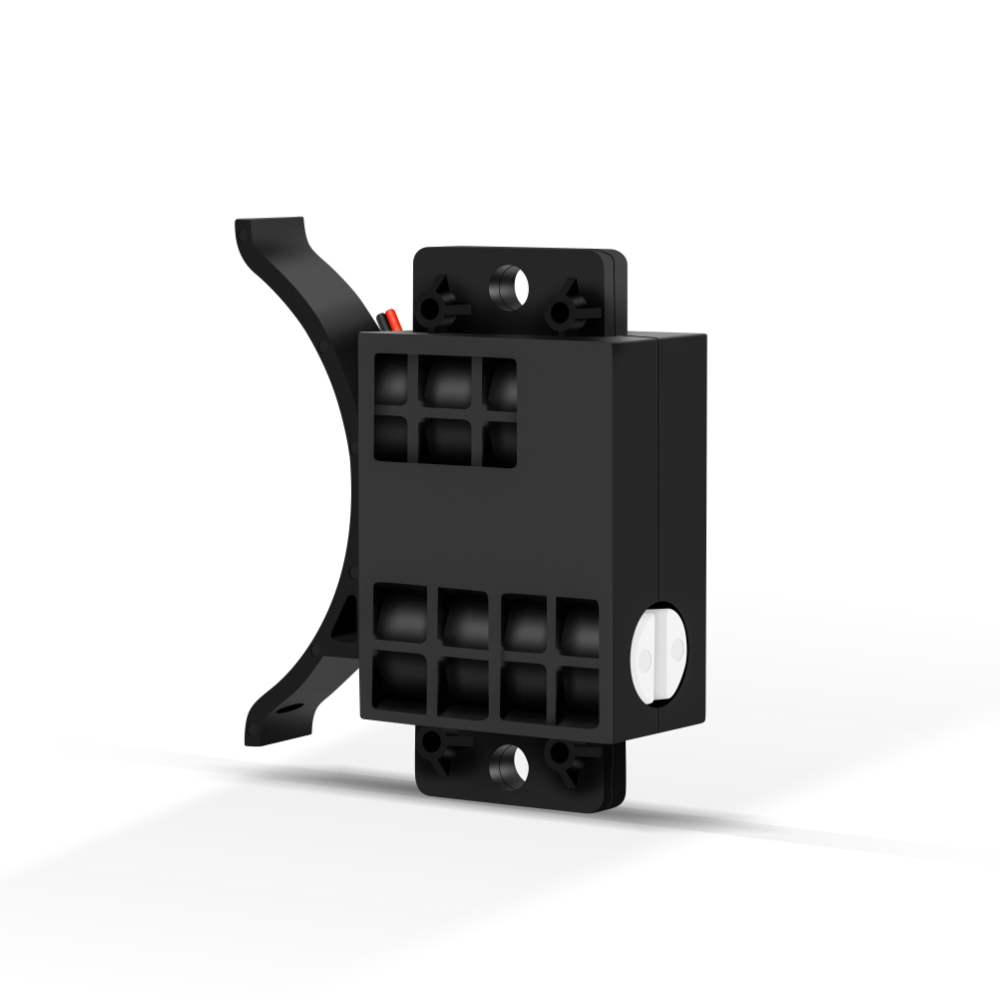

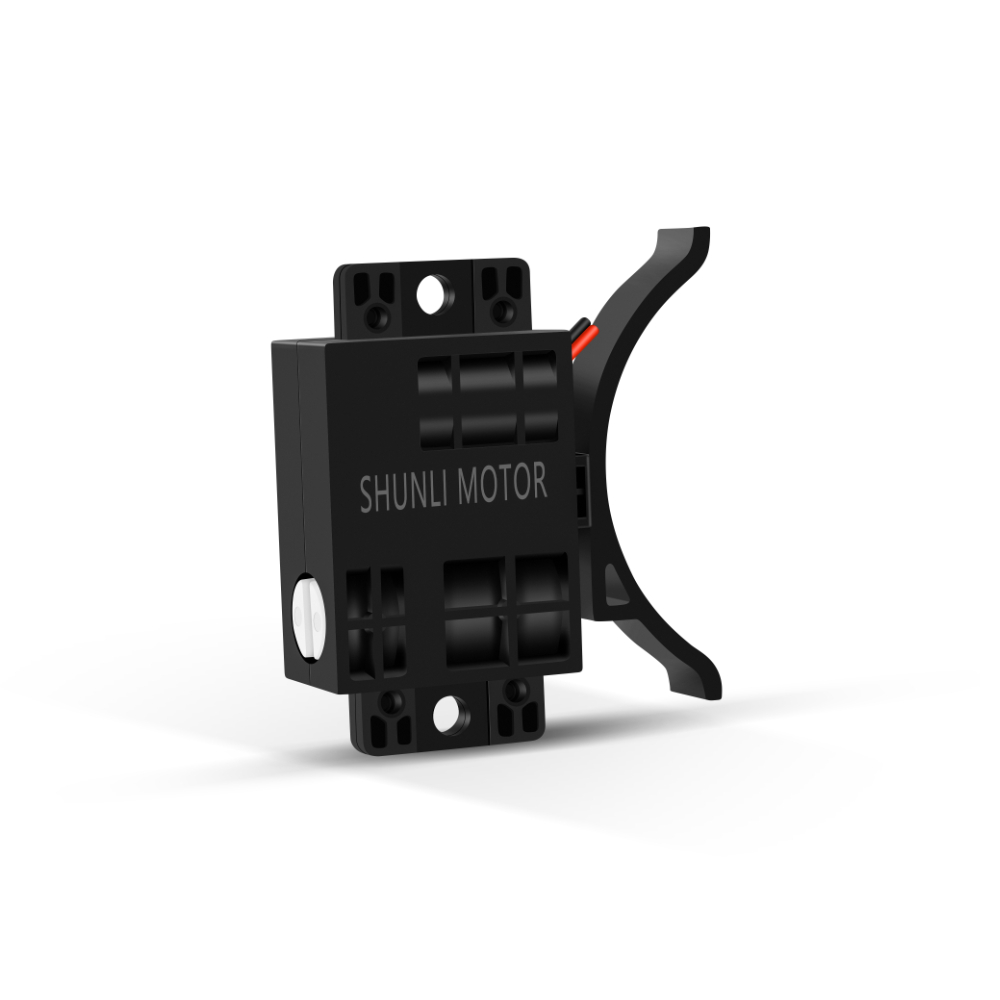

Shunli Vibration Dc Gear Motor 3V 6V 12V 1.4-1.6A 65RPM 75RPM 85RPM Hight Torque Coin Dc Gear Motor for Smart Lock
Product Description
Vibration Dc Gear Motor 3V 6V 12V 1.4-1.6A 65RPM 75RPM 85RPM 3KG.CM High Torque Coin Dc Gear Motor For Lock
Promotion
Product Description

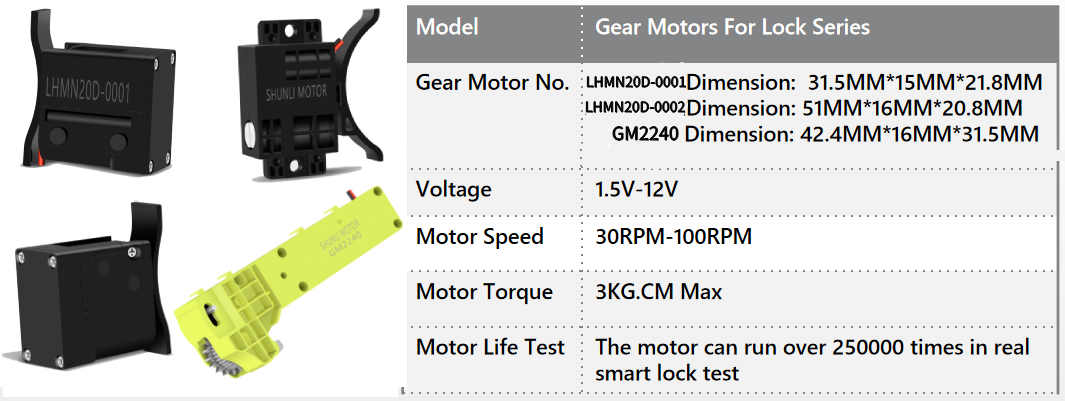

Specification
Gearbox Technical Date
| Ratio | 241k |
|---|---|
| Max. Rated Torque | 1.5~2.0 Kgf.cm |
| Max. Gear Breaked Torque | 4~5 Kgf.cm |
| Gearbox Efficiency | 45%~60% |
Gearmotor Technical Date
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM2240 | 1 : 241 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤120 | 18 / 180 | ≤ 350 | 0.18/0.18 |
| 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |||
| 68 | 75 | 56 | ≤ 140 | 26/260 | ≤ 750 | 0.22/ 2.2 | |||
PMDC MOTOR Technical Date
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25/ 2.5 | ≤ 680 | 1.5/15 | |
| 04516500 | 4.5VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25/ 2.5 | ≤750 | 1.8 / 18 | |
Application
Customer Evaluation
Certifications
Why Choose Us
1. Factory Experience
We are a factory specializing in producing motors for more than 14 years. A professional R&D team and mature management will bring you a pleasant shopping experience.
2. Strict Quality Control
In order to confirm quality, every step from raw material receipt to shipment is carefully checked. Quality is the basis of our development.
Frequently Asked Questions
QAre you a trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
QWhat is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with MasterCard, Visa, etc. Customers can also pay with PayPal, TT, etc.
QI can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
QDo you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other standard certificates. If you have other specific certificate requirements, we can apply for them for you.
QHow is your Quality Control?
We have professional inspection staff on every production line process. After completing the motor assembly, we use dedicated testing machinery to test the motor, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
QWhat are the main applications of these high-torque coin DC gear motors?
These motors are widely used in smart locks, security locks, micro-drive mechanisms, and other electronic devices requiring compact design and high torque output.
