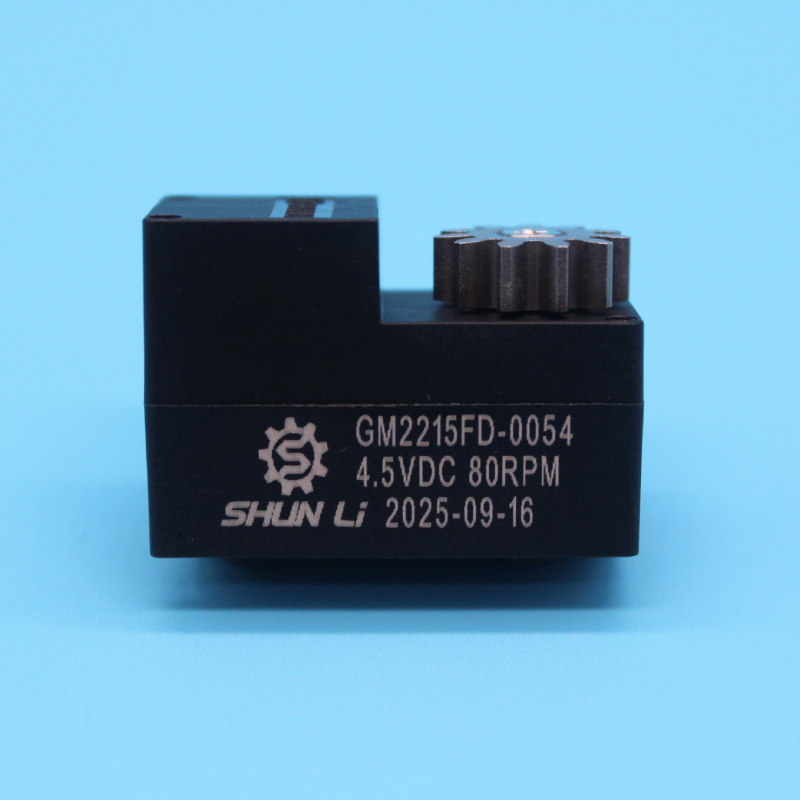

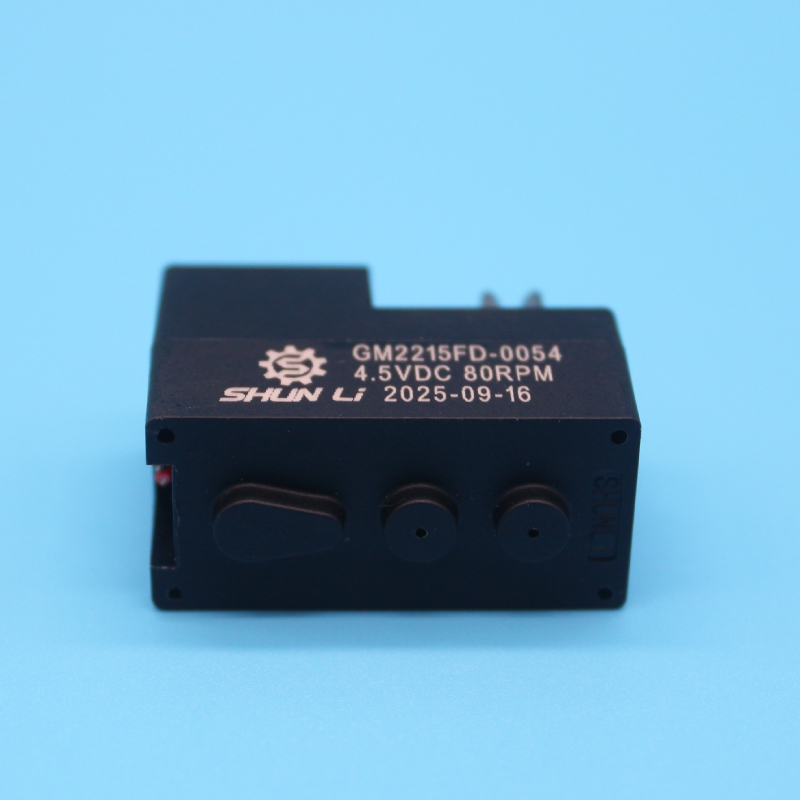

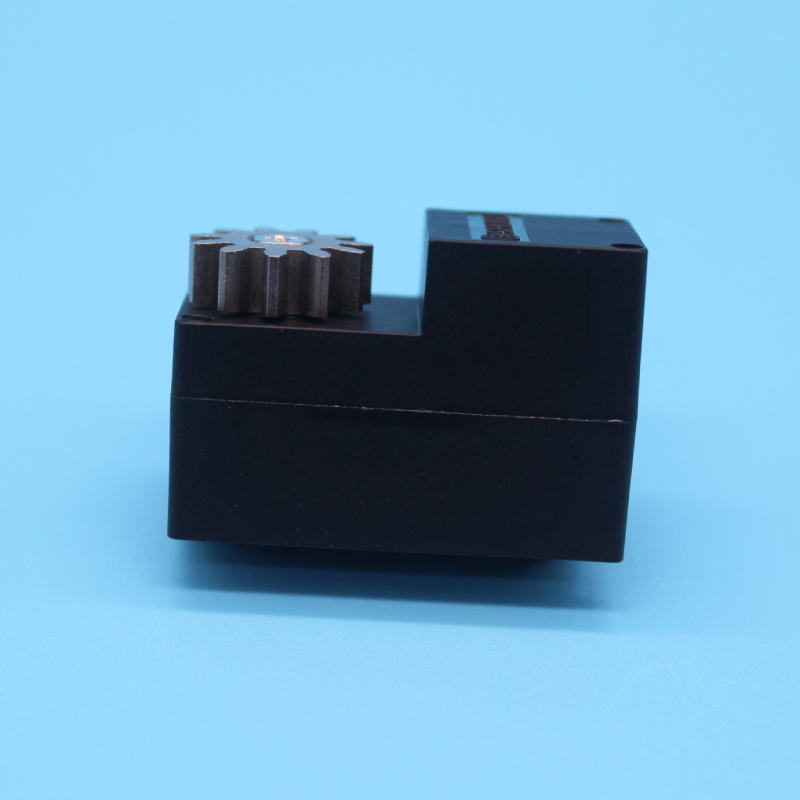

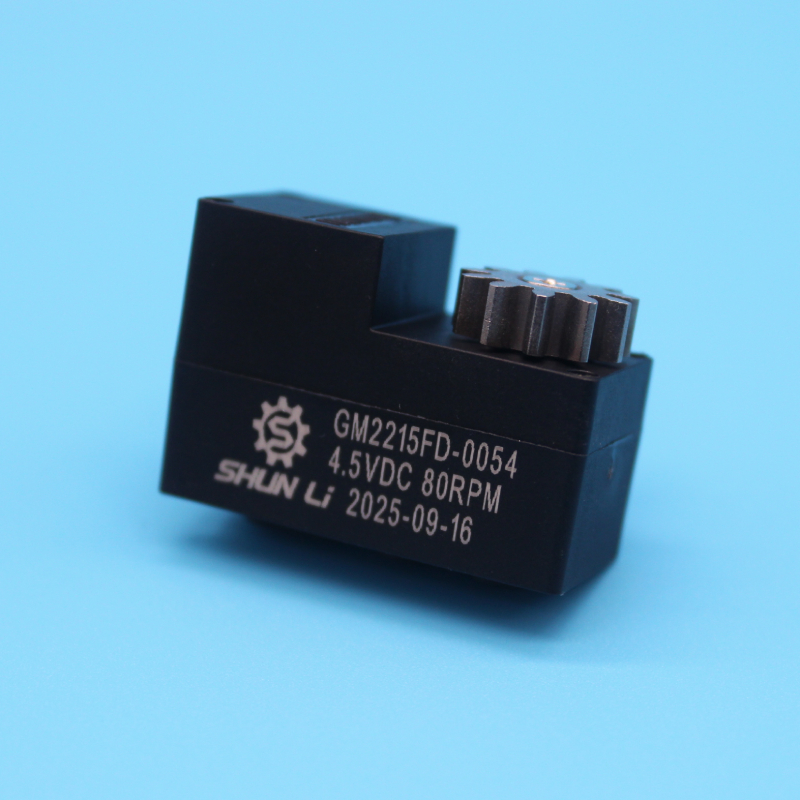

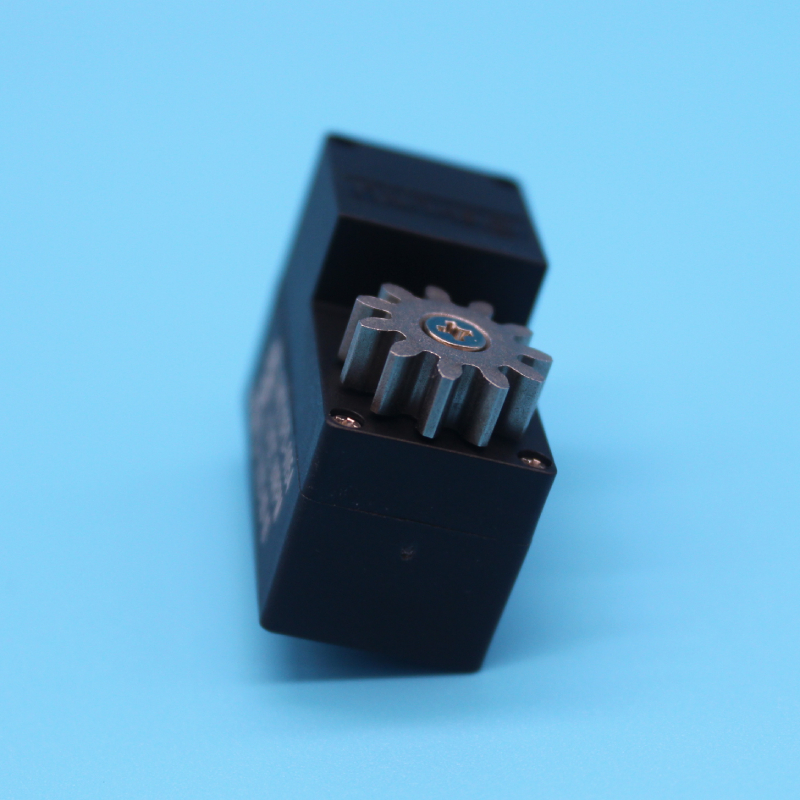

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Product Description
Product Description
2215 Smart Lock Motor Steering Gear | Automatic Door Lock Micro Motor | Gearbox Reduction Motor
Motor Customized Specifications & Drawings
We offer tailored motor solutions to meet your exact mechanical and electrical requirements. Please review the technical engineering drawing below.

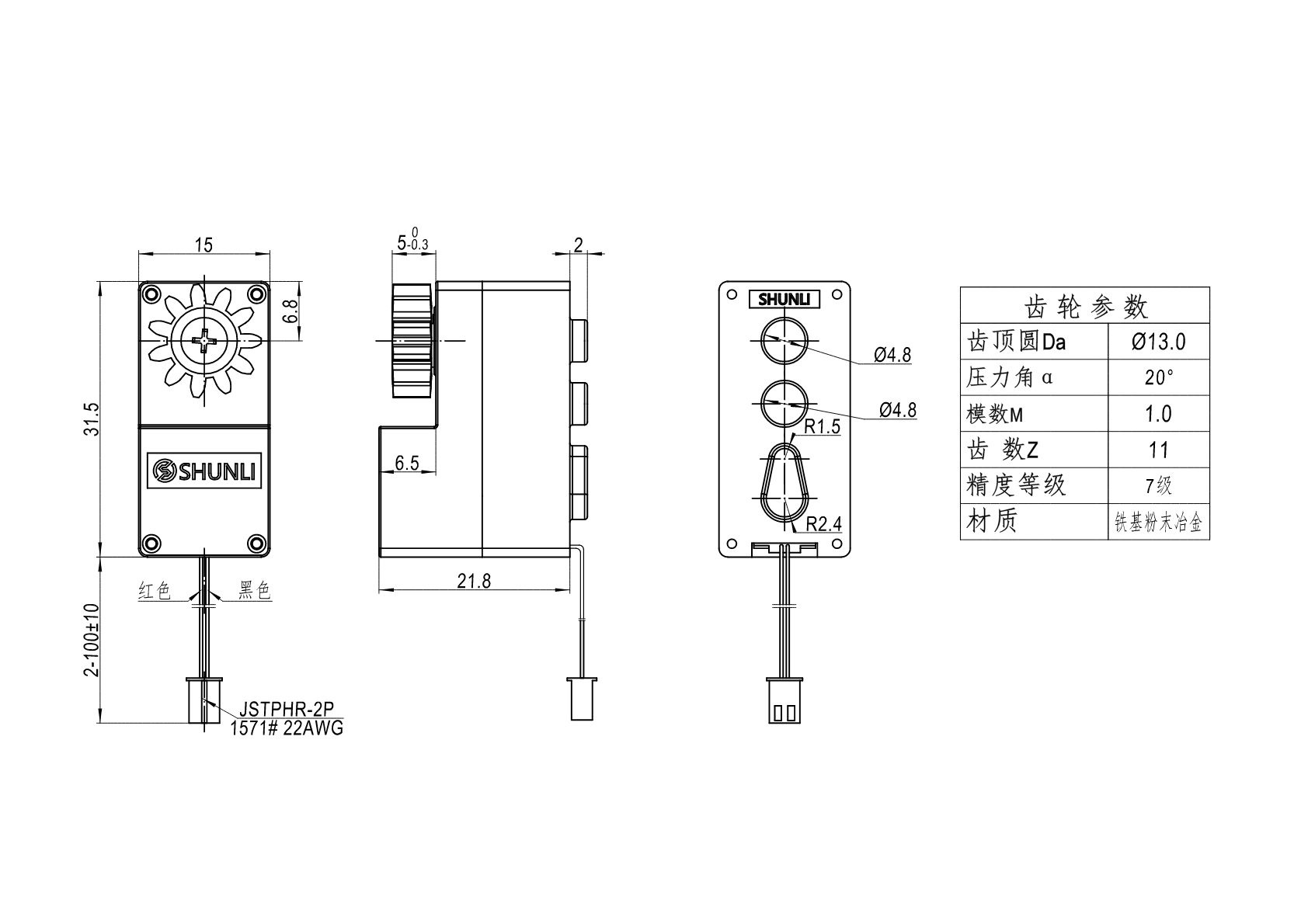

Reference Drawing - GM2215

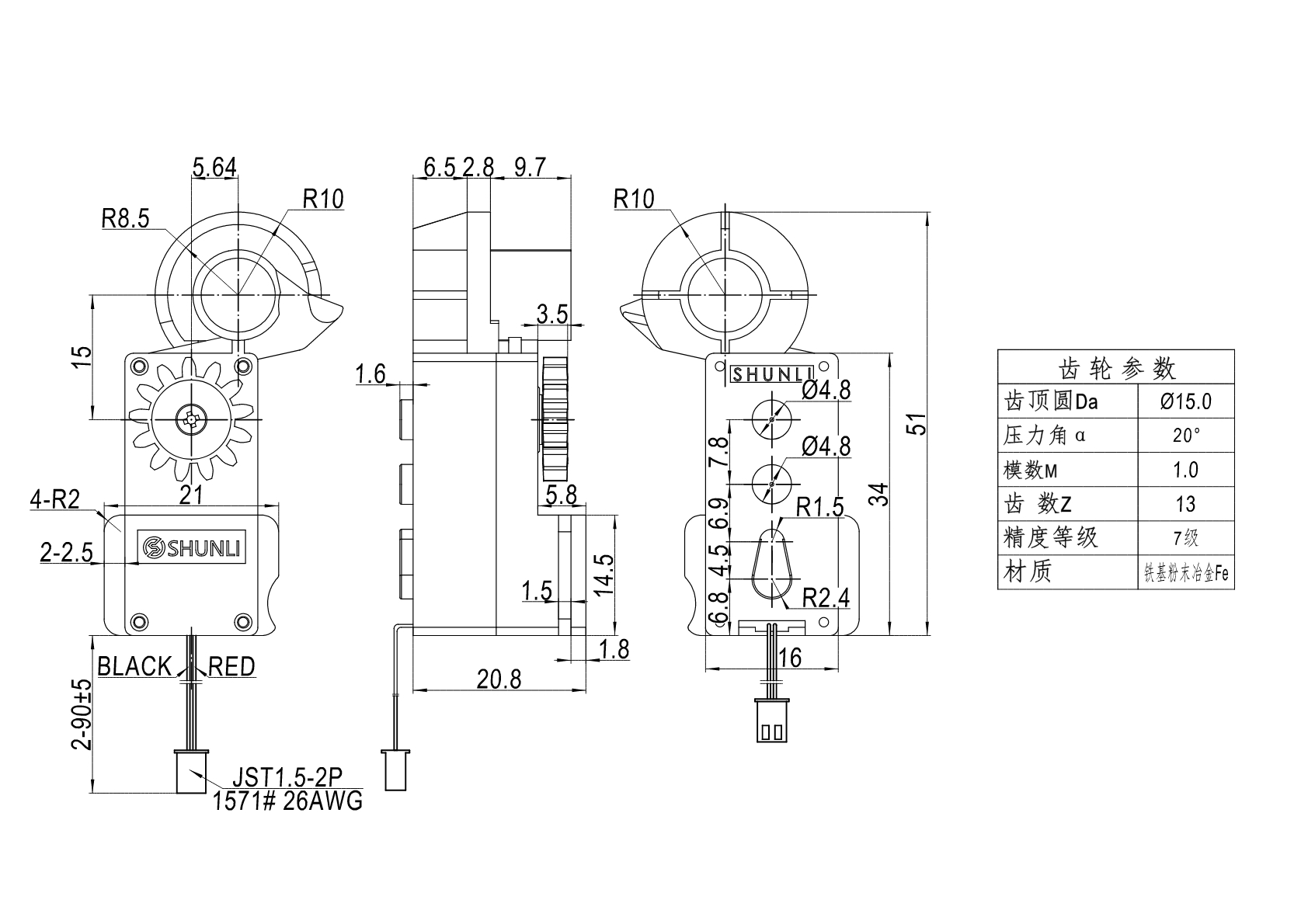

Reference Drawing - GM2219
Reference Datasheet
Gearbox Technical Data
| Parameter | Specification Values |
|---|---|
| Ratio | 199K / 241K / 265K |
| Max. Rated Torque | 1.5 ~ 2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||
| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 | |

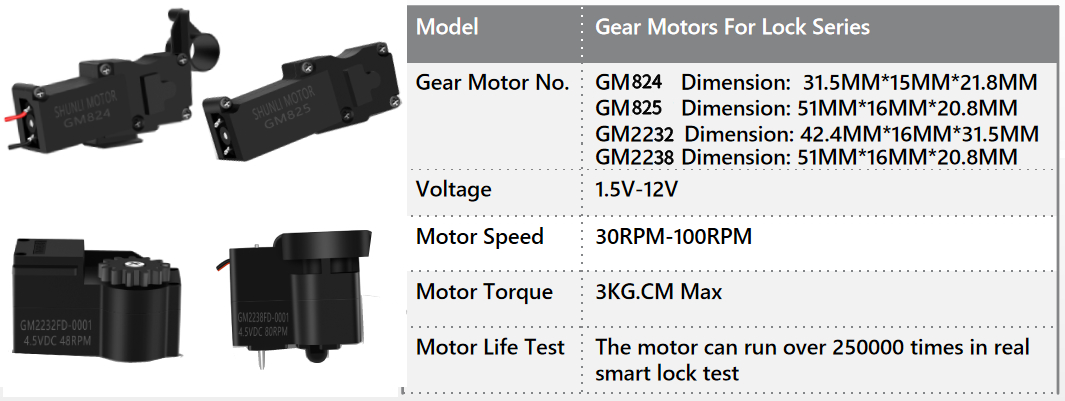

Product Options & Variations

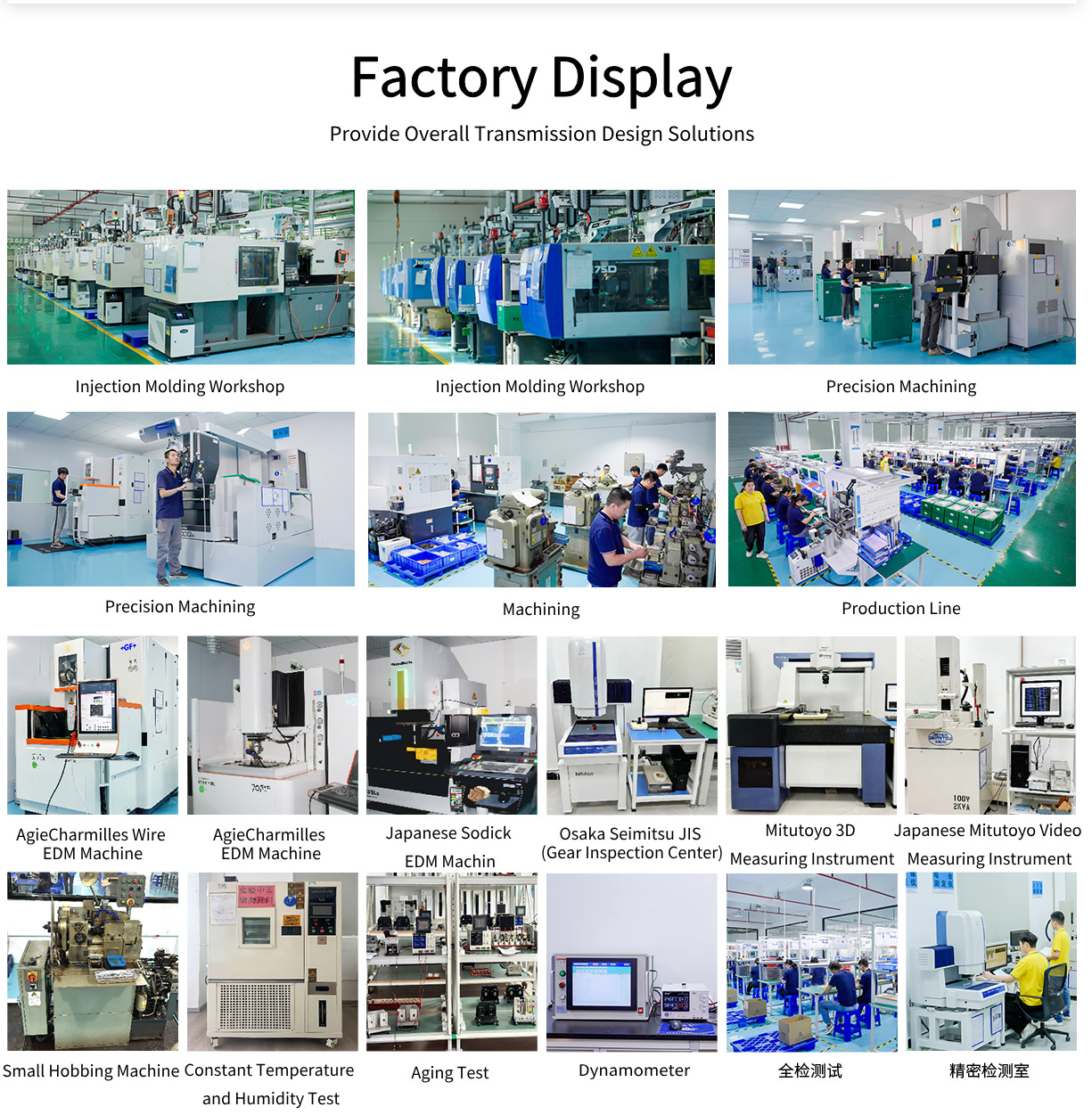

Manufacturing & Quality Assurance
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a specialized manufacturing factory. We have focused on the design and production of micro DC motors and DC gear motors for more than 14 years.
2. What is the standard payment term for new customers?
We offer flexible online secure payments including Master Card, Visa, PayPal, and T/T (Telegraphic Transfer).
3. I cannot find a suitable motor configuration on your website. Can you customize one?
Yes, we provide full custom design services. We can adjust the motor specifications, gearbox configurations, voltage, speed, and torque to align precisely with your application requirements.
4. What certificates do your motors carry?
Our motors comply with major global standards. We hold CE, FCC, ISO, and other relevant certifications, and can apply for specific compliance marks based on customer request.
5. How do you manage product quality control?
We employ specialized quality inspectors along every line of the assembly process. Completed products undergo rigorous mechanical and electrical performance tests using high-precision instruments including Hardness Testers, 2.5D Image Analyzers, Salt Spray Chambers, Life Cycle Simulators, Temperature Chambers, and Decibel Noise Chambers.
6. What is the typical lead time for custom gear motor samples?
Sample lead times depend on standard vs. modified custom configurations. Please reach out to us with your requirements so our engineering team can provide a precise delivery timeline.
