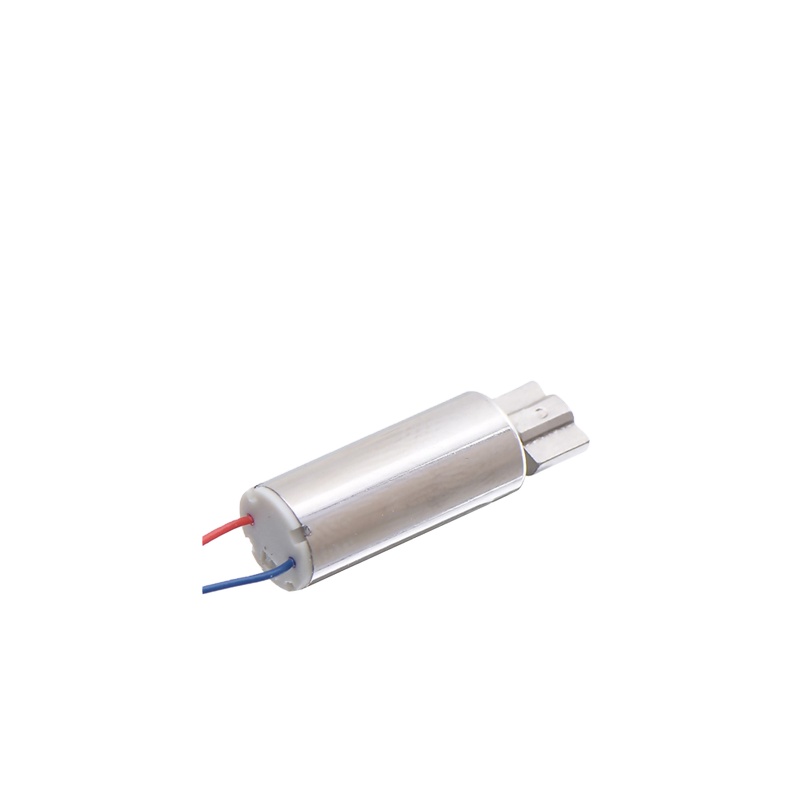

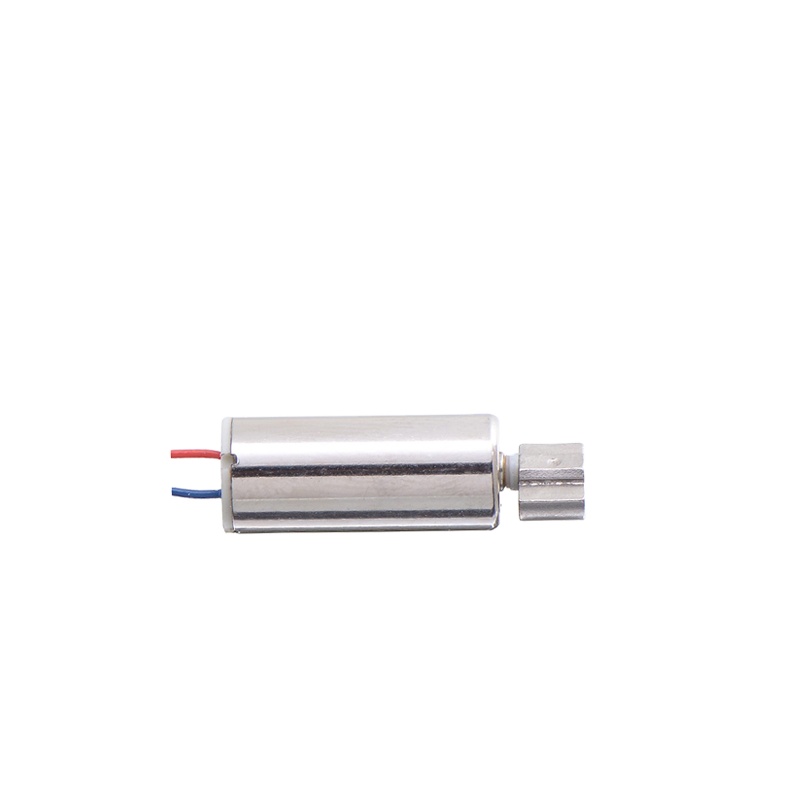

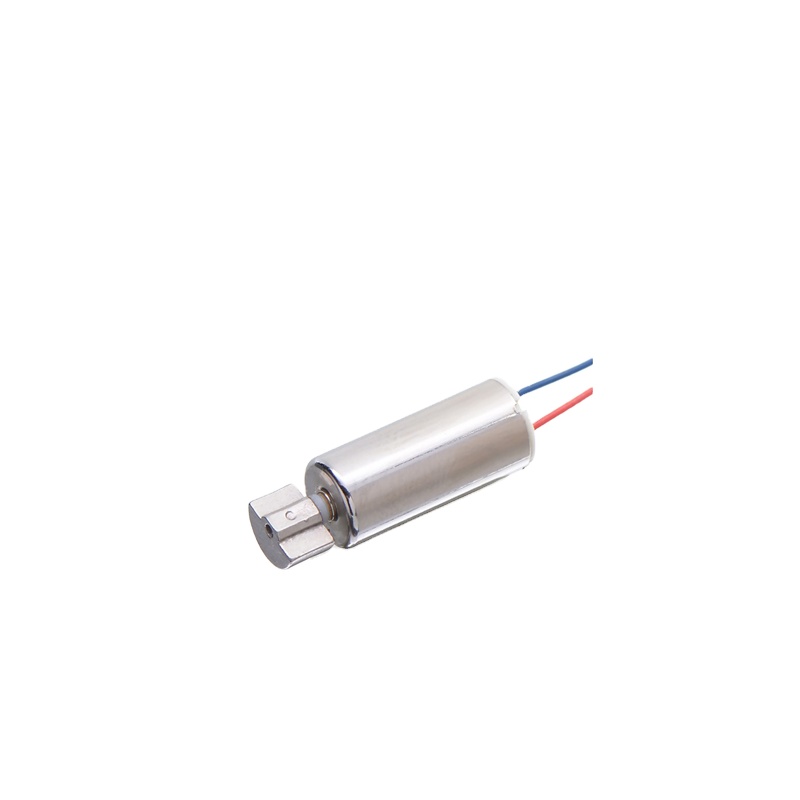

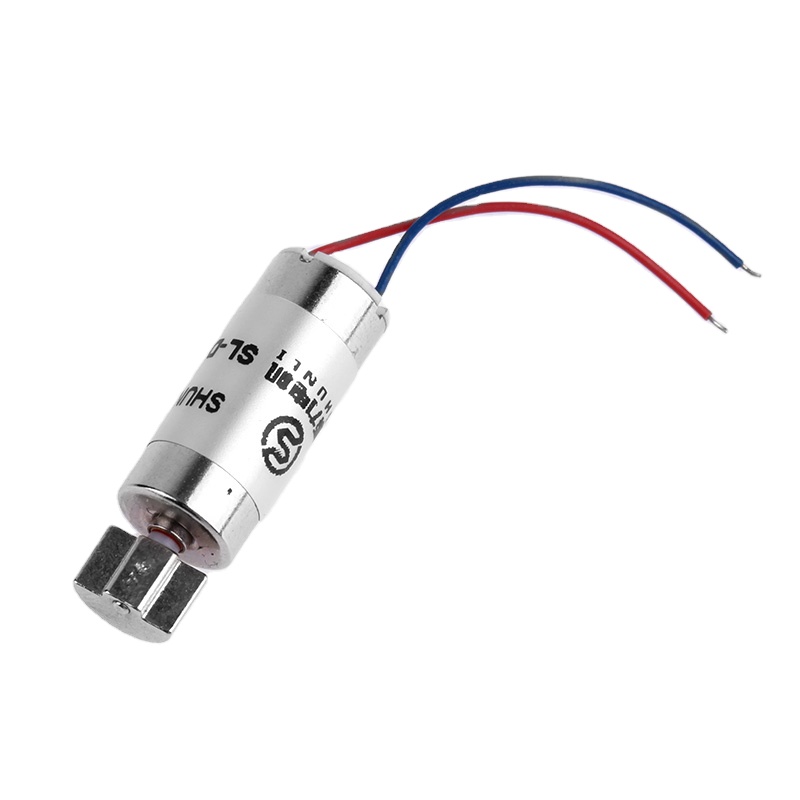

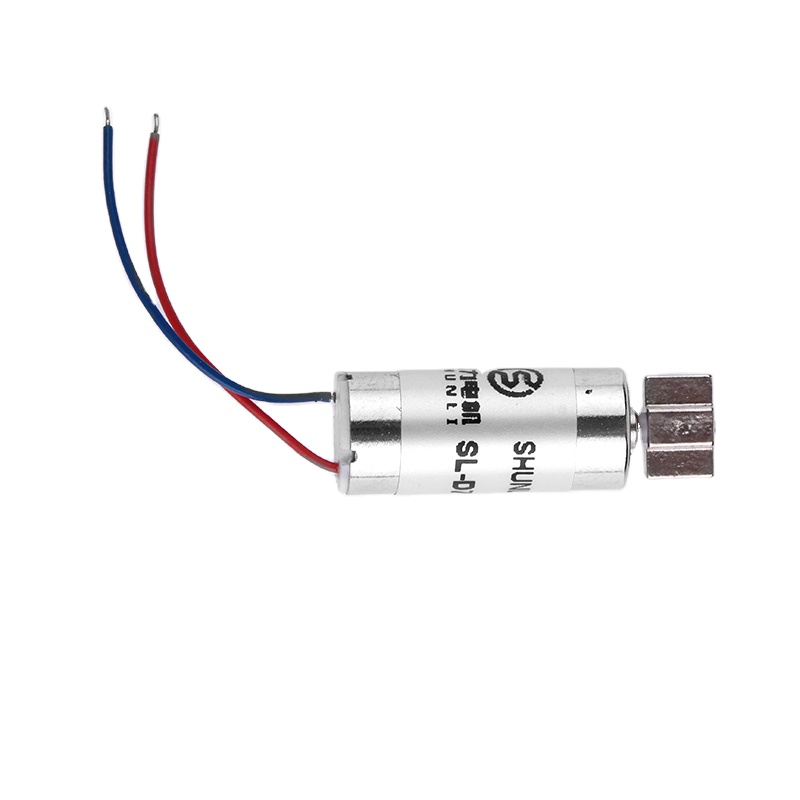

Shunli Custom Small Dc Motor Brush Low Rpm 2.4v 3.7v 5v Dc Electric Mini Vibrator Motor Adult Toy
Product Description
Custom Small DC Motor Brush Low RPM 2.4V 3.7V 5V DC Electric Mini Vibrator Motor Adult Toy
| MODEL | RATED | NO LOAD | RATED | STALL | ||
|---|---|---|---|---|---|---|
| VOLTAGE | SPEED | CURRENT | SPEED | CURRENT | CURRENT | |
| V | r/min | mA | r/min | mA | mA | |
| 0724 | 1.5 | 19900 | 45 | 17600 | 108 | 480 |
| 0724 | 5 | 20000 | 33 | 18500 | 65 | 400 |
| 0724 | 3 | 25300 | 28 | 21300 | 89 | 370 |
Frequently Asked Questions (FAQ)
💡 What voltage options are available for this mini vibrator motor?
This custom small DC motor supports multiple voltage configurations including 1.5V, 2.4V, 3V, 3.7V, and 5V, allowing compatibility with various battery setups and power requirements.
💡 What are the main applications for this mini electric motor?
Designed primarily for compact electronics, it is widely utilized in adult toys, personal massagers, micro beauty equipment, and other small consumer electronics requiring reliable, low RPM vibration.
💡 Can the motor specifications be customized?
Yes, we provide custom specifications tailored to your requirements, including adjustments in voltage range, RPM configurations, shaft length, and the brush material design.
💡 What is the performance range of the 0724 model?
The 0724 model offers an efficient speed profile ranging from 19,900 to 25,300 r/min at no-load settings, and a stable stall current of 370mA to 480mA, ensuring optimized power draw and battery conservation.
💡 What type of motor is this and is it reliable for continuous startup?
It is a brush DC micro vibration motor. It features high start-up torque and cost-effective stability, making it highly reliable for products that require frequent pulse vibration starts.
